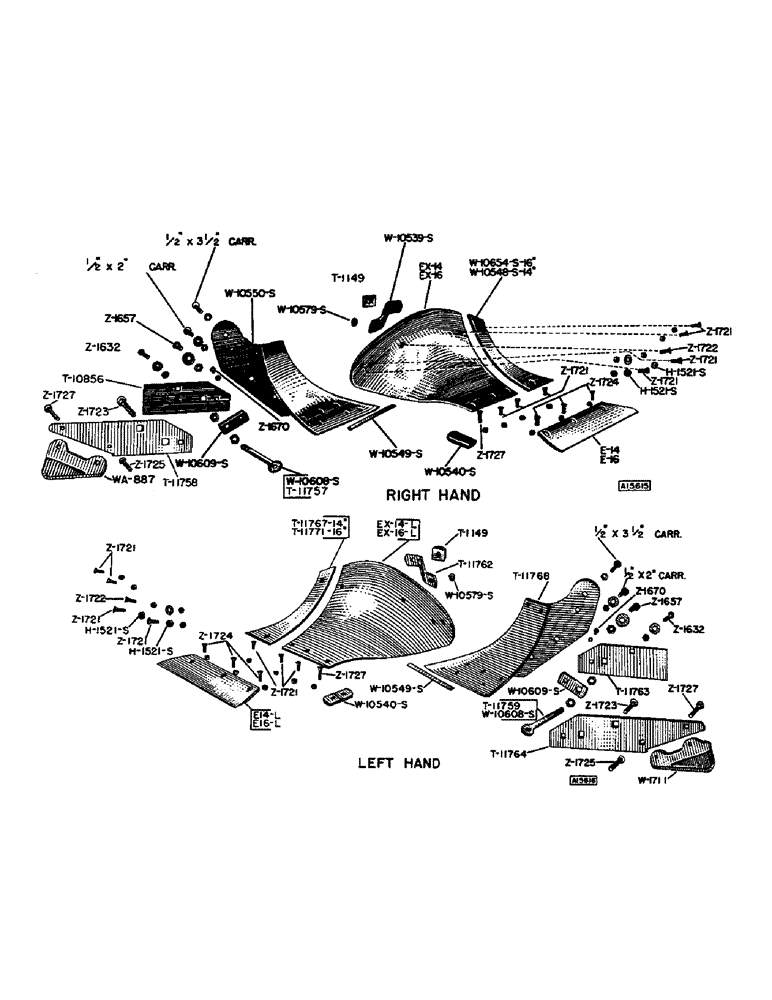

Запчасти Case IH T-SERIES (20) - TEX EAGLE BOTTOMS
№
Артикул
Название
Примечание
Количество
T1149
SPACER - moldboard brace and beam (R.H. 14" & 16" and L.H. 14" & 16"
2шт.
T10856
LANDSIDE - short (4" x 3/8" x 11") (R.H. 14" & 16")
1шт.
5/8" x2-1/2" P#3 plow bolt w/hex nut (See Z1657) (R.H. 14" & 16")
2шт.
1/2" x2-3/4" P#3 plow bolt w/hex nut (See Z1632) (R.H. 14" & 16")
1шт.
3/8" x 1-1/4" P#3 plow bolt w/hex nut (See Z1670) (R.H. 14" & 16")
1шт.
T11757
BRACE - moldboard, long (3/4" rd. x 12") (R.H. 14" & 16")
1шт.
5/8" N.C. hex jam nut (R.H. 14" & 16")
1шт.
T11758
LANDSIDE - long (4" x 1/2" x 20-3/8") w/WA887 heel (R.H. 14" & 16")
1шт.
5/8" x 2-1/2" P#3 plow bolt w/hex nut (See Z1657) (R.H. 14" & 16")
1шт.
1/2" x 2-1/2" P#3 plow bolt w/hex nut (See Z1723) (R.H. 14" & 16")
1шт.
3/8" x 1-1/4" P#3 plow bolt w/hex nut (See Z1670) (R.H. 14" & 16")
1шт.
3/8" x 1-1/2" P#3 plow bolt w/lockwasher & hex nut (See Z1727) (R.H. 14" & 16")
1шт.
3/8" x 2" P#3 plow bolt w/lockwasher & hex nut (See Z1725) (R.H. 14" & 16")
1шт.
T11759
BRACE - moldboard, long (3/4" rd. x 12") (L.H. 14" & 16")
1шт.
5/8" N.C. hex jam nut (L.H. 14" & 16")
1шт.
T11762
BRACE - moldboard, L.H. (1-1/2" x 3/8" x 12-5/8") (L.H. 14" & 16")
2шт.
T11763
LANDSIDE - short, L.H. (4" x 3/8" x 11") (L.H. 14" & 16")
1шт.
5/8" x 2-1/2" P#3 plow bolt w/hex nut (See Z1657) (L.H. 14" & 16")
1шт.
1/2" x 2-3/4" P#3 plow bolt w/hex nut (See Z1632) (L.H. 14" & 16")
1шт.
3/8" x 1-1/4" P#3 plow bolt w/hex nut (See Z1670) (L.H. 14" & 16")
1шт.
T11764
LANDSIDE - long, L.H. (4" x 1/2" x 20-3/8") w/W1711 heel (L.H. 14" & 16")
1шт.
5/8" x 2-1/2" P#3 plow bolt w/hex nut (See Z1657) (L.H. 14" & 16")
1шт.
1/2" x 2-1/2" P#3 plow bolt w/hex nut (See Z1723) (L.H. 14" & 16")
1шт.
3/8" x 1-1/4" P#3 plow bolt w/hex nut (See Z1670) (L.H. 14" & 16")
1шт.
3/8" x 1-1/2" P#3 plow bolt w/lockwasher & hex nut (See Z1727) (L.H. 14" & 16")
1шт.
3/8" x 2" P#3 plow bolt w/lockwasher & hex nut (See Z1725) (L.H. 14" & 16")
1шт.
T11767
SHIN PIECE - 14" L.H. moldboard
2шт.
3/8" x 1" P#3 plow bolt w/nut (See Z1721) (L.H. 14")
4шт.
T11768
FROG - L.H. (14" & 16")
2шт.
1/2" x 2" cge. bolt w/hex nut (L.H. 14" & 16")
2шт.
1/2" x 3-1/2" cge. bolt w/hex nut (L.H. 14" & 16")
2шт.
T11771
SHIN PIECE - 16" L.H. moldboard
2шт.
3/8" x 1" P#3 plow bolt w/nut (See Z1721) (L.H. 16")
4шт.
H1521S
BUSHING
SPACER - moldboard extension bolt (3/8" pipe x 5/16") (R.H. 14" & 16", L.H. 14" & 16")
2шт.
WA887
HEEL
- long landside (R.H. 14" & 16")
1шт.
W1711
HEEL
- long L.H. landside (14" & 16")
1шт.
W10539S
BRACE - moldboard (1-1/2" x 3/8" x 12-5/8") (R.H. 14" & 16")
2шт.
W10540S
X
STRAP - moldboard and share (1-1/2" x 3/8" x 4-1/16") (R.H. 14" & 16", L.H. 14" & 16")
2шт.
W10548S
X
SHIN PIECE - 14" R.H. moldboard
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (R.H. 14")
4шт.
W10549S
SHIM - moldboard (Paper gasket - 1/2" x 1/16" x 11") (R.H. 14" & 16", L.H. 14" & 16")
4шт.
W10550S
FROG
- (R.H. 14" & 16")
2шт.
1/2" x 2" cge. bolt w/lockwasher and hex nut (R.H. 14" & 16")
2шт.
1/2" x 3-1/2" cge. bolt w/lockwasher and hex nut (R.H. 14" & 16")
2шт.
W10579S
WASHER - serrated (1-1/8" x 1/2" x #7) (R.H. 14" & 16", L.H. 14" & 16")
3шт.
W10608S
BRACE - moldboard, short (5/8" rd. x 9-1/2") (R.H. 14" & 16", L.H. 14" & 16")
1шт.
5/8" N.C. hex jam nut (R.H. 14" & 16", L.H. 14" & 16")
1шт.
W10609S
CLIP - short round moldboard brace (1-1/2" x 1/2" x 4") (R.H. 14" & 16", L.H. 14" & 16")
1шт.
W10654S
X
SHIN PIECE - 16" R.H. moldboard
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (R.H. 16")
4шт.
Z1632
BOLT - plow (1/2" x 2-3/4" P#3 w/N.C. hex nut) (R.H. 14" & 16", L.H. 14" & 16")
1шт.
Z1657
BOLT
- plow (5/8" x 2-1/2" P#3 w/N.C. hex nut (R.H. 14" & 16", L.H. 14" & 16")
2шт.
Z1670
BOLT - plow (3/8" x 1-1/4" P#3 w/N.C. hex nut) (R.H. 14" & 16", L.H. 14" & 16")
2шт.
Z1721
BOLT - plow (3/8" x 1" P#3 w/N.C. hex nut (R.H. 14" & 16", L.H. 14" & 16")
14шт.
Z1722
BOLT - plow (3/8" x 1-1/8" P#3 w/N.C. hex nut) (R.H. 14" & 16", L.H. 14" & 16")
2шт.
Z1723
X
BOLT - plow (1/2" x 2-1/2" P#3 w/N.C. hex nut) (R.H. 14" & 16", L.H. 14" & 16")
1шт.
Z1724
X
BOLT - plow (3/8" x 1-1/8" P#3 H.T. w/L.H.N.C. hex nut (R.H. 14" & 16", L.H. 14" & 16")
6шт.
Z1725
BOLT
- plow (3/8" x 2" P#3 w/N.c. hex nut) (R.H. 14" & 16", L.H. 14" & 16")
1шт.
Z1727
BOLT - plow (3/8" x 1-1/2" P#3 w/N.C. hex nut (R.H. 14" & 16", L.H. 14" & 16")
3шт.
E14
SHARE
- 14", R.H.
2шт.
3/8" x 1-1/8" P#3 H.T. plow bolt w/L.H.N.C. hex nut (See Z1724) (R.H. 14")
6шт.
E14L
SHARE - 14", L.H.
2шт.
3/8" x 1-1/8" P#3 H.T. plow bolt w/L.H.N.C. hex nut (See Z1724) (L.H. 14")
6шт.
E16
SHARE
- 16", R.H.
2шт.
3/8" x 1-1/8" P#3 H.T. plow bolt w/L.H.N.C. hex nut (See Z1724) (R.H. 16")
6шт.
E16L
SHARE
- 16", L.H.
2шт.
3/8" x 1-1/8" P#3 H.T. plow bolt w/L.H.N.C. hex nut (See Z1724) (L.H. 16")
6шт.
EX14
MOLDBOARD
- 14", R.H.
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (R.H. 14")
10шт.
3/8" x 1-1/8" P#3 plow bolt w/hex nut (See Z1722) (R.H. 14")
2шт.
3/8" x 1-1/2" P#3 plow bolt w/hex nut (See Z1727) (R.H. 14")
2шт.
1" x 7/16" x #16 ga. wrot washer (R.H. 14")
4шт.
1" x 7/16" x #14 ga. wrot washer (R.H. 14")
2шт.
EX14L
MOLDBOARD - 14", L.H.
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (L.H. 14")
10шт.
3/8" x 1-1/8" P#3 plow bolt w/hex nut (See Z1722) (L.H. 14")
2шт.
3/8" x 1-1/2" P#3 plow bolt w/hex nut (See Z1727) (L.H. 14")
2шт.
1" x 7/16" x #16 wrot washer (L.H. 14")
4шт.
1" x 7/16" x #14 wrot washer (L.H. 14")
2шт.
EX16
MOLDBOARD
- 16", R.H.
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (R.H. 16")
10шт.
3/8" x 1-1/8" P#3 plow bolt w/hex nut (See Z1722) (R.H. 16")
2шт.
3/8" x 1-1/2" P#3 plow bolt w/hex nut (See Z1727) (R.H. 16")
2шт.
1" x 7/16" x #16 wrot washer (R.H. 16")
4шт.
1" x 7/16" x #14 wrot washer (R.H. 16")
2шт.
EX16L
MOLDBOARD
- 16", L.H.
2шт.
3/8" x 1" P#3 plow bolt w/hex nut (See Z1721) (L.H. 16")
10шт.
3/8" x 1-1/8" P#3 plow bolt w/hex nut (See Z1722) (L.H. 16")
2шт.
3/8" x 1-1/2" P#3 plow bolt w/hex nut (See Z1727) (L.H. 16")
2шт.
1" x 7/16" x #16 wrot washer (L.H. 16")
4шт.
1" x 7/16" x #14 wrot washer (L.H. 16")
2шт.
Выбрано товаров: 91
