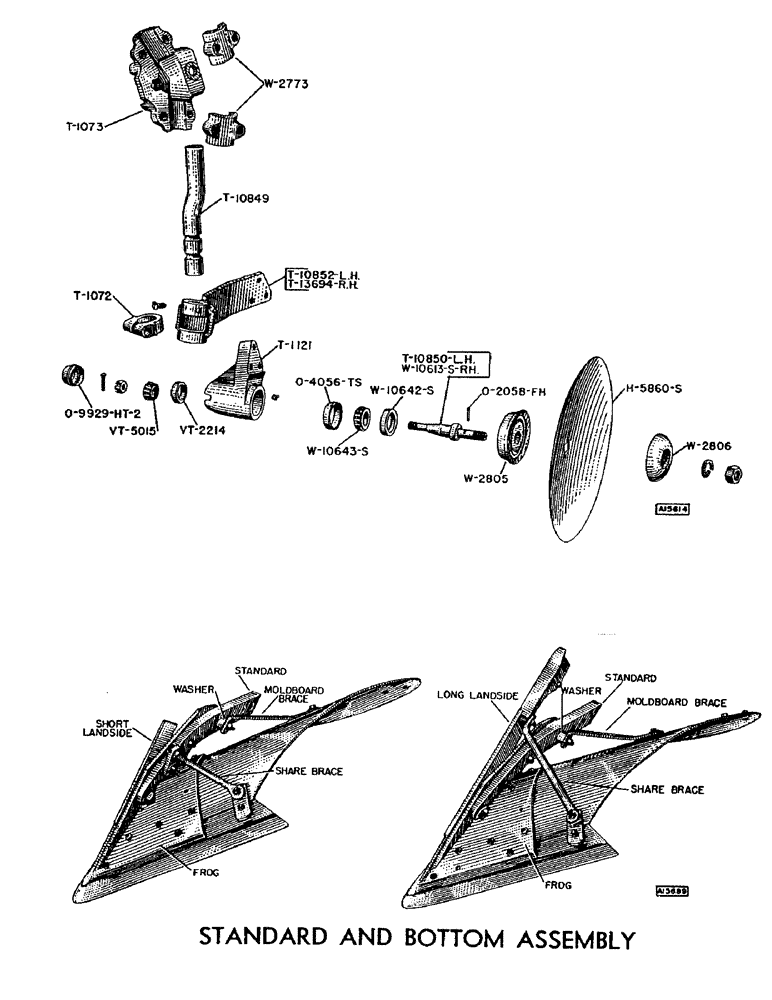

Запчасти Case IH T-SERIES (18) - REAR CONCAVE DISK COULTER

T1072

CLAMP - pivot, arm (Yr. 55-)

2шт.

5/8" x 3-1/2" hex bolt w/nut

2шт.

T1073

BRACKET - rear coulter (Yr. 55-)

1шт.

5/8" x 3-1/4" hex bolt w/lockwasher and nut

4шт.

5/8" x 3-1/2" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 4" hex bolt w/lockwasher and nut (T24)

1шт.

5/8" x 5-1/2" hex bolt w/lockwasher and nut (T26 & T28)

1шт.

3/4" x 6" hex bolt w/lockwasher and nut (T26 & T28)

1шт.

T1121

HOUSING - bearing, w/bearing cups O4056TS & VT2214 (Yr. 55-)

2шт.

T10849

STANDARD - coulter (1-1/2" rd. x 11-1/8") (Yr. 55-)

2шт.

T10850

SPINDLE - bearing, L.H. (1-1/2" rd. x 7-1/2") (Yr. 55-)

1шт.

3/4" N.C. hex slotted nut

1шт.

3/16" x 1" cotter pin

1шт.

7/8" lockwasher

1шт.

7/8" N.C., L.H. hex nut

1шт.

T10852

ARM - coulter, L.H. (Yr. 55-)

1шт.

1/2" x 2-1/2" hex bolt w/lockwasher and nut

3шт.

1/2" x 3/4" C.P. set screw

2шт.

T13694

ARM - coulter, R.H. (Yr. 55-)

1шт.

1/2" x 2-1/2" hex bolt w/lockwasher and nut

3шт.

1/2" x 3/4" C.P. set screw

2шт.

VT2214

X

CUP - bearing, outer (Timken #O9195) (Yr. 55-)

2шт.

VT5015

X

CONE - bearing, outer (Timken #O9067) (Yr. 55-)

2шт.

O2058FH

X

ROLL PIN - spindle (7/32" x 1-1/8") (Yr. 55-)

2шт.

O9929HT2

X

CAP - housing, bearing (Yr. 55-)

2шт.

O4056TS

CUP

- bearing, inner (Timken #15250) (Yr. 55-)

2шт.
