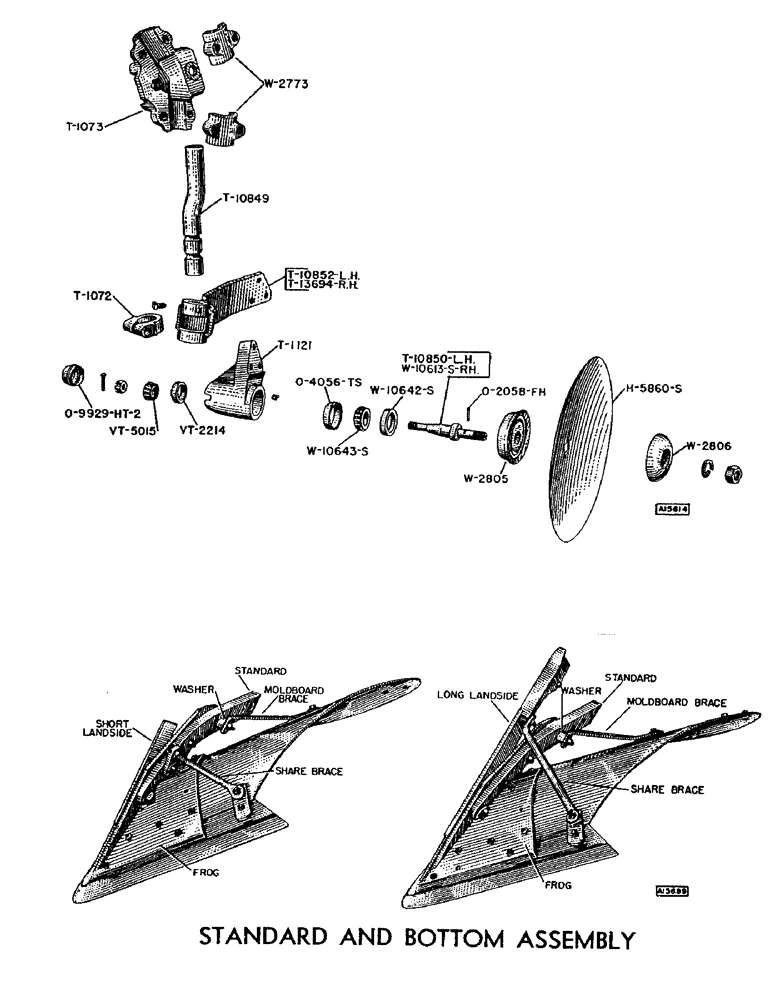

Запчасти Case IH T-SERIES (18[1]) - REAR CONCAVE DISK COULTER STANDARD AND BOTTOM ASSEMBLY

H5860S

DISC

DISK - 16", 9 ga. (Yr. 55-)

2шт.

W2773

CLAMP - standard (Yr. 55-)

2шт.

W2805

HOLDER - disk, concave (Yr. 55-)

2шт.

W2806

WASHER - outside (Yr. 55-)

2шт.

W10613S

SPINDLE - bearing, R.H. (1-1/2" rd. x 7-1/2") (Yr. 55-)

1шт.

3/4" N.C. hex slotted nut

1шт.

3/16" x 1" cotter pin

1шт.

7/8" lockwasher

1шт.

7/8" N.C. hex nut

1шт.

W10642S

SEAL

- bearing, housing (Yr. 55-)

2шт.

W10643S

BEARING, CONE

CONE - bearing, inner (Timken #15112) (Yr. 55-)

2шт.
