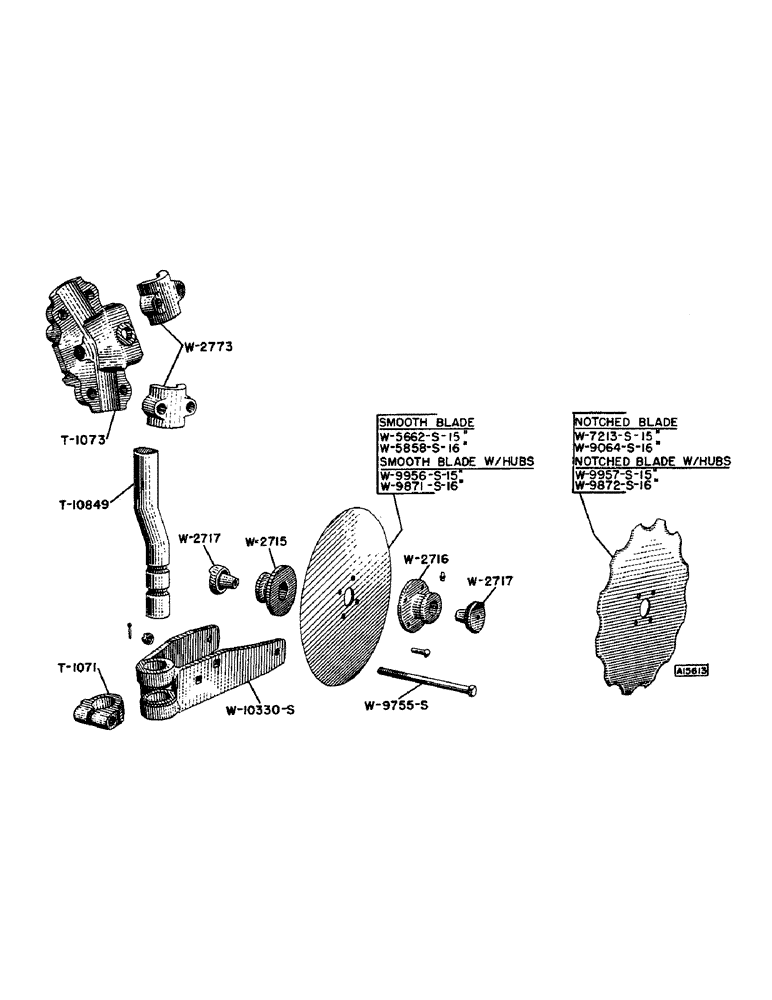

Запчасти Case IH T-SERIES (17) - REAR ROLLING COULTERS

T1071

CLAMP - pivot, yoke (Yr. 55-)

2шт.

5/8" x 3-1/2" hex bolt w/nut

2шт.

T1073

BRACKET - rear coulter (Yr. 55-)

1шт.

5/8" x 3-1/4" hex bolt w/lockwasher and nut

4шт.

5/8" x 3-1/2" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 4" hex bolt w/lockwasher and nut (T24)

1шт.

5/8" x 5-1/2" hex bolt w/lockwasher and nut (T26 & T28)

1шт.

3/4" x 6" hex bolt w/lockwasher and nut (T26 & T28)

1шт.

T10849

STANDARD - (1-1/2" rd. x 11-1/8") (Yr. 55-)

2шт.

W2715

HUB - plain (Yr. 55-)

2шт.

3/8" x 1-3/8" rd. head rivet

8шт.

W2716

HUB - drilled (Yr. 55-)

2шт.

1/8" straight Lincoln fitting #5000

2шт.

W2717

CONE - coulter hub (Yr. 55-)

4шт.

W2773

CLAMP - standard (Yr. 55-)

2шт.

W5662S

BLADE - smooth, 15" (Yr. 55-)

2шт.

W5858S

BLADE

- smooth, 16" (yr. 55-)

2шт.

W7213S

BLADE - notched, 15" (Yr. 55-)

2шт.

W9064S

BLADE - notched, 16" (Yr. 55-)

2шт.

W9755S

BOLT - yoke and hub (1/2" x 7" drilled hex N.F.) (Yr. 55-)

2шт.

1/2" N.F. hex slotted nut

2шт.

1/8" x 1" cotter pin

2шт.

W9871S

BLADE - smooth, 16" cpt. w/hubs (Yr. 55-)

2шт.

W9872S

BLADE - notched, 16" cpt. w/hubs (Yr. 55-)

2шт.

W9956S

BLADE - smooth, 15" cpt. w/hubs (Yr. 55-)

2шт.

W9957S

BLADE - notched, 15" cpt. w/hubs (Yr. 55-)

2шт.

W10330S

YOKE - coulter (Yr. 55-)

2шт.
