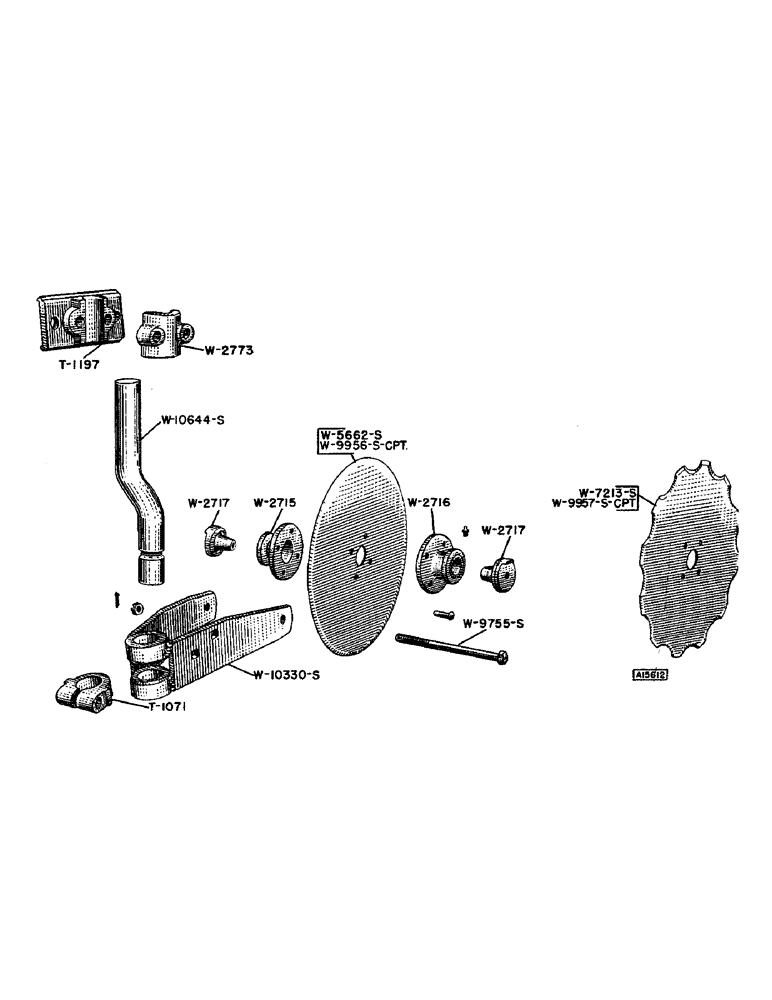

Запчасти Case IH T-SERIES (16) - FRONT 15 INCH ROLLING COULTER

T1070

SHIM - coulter clamp (Used only w/WA2355) (Yr. 55)

1шт.

T1071

CLAMP - pivot, yoke (Yr. 55-)

1шт.

T1197

BRACKET - front coulter (Yr. 56-)

1шт.

5/8" x 2-1/2" hex bolt w/lockwasher and nut (To clamp)

2шт.

5/8" x 2-3/4" hex bolt w/lockwasher and nut (To beam)

2шт.

T10848

STANDARD - (1-1/2" rd. x 12-1/2") use W10644S (Yr. 55-57)

1шт.

WA1275

CAP - coulter clamp (Use T1197 and W2773) (Yr. 55)

1шт.

WA2355

CLAMP - beam, coulter (Use T1197 and W2773) (Yr. 55)

1шт.

1/2" x 3" hex bolt w/lockwasher and nut

2шт.

5/8" x 3" hex bolt w/lockwasher and nut

2шт.

W2715

HUB - plain (Yr. 55-)

1шт.

3/8" x 1-3/8" rd. hd. rivet

4шт.

W2716

HUB - drilled (Yr. 55-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

W2717

CONE - coulter hub (Yr. 55-)

2шт.

W2773

CAP - coulter bracket (Yr. 56-)

1шт.

W5662S

BLADE - smooth, 15" (Yr. 55-)

1шт.

W7213S

BLADE - notched, 15" (Yr. 55-)

1шт.

W9755S

BOLT - yoke and hub (1/2" x 7" drilled hex N.F.) (Yr. 55-)

1шт.

1/2" N.F. hex slotted nut

1шт.

1/8" x 1" cotter pin

1шт.

W9956S

BLADE - smooth, 15" cpt. w/hubs (Yr. 55-)

1шт.

W9957S

BLADE - notched, 15" cpt. w/hubs (Yr. 55-)

1шт.

W10330S

YOKE - coulter (Yr. 55-)

1шт.

W10644S

STANDARD - (1-1/2" rd. x 18-1/8") (Yr. 57-)

1шт.
