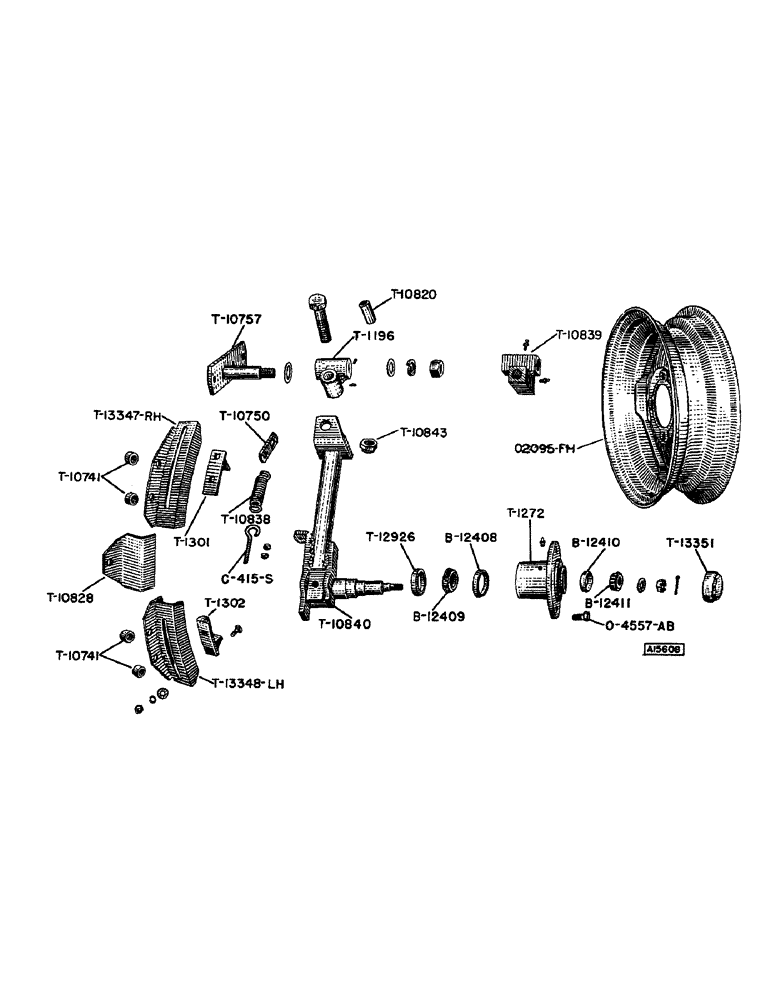

Запчасти Case IH T-SERIES (13) - GAUGE WHEEL ASSEMBLY, 1955 TO 1957

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner hub (Timken #LM67010) (Yr. 55-57)

1шт.

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner hub (Timken #LM67048) (Yr. 55-57)

1шт.

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer hub (Timken #LM11910) (Yr. 55-57)

1шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer hub (Timken #LM11949) (Yr. 55-57)

1шт.

T1067

HUB - gauge wheel (Use T1272) (Yr. 55-56)

1шт.

T1068

STOP - adjusting, gauge wheel, R.H. (Use T1301) (Yr. 55-57)

1шт.

1/2" x 1-1/2" cge. bolt w/lockwasher and nut

2шт.

1-1/4" x 9/16" x #14 wrot washer

2шт.

T1069

STOP - adjusting, gauge wheel, L.H. (Use T1302) (Yr. 55-57)

1шт.

1/2" x 1-1/2" cge. bolt w/lockwasher and nut

2шт.

1-1/4" x 9/16" x #14 wrot washer

2шт.

T1196

BLOCK - pivot, gauge wheel (Use T10839) (Yr. 56)

1шт.

T1272

HUB - gauge wheel, w/bearing cups B12408 & B12410 (Yr. 57)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

T10741

SPACER - gauge wheel guide (1-1/4" rd. x 3/4") (Yr. 55-57)

4шт.

T10750

CLIP - spring, gauge wheel (1-1/4" x 1/4" x 3-1/4") (Yr. 55-57)

1шт.

3/4" x 3-1/4" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 5-1/4" hex bolt w/lockwasher and nut (T26)

1шт.

T10757

BRACKET AND PIVOT - gauge wheel (Yr. 55-57)

1шт.

5/8" x 3" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 3" hex bolt w/lockwasher and nut (T24)

1шт.

5/8" x 5" hex bolt w/lockwasher and nut (T26)

1шт.

3/4" x 5" hex bolt w/lockwasher and nut (T26)

1шт.

1-3/4" x 1-1/16" x #16 wrot washer

1шт.

1-7/8" x 1-5/16" x #16 wrot washer

1шт.

1" lockwasher and N.F. hex nut

1шт.

T10820

BUSHING - pivot block (1" rd. x 3-9/16") not needed when 1" bolt is used (Yr. 55)

1шт.

T10828

PLATE - extension, gauge wheel (6" x 1/4" x 7-7/8") (Yr. 55-57)

1шт.

3/4" x 4-1/4" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 6-1/4" hex bolt w/lockwasher and nut (T26)

1шт.

T10837

SEAL - wheel hub (Use T12926) (Yr. 55)

1шт.

T10838

SPRING - lock, gauge wheel (11/16" I.D. x 21/64" O.D. x 4-1/2" long, 18 coils, pull) (Yr. 55-57)

1шт.

T10839

BLOCK - pivot (Yr. 55-57)

1шт.

1/4" straight Lincoln fitting #5042

2шт.

T10840

ARM AND AXLE - gauge wheel (Yr. 55-57)

1шт.

1" x 4-1/2" hex bolt w/N.F. locknut

1шт.

1-1/2" x 11/16" x #14 wrot washer

1шт.

1-1/4" x 21/32" x #12 wrot washer

1шт.

5/8" N.C. hex slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

T10841

GUIDE - gauge wheel, R.H. (Use T13347) (Yr. 55-56)

1шт.

T10842

GUIDE - gauge wheel, L.H. (Use T13348) (Yr. 55-56)

1шт.

T10843

LOCKNUT - arm and pivot block bolt (1" N.F.) (Yr. 56-57)

1шт.

T12926

SEAL - grease (Yr. 56-57)

1шт.

T13347

GUIDE - gauge wheel, R.H. (Yr. 57)

1шт.

3/4" x 4" hex bolt w/lockwasher and nut

2шт.

T13348

GUIDE - gauge wheel, L.H. (Yr. 57)

1шт.

3/4" x 4" hex bolt w/lockwasher and nut

2шт.

T13351

CAP - hub (Yr. 55-57)

1шт.

O4557AB

BOLT - wheel (Yr. 55-57)

4шт.

O2095FH

WHEEL - pneumatic tire (5.90 x 15) (Yr. 55-57)

1шт.

C415S

EYEBOLT - spring (3/8" rd. x 5-1/4") (Yr. 55-57)

1шт.

3/8" N.C. hex nut

2шт.
