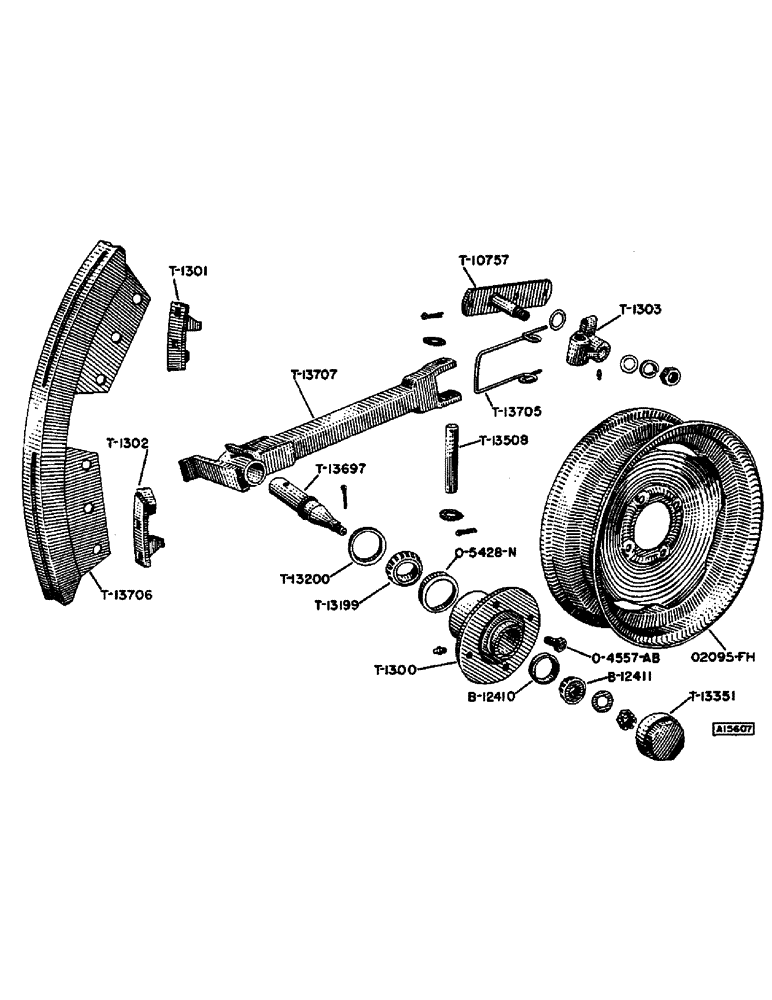

Запчасти Case IH T-SERIES (12) - GAUGE WHEEL ASSEMBLY, 1957-

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (Timken LM11910) (Yr. 57-)

1шт.

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (Timken LM11949) (Yr. 57-)

1шт.

T1300

HUB - gauge wheel, w/bearing cups B12410 & O5428N (Yr. 57-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

T1301

STOP - adjusting, gauge wheel, R.H. (Yr. 57-)

1шт.

1/2" x 1-1/2" cge. bolt w/lockwasher and nut

2шт.

1-1/4" x 9/16" x #14 wrot washer

2шт.

T1302

STOP - adjusting, gauge wheel, L.H. (Yr. 57-)

1шт.

1/2" x 1-1/2" cge. bolt w/lockwasher and nut

2шт.

1-1/4" x 9/16" x #14 wrot washer

2шт.

T1303

BLOCK - pivot (Yr. 57-)

1шт.

1/8" straight Lincoln fitting #5000

1шт.

T10757

BRACKET - gauge wheel pivot (Yr. 57-)

1шт.

5/8" x 3" hex bolt w/lockwasher and nut (T24)

1шт.

3/4" x 3-1/4" hex bolt w/lockwasher and nut (T24)

2шт.

5/8" x 5" hex bolt w/lockwasher and nut (T26 & T28)

1шт.

3/4" x 5-1/4" hex bolt w/lockwasher and nut (T26 & T28)

2шт.

1-3/4" x 1-1/16" x #16 wrot washer

1шт.

1-7/8" x 1-5/16" x #16 wrot washer

1шт.

1" lockwasher and N.F. hex nut

1шт.

T13199

TAPERED BEARING,1.5" ID x 2.717" OD x 1.0313"

CONE - bearing, inner (Timken 13686) (Yr. 57-)

1шт.

T13200

SEAL

- grease (Yr. 57-)

1шт.

T13351

CAP - hub (Yr. 57)

1шт.

T13508

PIN - lock, gauge wheel arm (1" rd. x 5-7/8") (Yr. 57-)

1шт.

2" x 1-1/16" x #10 wrot washer

2шт.

1/4" x 1-1/2" cotter pin

2шт.

T13697

AXLE - gauge wheel (1-3/4" rd. x 8-5/8") (Yr. 57-)

1шт.

1-1/4" x 21/32" x #12 wrot washer

1шт.

5/8" N.C. hex slotted nut

1шт.

1/8" x 1-1/4" cotter pin

1шт.

T13705

SPRING - lock, gauge wheel arm (Yr. 57-)

1шт.

T13706

BRACKET - guide, gauge wheel (Yr. 57-)

1шт.

T13707

ARM - gauge wheel (Yr. 57-)

1шт.

1/2" x 2-3/4" hex bolt w/lockwasher and nut

1шт.

O4557AB

BOLT - wheel (Yr. 57-)

4шт.

O2095FH

WHEEL - pneumatic tire (5.90 x 15) (Yr. 57)

1шт.

O5428N

X

CUP - bearing, inner (Timken 13621) (Yr. 57-)

1шт.
