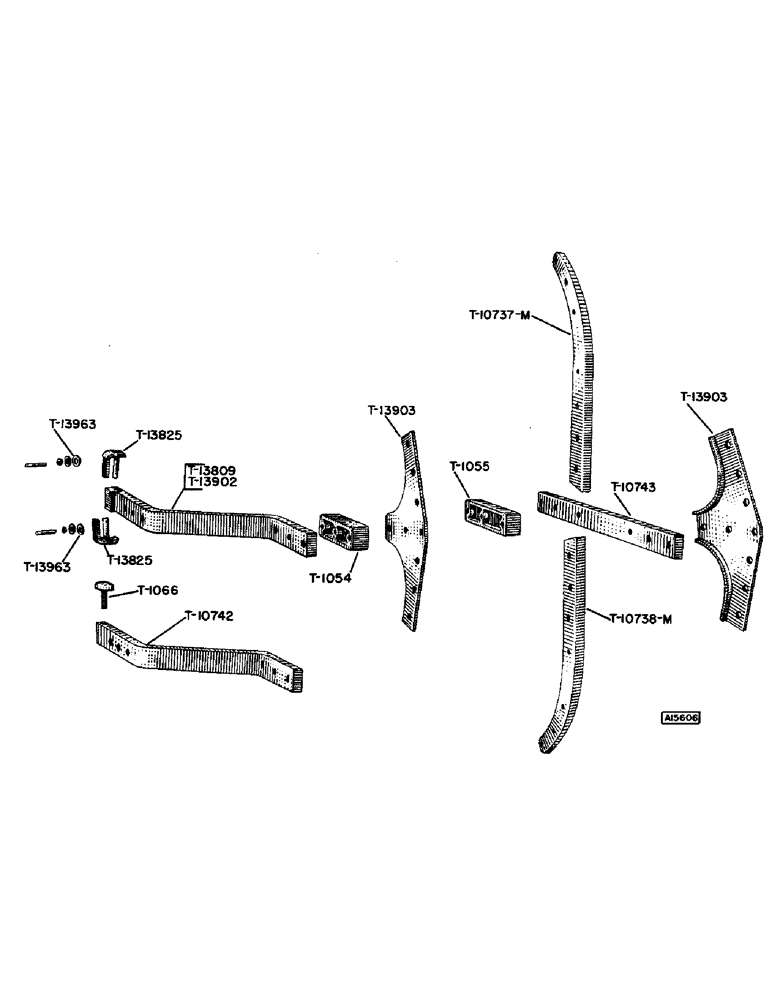

Запчасти Case IH T-SERIES (11) - BEAMS, STANDARDS AND GUSSETS, FOR T24, T26 AND T28

T1054

BLOCK - spacer, offset beam (Short) (Yr. 55-) (T26 & T28)

1шт.

T1055

BLOCK - spacer, pivot bracket (Long) (Yr. 55-) (T26 & T28)

1шт.

T1066

PAD - lock (Use w/T10742 offset beam) (Yr. 55-56) (T24 & T26)

2шт.

3/4" N.C. HEX JAM NUT (T24 & T26)

2шт.

T10737M

STANDARD - beam, R.H. (Machinery item) (Yr. 55-)

2шт.

T10738M

STANDARD - beam, L.H. (Machinery item) (Yr. 55-)

2шт.

T10742

BEAM - offset (2-3/4" x 1-1/4" x 43-5/8") See T1066 (Yr. 55-56) (T24 & T26)

1шт.

T10743

BEAM - straight (2-3/4" x 1-1/4" x 32") (yr. 55-)

1шт.

T10754

GUSSET - beam and standard, outside (Use T13903) (Yr. 55-56) (T24 & T26)

2шт.

T10755

GUSSET - beam and standard, inner (Use T13903) (Yr. 55-56) (T24 & T26)

2шт.

T13809

BEAM - offset (45-3/4" long) See T13825 (Yr. 57-) (T28)

1шт.

T13825

PAD - lock (Use w/T13809 & T13902 offset beams) (Yr. 57-)

2шт.

1/2" x 2" sq. hd. c.p. set screw

2шт.

1-1/8" x 9/16" x #14 wrot washer

2шт.

1/2" N.C. hex jam nut

2шт.

T13902

BEAM - offset (44" long) See T13825 (Yr. 57-) (T24 & T26)

1шт.

T13903

GUSSET - beam and standard (Yr. 57-)

4шт.

3/4" x 3" hex bolt w/lockwasher and nut (Front)

4шт.

3/4" x 3-1/2" hex bolt w/lockwasher and nut (Front)

2шт.

3/4" x 3-3/4" hex bolt w/lockwasher and nut (Front)

3шт.

3/4" x 3-1/4" hex bolt w/lockwasher and nut (Rear)

6шт.

3/4" x 4-1/4" hex bolt w/lockwasher and nut (Rear) (T24)

3шт.

3/4" x 6-1/4" hex bolt w/lockwasher and nut (Rear) (T26 & T28)

3шт.

T13963

WASHER - corrugated (Used w/T13825) (Yr. 57-)

2шт.
