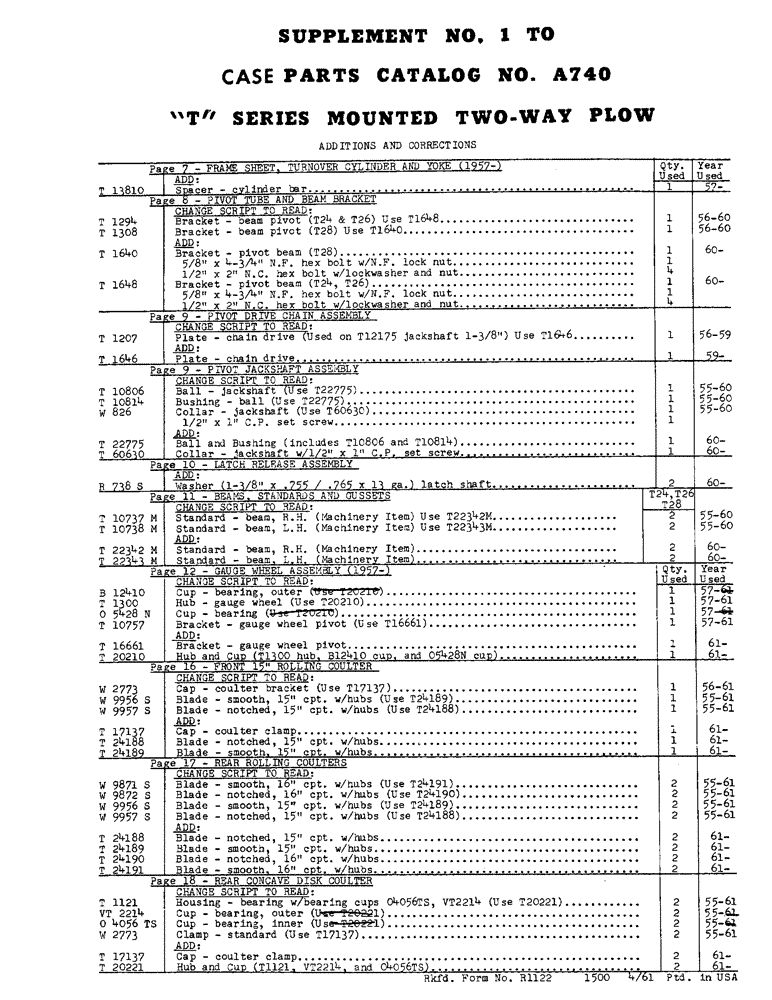

Запчасти Case IH T-SERIES (01A) - SUPPLEMENT NUMBER ONE TO T SERIES MOUNTED TWO-WAY PLOW, ADDITIONS AND CORRECTIONS

T13810

SPACER - cylinder bar (Yr. 57-)

1шт.

T1294

BRACKET - beam pivot (T24 & T26) Use T1648 (Yr. 56-60)

1шт.

T1308

BRACKET - beam pivot (T28) Use T1640 (Yr. 56-60)

1шт.

T1640

BRACKET - pivot beam (T28) (Yr. 60-)

1шт.

5/8" x 4-3/4" N.F. hex bolt w/N.F. locknut

1шт.

1/2" x 2" N.C. hex bolt w/lockwasher and nut

4шт.

T1648

BRACKET - pivot beam (T24, T26) (Yr. 60-)

1шт.

5/8" x 4-3/4" N.F. hex bolt w/N.F. locknut

1шт.

1/2" x 2" N.C. hex bolt w/lockwasher and nut

4шт.

T1207

PLATE - chain drive (Used on T12175 jackshaft 1-3/8") (Use T1646) (Yr. 56-59)

1шт.

T1646

PLATE - chain drive (yr. 59-)

1шт.

T10806

BALL - jackshaft (Use T22775) (Yr. 55-60)

1шт.

T10814

BUSHING - ball (Use T22775) (Yr. 55-60)

1шт.

W826

COLLAR - jackshaft (Use T60630) (Yr. 55-60)

1шт.

1/2" x 1" C.P. set screw

1шт.

T22775

BALL AND BUSHING - (Includes T10806 and T10814) (Yr. 60-)

1шт.

T60630

COLLAR - jackshaft w/1/2" x 1" C.P. set screw (Yr. 60-)

1шт.

R738S

WASHER - (1-1/38" x .755/.765 x 13 ga.) latch shaft (Yr. 60-)

2шт.

T10737M

STANDARD - beam, R.H. (Machinery item) Use T22342M (Yr. 55-60)

2шт.

T10738M

STANDARD - beam, L.H. (Machinery item) Use T22343M (Yr. 55-60)

2шт.

T22342M

STANDARD - beam, R.H. (Machinery item) (Yr. 60-)

2шт.

T22343M

STANDARD - beam, L.H. (Machinery item) (Yr. 60-)

2шт.

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (Yr. 57-)

1шт.

T1300

HUB - gauge wheel (Use T20210) (Yr. 57-61)

1шт.

O5428N

X

CUP - bearing (Yr. 57)

1шт.

T10757

BRACKET - gauge wheel pivot (Use T16661) (Yr. 57-61)

1шт.

T16661

BRACKET - gauge wheel pivot (Yr. 61-)

1шт.

T20210

HUB AND CUP - (T1300 hub, B12410 cup, and O5428N cup) (Yr. 61-)

1шт.

W2773

CAP - coulter bracket (Use T17137) (Yr. 56-61)

1шт.

W9956S

BLADE - smooth, 15" cpt. w/hubs (Use T24189) (Yr. 55-61)

1шт.

W9957S

BLADE - notched, 15" cpt. w/hubs (Use T24188) (Yr. 55-61)

1шт.

T17137

CAP

- coulter clamp (Yr. 61-)

1шт.

T24188

BLADE - notched, 15" cpt. w/hubs (Yr. 61-)

1шт.

T24189

BLADE - smooth, 15" cpt. w/hubs (Yr. 61-)

1шт.

W9871S

BLADE - smooth, 16" cpt. w/hubs (Use T24191) (Yr. 55-61)

2шт.

W9872S

BLADE - notched, 16" cpt. w/hubs (Use T24190) (Yr. 55-61)

2шт.

W9956S

BLADE - smooth, 15" cpt. w/hubs (Use T24189) (Yr. 55-61)

2шт.

W9957S

BLADE - notched, 15" cpt. w/hubs (Use T24188) (Yr. 55-61)

2шт.

T24188

BLADE - notched, 15" cpt. w/hubs (Yr. 61-)

2шт.

T24189

BLADE - smooth, 15" cpt. w/hubs (Yr. 61-)

2шт.

T24190

BLADE - notched, 16" cpt. w/hubs (Yr. 61-)

2шт.

T24191

BLADE - smooth, 16" cpt. w/hubs (Yr. 61-)

2шт.

T1121

HOUSING - bearing w/bearing cups O4056TS, VT2214 (Use T20221) (Yr. 55-61)

2шт.

VT2214

X

CUP - bearing, outer (Yr. 55)

2шт.

O4056TS

CUP

- bearing, inner (Yr. 55-)

2шт.

W2773

CLAMP - standard (Use T17137) (Yr. 55-61)

2шт.

T17137

CAP

- coulter clamp (Yr. 61-)

2шт.

T20221

HUB AND CUP - (T1121, VT2214, and O4056TS) (Yr. 61-)

2шт.
