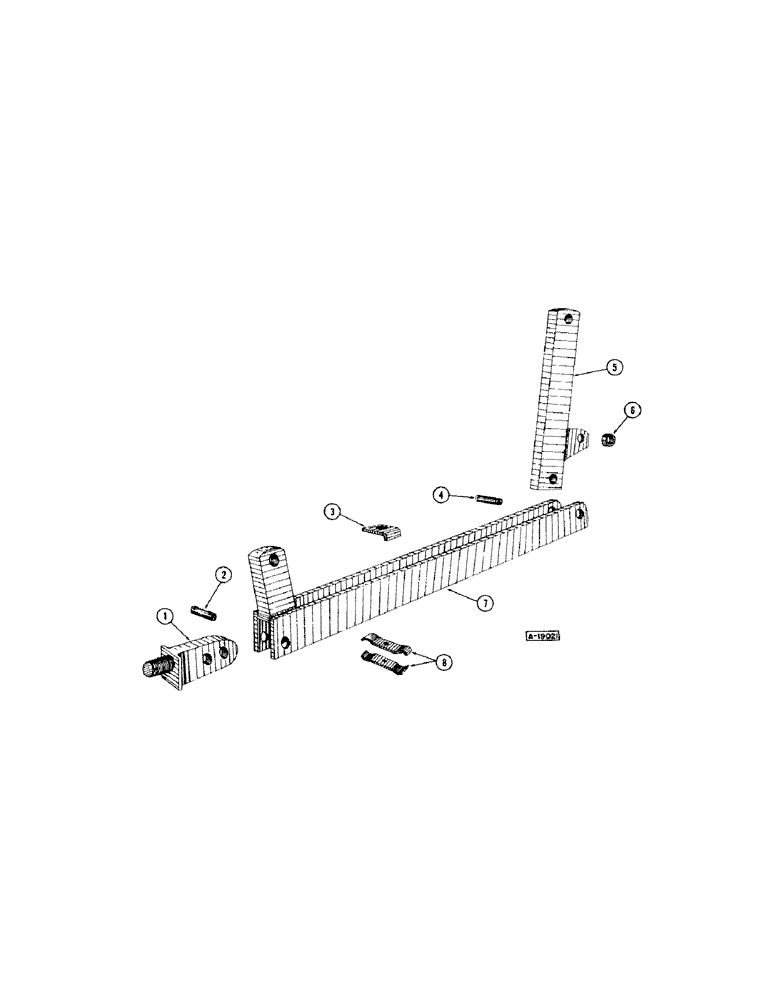

Запчасти Case IH MA (14[A]) - HYDRAULIC DEPTH CONTROL

1

T1717

ANCHOR

1шт.

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" N.C. hex jam

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

2

T24098

PIN - anchor

1шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

3

W10776S

CLAMP - hose holder

1шт.

11-672

BOLT (MACHINE)

BOLT - 3/8" x 4-1/2" carriage

1шт.

92-6

LOCK WASHER,3/8"

1шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" N.C. wing

1шт.

4

T24097

PIN - connecting link

1шт.

195-2091

WASHER,15/16" x 1 3/8" x .219"

- 1-3/8" x 15/16" x 16 ga.

2шт.

132-95

COTTER PIN,3/16" x 1 1/2"

Pin, Split (Cotter), 3/16" x 1 1/2"

2шт.

5

T24091

ARM - actuating

1шт.

6

O8688HT

BUSHING - actuating arm

2шт.

7

T24094

LINK - connecting

1шт.

8

H4563S

CLAMP - hose support

2шт.
