Запчасти Case IH MA (12) - MAST AND DRAFT BAR FOR CATEGORY II HITCH, MA AND MTA FIVE BOTTOM, 14 AND 16 INCH

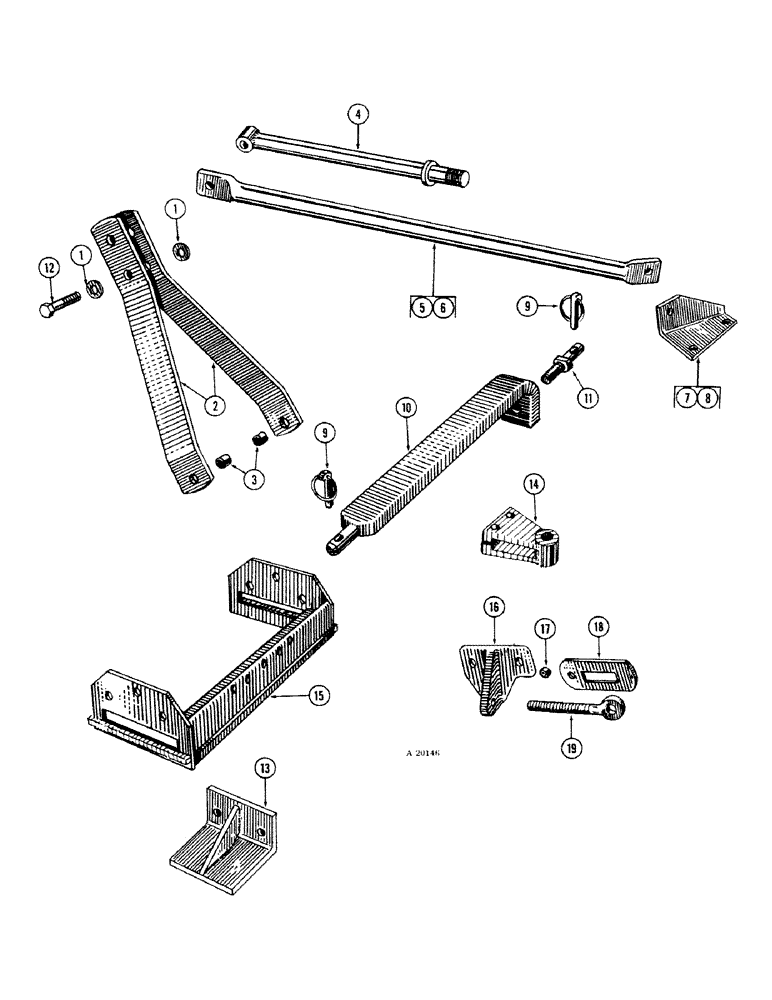

Схема запчастей Case IH MA - (12) - MAST AND DRAFT BAR FOR CATEGORY II HITCH, MA AND MTA FIVE BOTTOM, 14 AND 16 INCH

Артикул

Название

Примечание

Количество

1

95-14

WASHER,7/8"

- 2-1/4" x 5/16" x 8 ga. (YR. 66-)

2шт.

2

T28250

ARM - mast (YR. 66-)

2шт.

3

Y256

BUSHING - mast (YR. 66-)

2шт.

4

T32010

BRACE - mast (YR. 66-)

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" N.C. hex jam

1шт.

195-2125

WASHER,1 5/16" x 2" x .109"

- 2" x 1-5/16" x 12 ga.

6шт.

5

T32008

BRACE - auxiliary (16") (YR. 66-)

1шт.

6

T32009

BRACE - auxiliary (14") (YR. 66-)

1шт.

7

T31861

BRACKET - rear tie (14") (YR. 66-)

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(14") Hex, 3/4"-10 x 2 1/4", G5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (14") 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

(14") 3/4"-10, G5

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex hd. (14")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

2шт.

8

T31864

BRACKET - rear tie (16") (YR. 66-)

1шт.

13-1236

BOLT,Hex, 3/4" - 10 x 2-1/4", Gr 5

(16") Hex, 3/4"-10 x 2 1/4", G5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (16") 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

(16") 3/4"-10, G5

1шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex. (16")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

2шт.

9

A33509

PIN,11.18mm OD

- keeper, draft bar (YR. 64-)

2шт.

10

T32644

BAR - draft Category II Hitch (YR. 66-)

1шт.

11

T27962

LARGE PIN

PIN - draft bar (YR. 66-)

1шт.

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

25-1116

NUT,1"-14, G5

- 1" N.F. hex

1шт.

12

13-1480

BOLT,Hex, 7/8" - 9 x 5", Gr 5

(YR. 66-) Hex, 7/8"-9 x 5", G5

1шт.

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

25-1014

NUT,7/8"-9, G5

1шт.

13

T31847

STIFFENER - pullbar (YR. 66-)

1шт.

14

T1732

PIVOT - draft bar (YR. 66-)

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

15

T31852

CAGE - draft bar (YR. 66-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.

13-1472

CAPSCREW,Hex, 7/8" - 9 x 4 1/2", Gr 5

BOLT - 7/8" x 4-1/2" N.C. hex. hd.

1шт.

87341

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex jam

2шт.

16

T1870

BRACKET - lead (YR. 66-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex.

1шт.

85-1056

SET SCREW,Sq Hd, 5/8"-11 x 3 1/2"

- 5/8" x 3-1/2" sq. hd. C.P.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

17

T16029

BUSHING - (YR. 66-)

1шт.

18

T32645

COLLAR - (YR. 66-)

1шт.

19

T28245

EYEBOLT - (YR. 66-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

(YR. 66-) Hex, 5/8"-11 x 2", G5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

Выбрано товаров: 54
