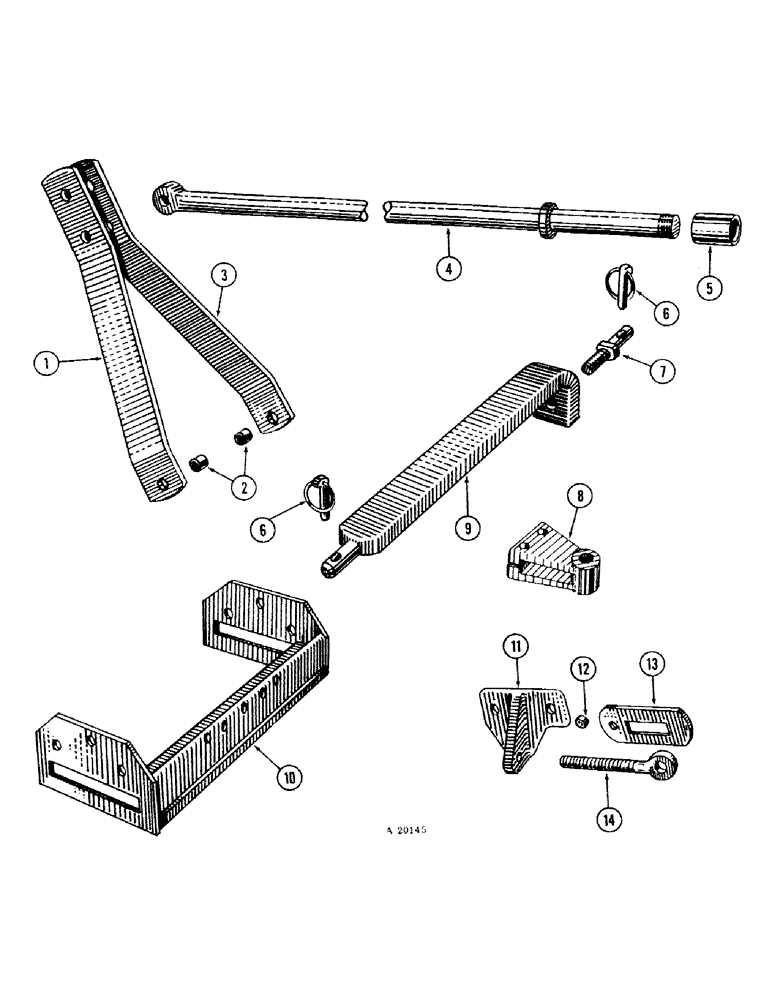

Запчасти Case IH MA (08) - MAST AND DRAFT BAR FOR CATEGORY I AND EAGLE HITCH, MA AND MTA, FOUR BOTTOM

1

T24287

ARM, L.H. - mast (YR. 64-)

1шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

2

Y256

BUSHING - mast (YR. 64-)

2шт.

3

T24281

ARM, R.H. - mast (YR. 64-)

1шт.

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

13-1464

BOLT,Hex, 7/8" - 9 x 4", Gr 5

- 7/8" x 4" N.C. hex.

1шт.

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

25-1014

NUT,7/8"-9, G5

1шт.

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

4

T24307

BRACE - mast (YR. 64-)

1шт.

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" N.C. hex jam

1шт.

5

T18162

BUSHING - stop (YR. 64-)

1шт.

6

A33509

PIN,11.18mm OD

- keeper, draft bar (YR. 64-)

2шт.

7

T22832

PIN - draft bar (YR. 64-)

1шт.

92-14

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex.

1шт.

8

T1732

PIVOT - draft bar (YR. 64-)

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

9

T22833

BAR - draft (YR. 64-)

1шт.

10

T24250

CAGE - draft bar (YR. 64-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

2шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

4шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

8шт.

13-1472

CAPSCREW,Hex, 7/8" - 9 x 4 1/2", Gr 5

BOLT - 7/8" x 4-1/2" N.C. hex.

1шт.

87341

LOCK WASHER,7/8"

WASHER, LOCK, 7/8"

1шт.

25-1414

NUT,Jam, 7/8"-9, G5

- 7/8" N.C. hex jam

2шт.

11

T1870

BRACKET - lead (YR. 64-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex.

1шт.

85-1056

SET SCREW,Sq Hd, 5/8"-11 x 3 1/2"

- 5/8" x 3-1/2" sq. hd. C.P.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

3шт.

12

T16029

BUSHING - (YR. 64-)

1шт.

13

T24300

COLLAR - (Use T32645) (YR. 64-65)

1шт.

13

T32645

COLLAR - (YR. 66-)

1шт.

14

T28245

EYEBOLT - (YR. 64-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.
