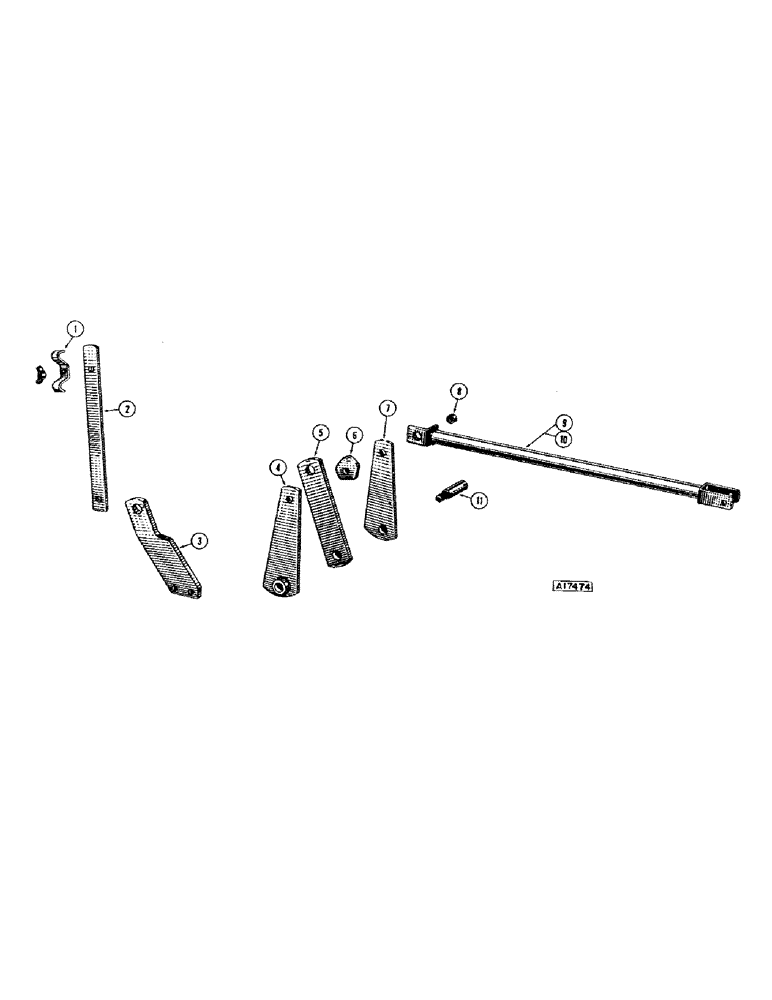

Запчасти Case IH MA (54[A]) - HYDRAULIC LIFT LINKS AND HOSE SUPPORTS

1

T18079

CLAMP - post hose (YR. 65-)

1шт.

2

T18078

POST - hose (YR. 65-)

1шт.

11-616

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

129-410

WING NUT,3/8"-16

NUT - wing, 3/8"

1шт.

3

T18080

ANCHOR - ram (YR. 65-)

1шт.

4

T18098

TOGGLE, L.H. - ram (YR. 65-)

1шт.

5

T18082

LINK - rear ram (YR. 65-)

1шт.

6

W2652

BLOCK

- stop (YR. 65-)

1шт.

7

T18097

TIGGLE, R.H. - ram (YR. 65-)

1шт.

8

Y252

BUSHING - ram lift (YR. 65-)

1шт.

9

T18099

LINK - ram lift ("SRA" plows) (YR. 65-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

10

T18125

LINK - ram lift ("STA" plows) (YR. 65-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x 10 ga.

1шт.

11

T18063

STUD - toggle pivot (YR. 65-)

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

195-2112

WASHER,1 3/16" x 1 3/4" x .065"

- 1-3/4" x 1-3/16" x 16 ga.

1шт.

132-150

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.
