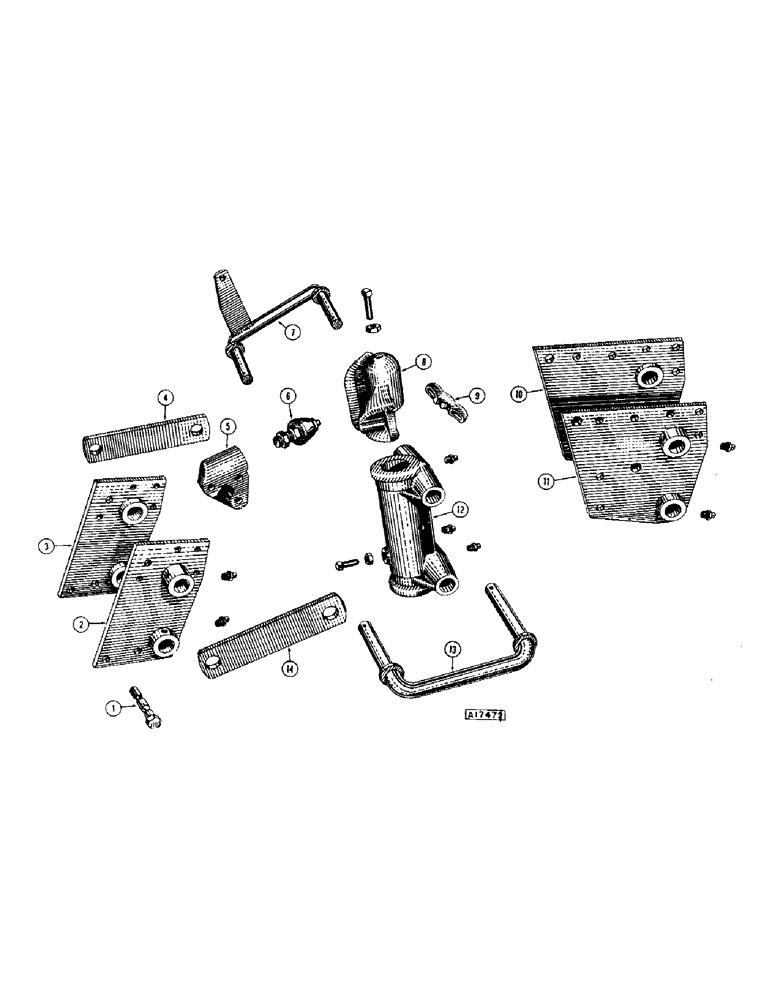

Запчасти Case IH MA (52) - REAR LIFT LINKAGE, SRA, STA, CONTINUED

8

T1436

STOP - rear wheel (YR. 65-)

1шт.

13-848

BOLT,Hex, 1/2" - 13 x 3", Gr 5

- 1/2" x 3" N.C. hex hd.

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

85-1056

SET SCREW,Sq Hd, 5/8"-11 x 3 1/2"

SCREW - set, 5/8" x 3-1/2" cup pt.

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" N.C. hex jam

1шт.

195-2052

WASHER,17/32" x 1 1/8" x .180"

2шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

FITTING - grease, 1/4" straight

1шт.

9

T1336

CLAMP

- rear axle (YR. 65-)

1шт.

10

T17993

PLATE, R.H. - rear wheel (STA) (YR. 65-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (STA) 1/4"-28 NPT x .54" lg

2шт.

11

T17994

PLATE, L.H. - rear wheel (STA) (YR. 65-)

1шт.

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

(STA) Hex, 1/2"-13 x 4 1/4", G5

1шт.

92-8

LOCK WASHER,1/2"

(STA) 1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex (STA)

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex hd. (STA)

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (STA) 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

(STA) 5/8"-11, G5

1шт.

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" N.C. hex hd. (STA)

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (STA) 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

(STA) 3/4"-10, G5

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (STA) 1/4"-28 NPT x .54" lg

2шт.

12

T1608

BRACKET - pivot (YR. 65-)

1шт.

85-828

SET SCREW,Sq Hd, 1/2"-13 x 1 3/4"

SCREW - set, 1/2" x 1-3/4" cup pt.

1шт.

25-148

JAM NUT,Jam, 1/2"-13, G5

- 1/2" NC hex jam

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" straight

3шт.

13

T15099

BAR - lower lift (YR. 65-)

1шт.

195-2121

WASHER,1 5/16" x 2" x .065"

- 2" x 5/16" x 16 ga.

2шт.

132-180

X

PIN - cotter, 5/16" x 1-3/4"

2шт.

14

T12507

STRAP - upper lift (YR. 65-)

1шт.
