Запчасти Case IH MA (50) - LANDSIDE AND MAST BRACE, LANDSLIDE AND MAST BRACE

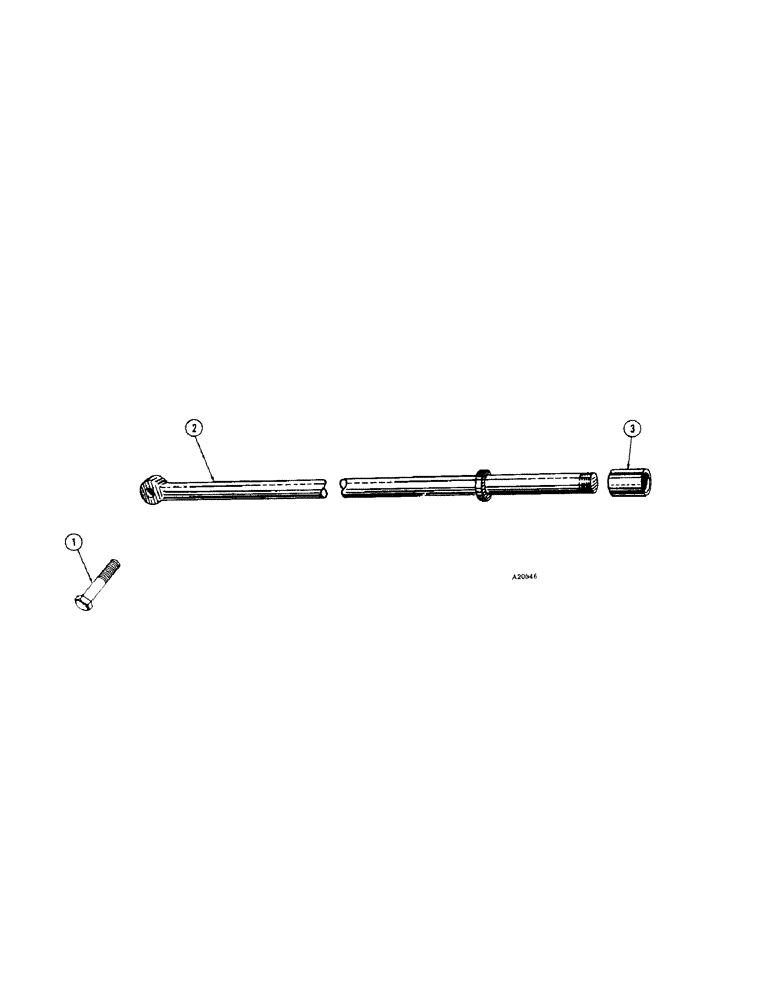

Схема запчастей Case IH MA - (50) - LANDSIDE AND MAST BRACE, LANDSLIDE AND MAST BRACE

Артикул

Название

Примечание

Количество

1

T24148

BOLT - mast arm (YR. 65-)

1шт.

25-1214

NUT - 7/8" N.C. hex slotted 7/8"-9, G5

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

Pin, Split (Cotter), (YR. 65-) 5/32" x 1 1/4"

1шт.

2

T24149

BRACE - mast (YR. 65-)

1шт.

25-1420

JAM NUT,Jam, 1 1/4"-7, G5

- 1-1/4" N.C. hex jam

1шт.

3

T18162

BUSHING - stop (YR. 65-)

1шт.

4

T26991

LANDSIDE

- 4" x 3/8" x 11", for 14" and 16" bottom (YR. 65-)

1шт.

5

T19471

PLOW BOLT

BOLT - plow 3/8" x 1-1/4" P#3 grade 5, w/rep. hd. and N.C. hex nut (YR. 65-)

1шт.

6

T19484

BOLT

- plow, 5/8" x 2-1/4" P#3 grade 5, w/rep. hd. and N.C. hex nut (YR. 65-)

1шт.

7

T19482

PLOW BOLT

BOLT - plow, 1/2" x 2-1/2" P#3 grade 5, w/rep. hd. and N.C. hex nut (YR. 65-)

1шт.

Выбрано товаров: 10
