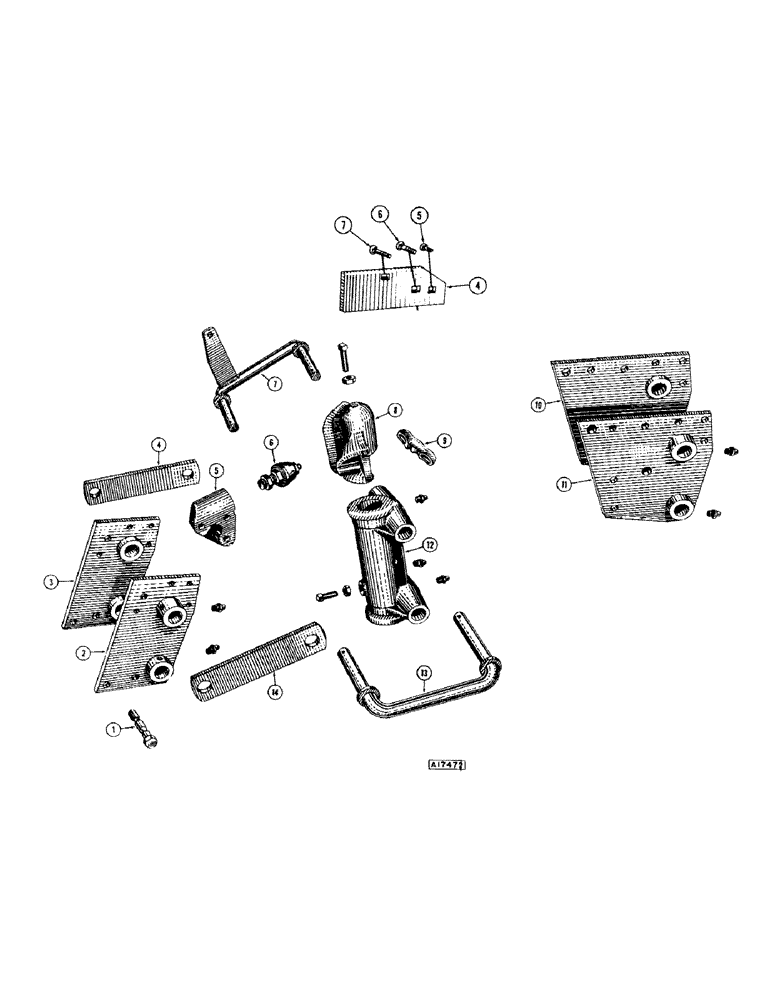

Запчасти Case IH MA (50[A]) - REAR LIFT LINKAGE, SRA, STA

1

T19718

BOLT - shear (SRA) (YR. 65-)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex) (SRA)

1шт.

92-8

LOCK WASHER,1/2"

(SRA) 1/2"

1шт.

2

T19717

PLATE, L.H. - rear wheel (SRA) (YR. 65-)

1шт.

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" N.C. hex hd. (SRA)

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (SRA) 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

(SRA) 3/4"-10, G5

3шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (SRA) 1/4"-28 NPT x .54" lg

2шт.

3

T19716

PLATE, R.H. - rear wheel (SRA) (YR. 65-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, (SRA) 1/4"-28 NPT x .54" lg

2шт.

4

T15095

STRAP - lower lift (YR. 65-)

1шт.

5

T61955

BRACKET - roller (YR. 65-)

1шт.

5

T62601

BRACKET - roller (YR. 67-)

1шт.

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

3шт.

6

T25836

PIN AND ROLLER ASSEMBLY - (YR. 65-)

1шт.

25-1514

JAM NUT,Jam, 7/8"-14, G5

- 7/8" N.C. hex jam

1шт.

193-75

LOCK WASHER,7/8"

LOCKWASHER - Shakeproof 7/8"

1шт.

7

T17186

BAR - upper lift (YR. 65-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex hd.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

195-2121

WASHER,1 5/16" x 2" x .065"

- 2" x 1-5/16" x 16 ga.

4шт.

132-180

X

PIN - cotter, 5/16" x 1-3/4"

2шт.
