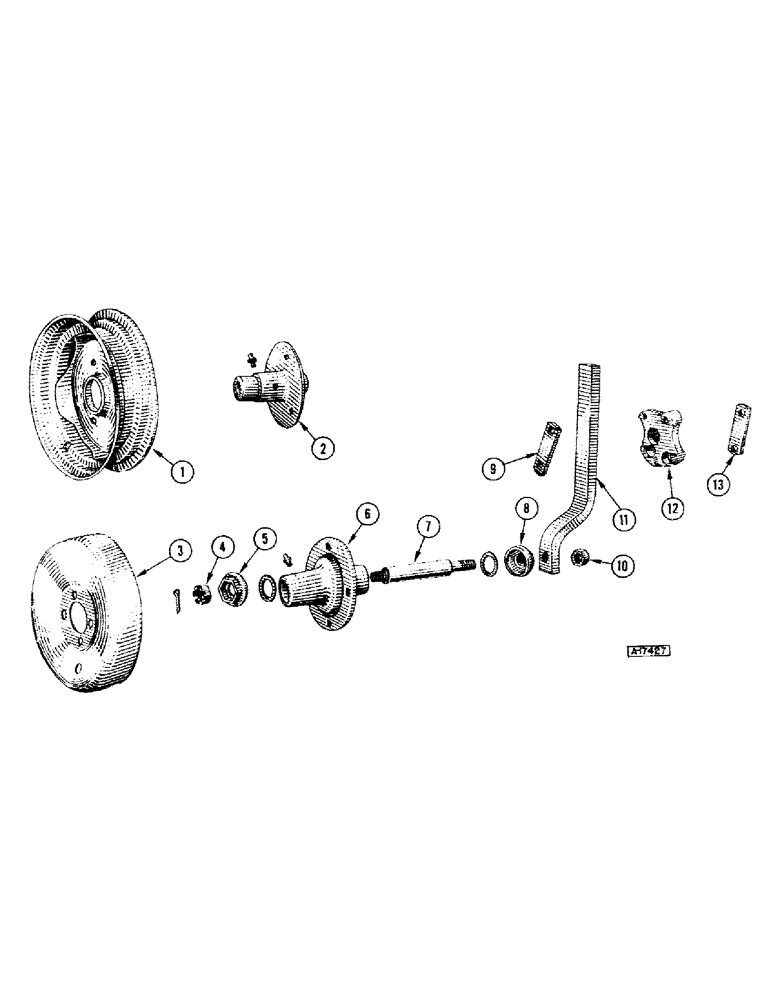

Запчасти Case IH MA (42) - GAUGE WHEEL, MTA TWO AND THREE BOTTOM

1

T81235

WHEEL - D.C. rim, for 4:00 x 12 pneumatic tire (Machinery item) (YR. 62-)

1шт.

2

T1305

HUB - wheel (For pneumatic tire wheel T81235) (YR. 62-)

1шт.

11-824

BOLT,Short NK, 1/2"-13 x 1 1/2", G2

- 1/2" x 1-1/2" carriage

3шт.

92-8

LOCK WASHER,1/2"

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

3шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" straight grease

1шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

3шт.

3

T16100

WHEEL - steel (Machinery item) (YR. 62-)

1шт.

4

129-276

NUT - 1" N.C. L.H. hex slotted (For T13781 spindle) (YR. 62-)

1шт.

5

T1306

CAP - hub (YR. 62-)

1шт.

6

T1445

HUB - wheel (For steel wheel T16100) (YR. 62-)

1шт.

11-828

BOLT (MACHINE)

BOLT - 1/2" x 1-3/4" carriage

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

95-8

WASHER,1/2"

(1-3/8" x 9/16" x 12 ga.) 1/2"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" straight grease

1шт.

7

T13781

SPINDLE - wheel (1-1/2" rd. x 10-11/16") (YR. 62-)

1шт.

195-2144

WASHER,1 5/8" x 2 1/4" x .065"

- 2-1/4" x 1-9/16" x 16 ga.

2шт.

132-148

COTTER PIN,1/4" x 1 1/4"

Pin, Split (Cotter), 1/4" x 1 1/4"

1шт.

8

T1307

CAP - dust (YR. 62-)

1шт.

9

T14374

STRAP - clamp, mounted (YR. 62-)

1шт.

111-604

BOLT - 5/8" x 6" w/2-1/4" thread

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

10

129-310

NUT - 1" N.C., L.H. for T13781 spindle (YR. 62-) 1"-8, G5, LH

1шт.

11

T13782

STANDARD - (YR. 62-)

1шт.

12

T1347

BRACKET - beam and standard (Use T1888) (YR. 62-63)

1шт.

12

T1888

BRACKET - beam and standard (YR. 64-)

1шт.

19-1056

CARRIAGE BOLT,#3, 5/8" - 11 x 3 1/2", Gr 5

BOLT - plow, 5/8" x 3-1/2" N.C. P#3

1шт.

118-402

PLOW BOLT,5/8"-11 x 4 1/2", G2

BOLT - plow, 5/8" x 4-1/2" w/2-1/4" thread N.C. P#3

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

13

T14375

STRAP - clamp, beam (YR. 62-)

1шт.
