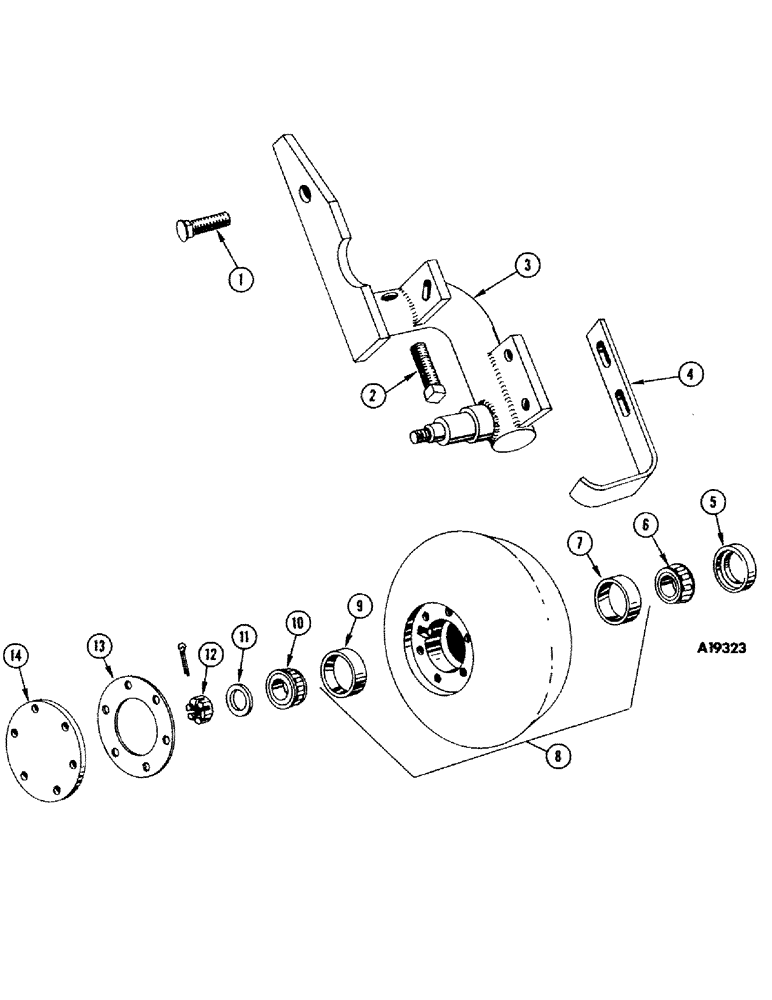

Запчасти Case IH MA (40[A]) - ROLLING LANDSIDE

1

T19484

BOLT

- plow, 5/8" x 2-1/4" P3 - grade 5 with N.C. hex nut (25-1010)

1шт.

2

85-1256

SET SCREW,Sq Hd, 1/4"-20 x 3/8"

SCREW - set, cup point, 3/4" x 3-1/2"

1шт.

25-1412

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex jam

1шт.

3

T27441

BRACKET - rolling landslide

1шт.

13-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- 1/2" x 2-1/2" N.C. hex

1шт.

13-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

1шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

195-2059

WASHER

- 3/8" x 9/16" x 14 ga.

4шт.

4

T27449

SPACER - wheel

1шт.

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

92-8

LOCK WASHER,1/2"

2шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

2шт.

5

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

- grease

1шт.

6

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - bearing, inner

1шт.

7

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

8

T27440

WHEEL AND CUP ASSEMBLY

1шт.

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

6шт.

92-5

LOCK WASHER,5/16"

6шт.

9

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

10

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

1шт.

11

195-2072

WASHER,11/16" x 1 1/8" x 109"

- 1-1/8" x 11/16" x 12 ga.

1шт.

12

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex slotted

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

13

T27447

GASKET

1шт.

14

T27448

COVER

1шт.
