Запчасти Case IH MA (38) - CONCAVE DISK COULTER 16 INCH

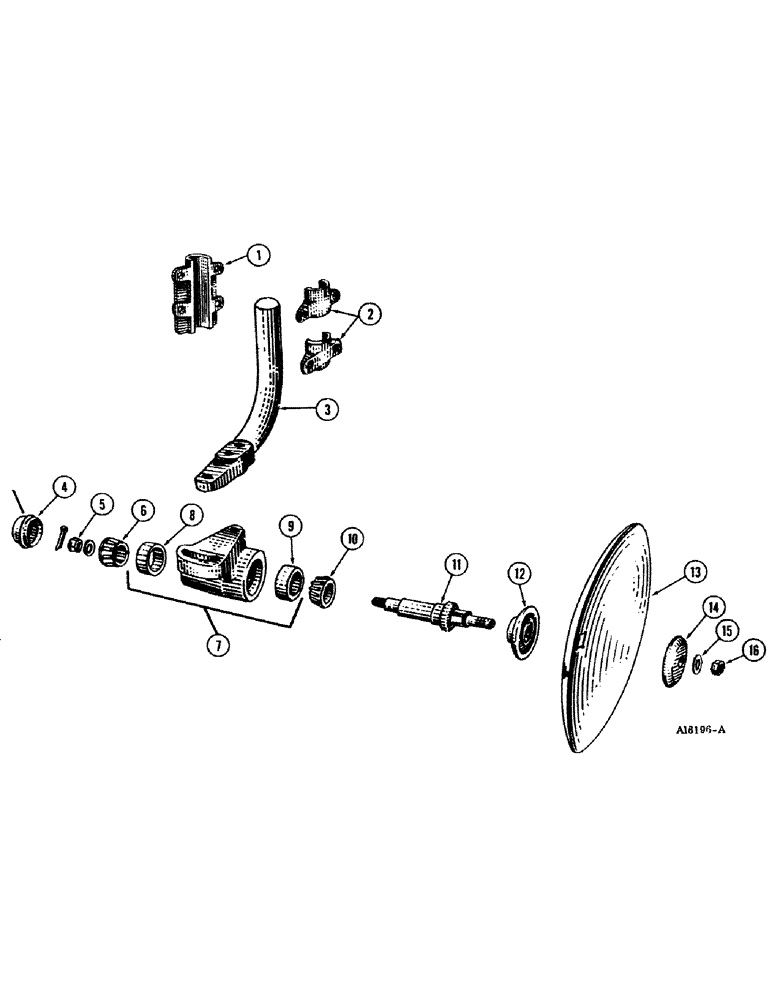

Схема запчастей Case IH MA - (38) - CONCAVE DISK COULTER 16 INCH

Артикул

Название

Примечание

Количество

1

T1606

CLAMP - coulter

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

2шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

2

T17137

CAP

- coulter clamp

2шт.

3

T14961

STANDARD - coulter

1шт.

4

O9929HT2

X

CAP - bearing, housing

1шт.

5

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex slotted

1шт.

6

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer

1шт.

7

T20209

HUB - w/cup

1шт.

8

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer

1шт.

9

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner

1шт.

219-30

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - 1/8" straight grease

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

10

T17079

CUP

CONE - bearing, inner

1шт.

11

T19939

SPINDLE - bearing

1шт.

195-2072

WASHER,11/16" x 1 1/8" x 109"

- 1-1/8" x 11/16" x 12 ga.

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

12

T11901

HOLDER - disk

1шт.

13

T11903

DISK - concave, 16"

1шт.

14

T11902

WASHER - disk, outer

1шт.

15

193-75

LOCK WASHER,7/8"

WASHER - Shakeproof, internal heavy duty type 7/8"

1шт.

16

25-1114

NUT,7/8"-14, G5

- 7/8" N.F. hex

1шт.

Выбрано товаров: 27
