Запчасти Case IH MA (34) - BEAM BRACKETS AND SHEAR BOLT STANDARDS, MA FOUR BOTTOM, 14 AND 16 INCH

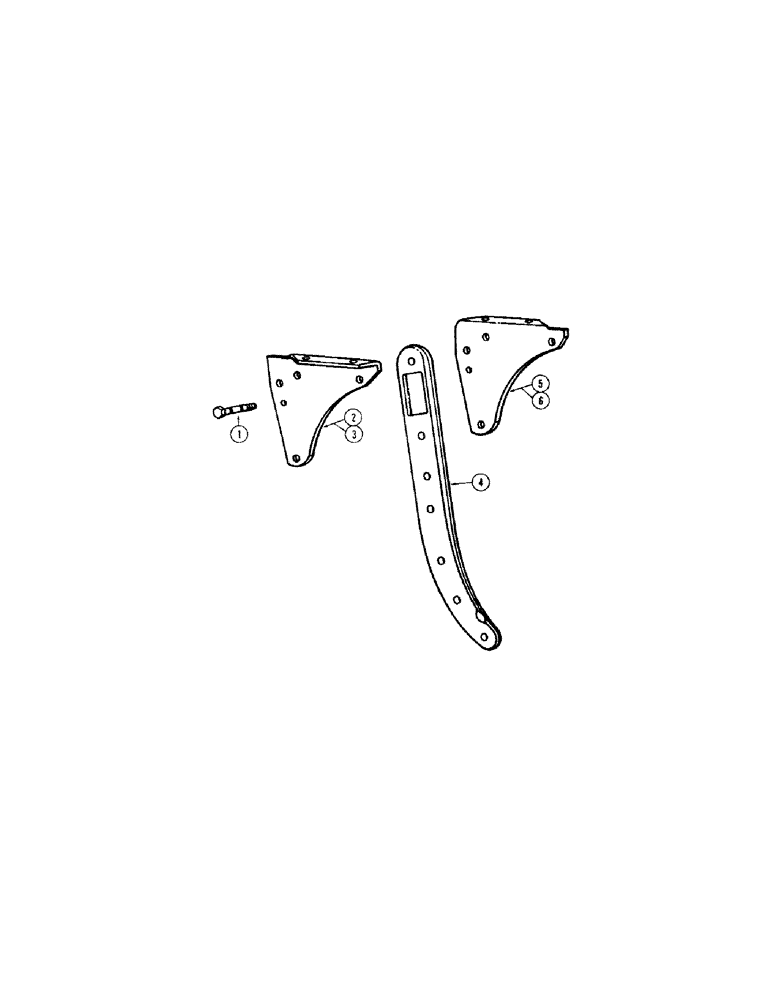

Схема запчастей Case IH MA - (34) - BEAM BRACKETS AND SHEAR BOLT STANDARDS, MA FOUR BOTTOM, 14 AND 16 INCH

Артикул

Название

Примечание

Количество

1

T24254

BOLT

- shear (1/2" x 3") (YR. 64-)

4шт.

92-8

LOCK WASHER,1/2"

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex

4шт.

2

T19710

PLATE R.H. - rear (14") (YR. 64-)

1шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(14") Hex, 3/4"-10 x 3 1/4", G5

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (14") 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

(14") 3/4"-10, G5

3шт.

3

T19712

PLATE R.H. - rear (16") (YR. 64-)

1шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(16") Hex, 3/4"-10 x 3 1/4", G5

3шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (16") 3/4"

3шт.

25-1012

NUT,3/4"-10, G5

(16") 3/4"-10, G5

3шт.

4

T24256

STANDARD - beam (YR. 64-)

4шт.

5

T19711

PLATE L.H. - rear (14") (YR. 64-)

1шт.

6

T19713

PLATE L.H. - rear (16") (YR. 64-)

1шт.

7

T24152

PLATE R.H. - (14") (YR. 64-)

3шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(14") Hex, 3/4"-10 x 3 1/4", G5

7шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(14") Hex, 3/4"-10 x 4", G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (14") 3/4"

9шт.

25-1012

NUT,3/4"-10, G5

(14") 3/4"-10, G5

9шт.

8

T234157

PLATE R.H. - (16") (YR. 64-)

3шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

(16") Hex, 3/4"-10 x 3 1/4", G5

7шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(16") Hex, 3/4"-10 x 4", G5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, (16") 3/4"

9шт.

25-1012

NUT,3/4"-10, G5

(16") 3/4"-10, G5

9шт.

9

T24155

PLATE L.H. - (14") (YR. 64-)

3шт.

10

T24160

PLATE L.H. - (16") (YR. 64-)

3шт.

Выбрано товаров: 26
