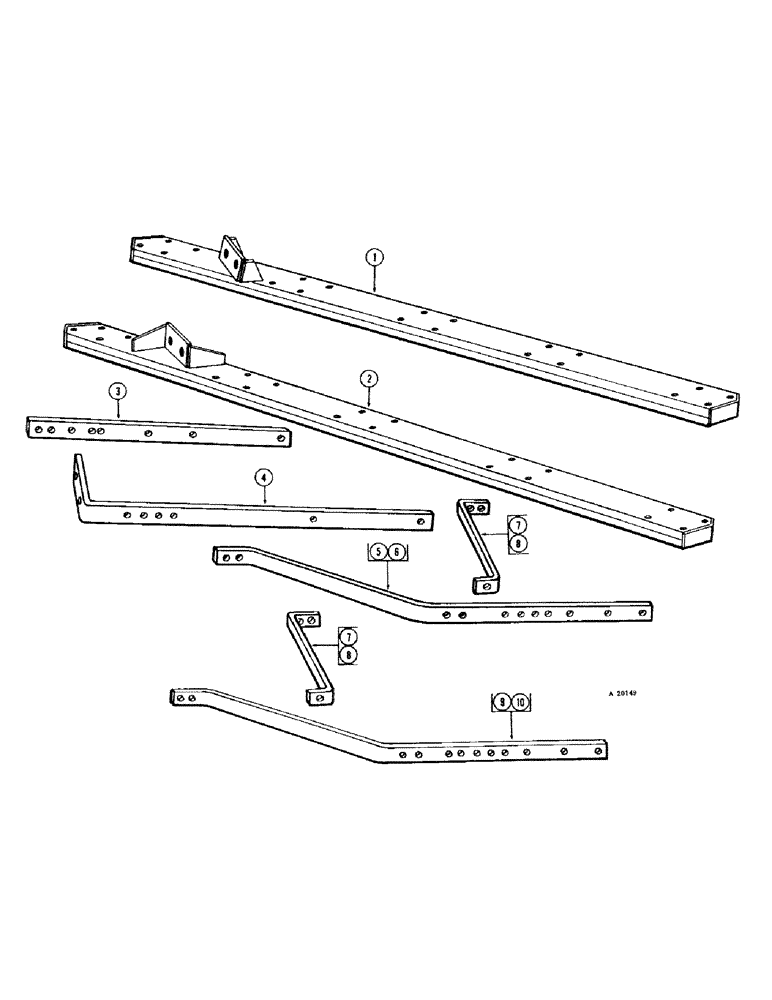

Запчасти Case IH MA (22) - MAIN FRAME, MA AND MTA FIVE BOTTOM, 14 AND 16 INCH

1

T24163

BRACE - rear beam (14") (YR. 66-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex. (14")

20шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

20шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

20шт.

2

T24165

BRACE - rear beam (16") (YR. 66-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex. (16")

20шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

20шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

20шт.

3

T24310

BEAM - No. 1 (YR. 66-)

1шт.

4

T24311

BEAM - No. 2 (YR. 66-)

1шт.

5

T28203

BEAM - No. 3 (14") (YR. 66-)

1шт.

6

T28204

BEAM - No. 3 (16") (YR. 66-)

1шт.

7

T14899

BRACE - offset beam (14") (YR. 66-)

3шт.

8

T14904

BRACE - offset beam (16") (YR. 66-)

3шт.

9

T18109

BEAM - No. 4 and No. 5 (14") (YR. 66-)

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(14") Hex, 5/8"-11 x 3", G5

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (14")

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

8шт.

10

T18067

BEAM - No. 4 and No. 5 (16") (YR. 66-)

2шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(16") Hex, 5/8"-11 x 3", G5

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex (16")

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

8шт.
