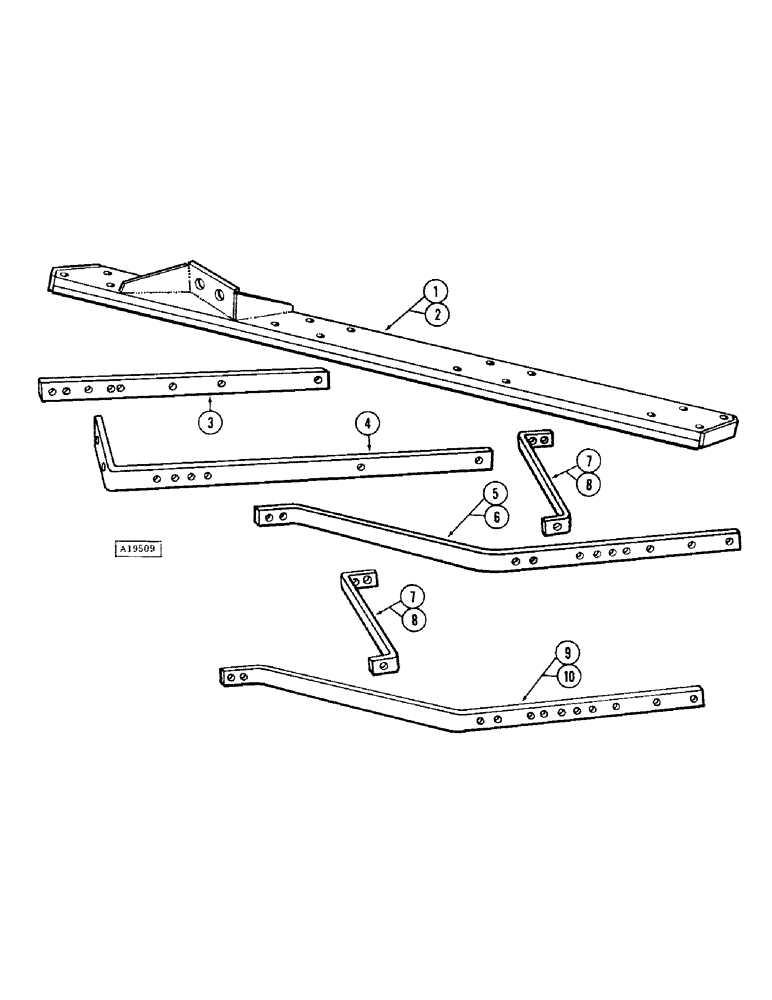

Запчасти Case IH MA (20) - MAIN FRAME, MA AND MTA FOUR BOTTOM, 14 AND 16 INCH

1

T24151

BRACE - rear beam (14") (YR. 64-)

1шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex. (14")

16шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

16шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

16шт.

2

T24154

BRACE - rear beam (16") (YR. 64-)

1шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex. (16")

16шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

16шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

16шт.

3

T24310

BEAM - No. 1 (YR. 64-)

1шт.

4

T24311

BEAM - No. 2 (YR. 64-)

1шт.

5

T28203

BEAM - No. 3 (14") (YR. 64-)

1шт.

6

T28204

BEAM - No. 3 (16") (YR. 64-)

1шт.

7

T14899

BRACE - offset beam (14") (YR. 64-)

2шт.

8

T14904

BRACE - offset beam (16") (YR. 64-)

2шт.

9

T18109

BEAM - No. 4 (14") (YR. 64-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (14")

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (14")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

4шт.

10

T18067

BEAM - No. 4 (16") (YR. 64-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C hex. (16")

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (16")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

4шт.
