Запчасти Case IH MA (18) - MAIN FRAME, MTA THREE BOTTOM, 14 AND 16 INCH

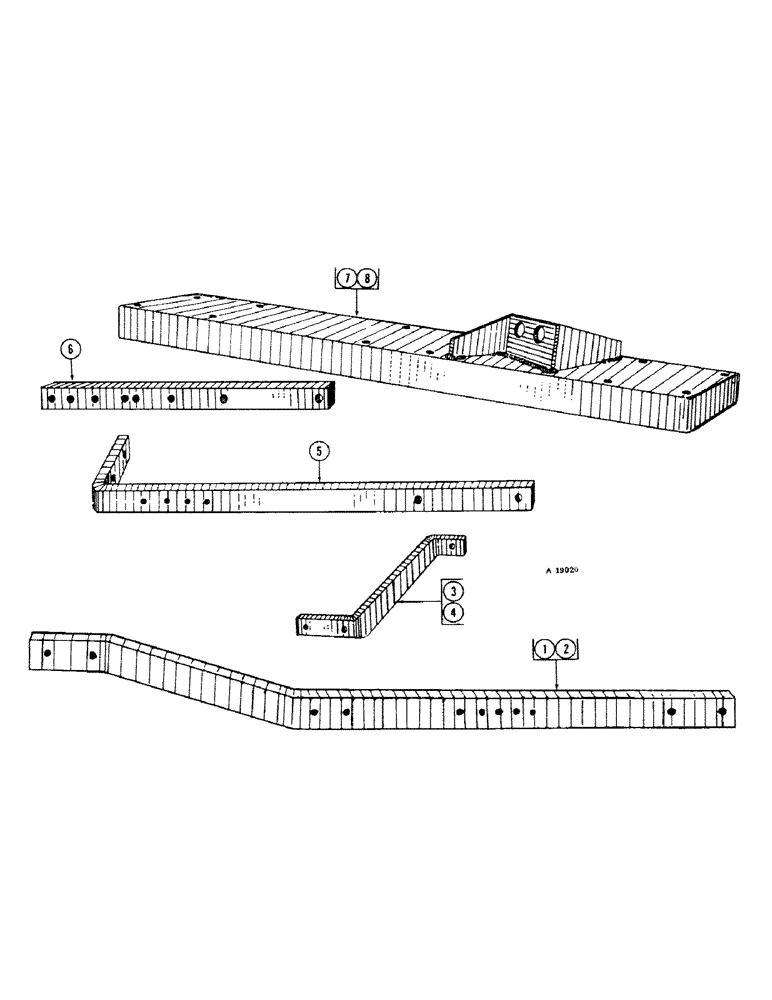

Схема запчастей Case IH MA - (18) - MAIN FRAME, MTA THREE BOTTOM, 14 AND 16 INCH

Артикул

Название

Примечание

Количество

1

T24322

BEAM - No. 3 (Use T28203) (14") (YR. 62-63)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex (14")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

1

T28203

BEAM - No. 3 (14") (YR. 64-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (14")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

2шт.

2

T24326

BEAM - No. 3 (Use T28204) (16") (YR. 62-63)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (16")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

2шт.

2

T28204

BEAM - No. 3 (16") (YR. 64-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (16")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

2шт.

3

T14899

BRACE - offset beam (14") (YR. 62-)

1шт.

4

T14904

BRACE - offset beam (16") (YR. 62-)

1шт.

5

T24311

BEAM - No. 2 (YR. 62-)

1шт.

6

T24310

BEAM - No. 1 (YR. 62-)

1шт.

7

T24321

BRACE - rear beam (14") (YR. 62-)

1шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex. (14")

12шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

12шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

12шт.

8

T24324

BRACE - rear beam (16") (YR. 62-)

1шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex. (16")

12шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

12шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

12шт.

Выбрано товаров: 28
