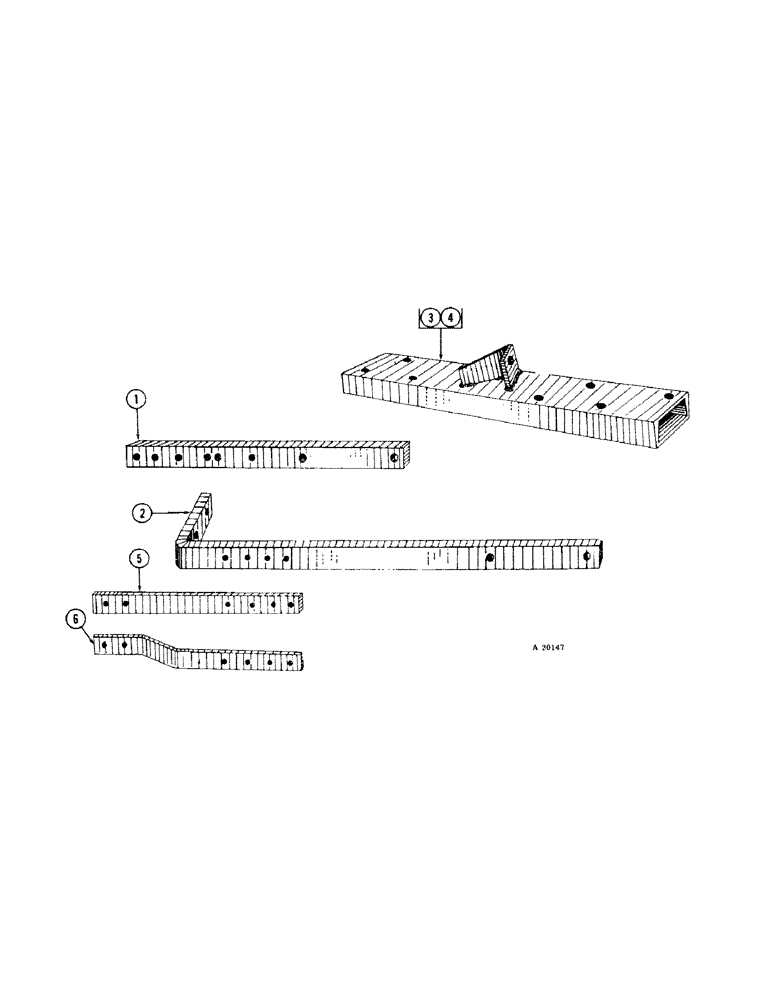

Запчасти Case IH MA (16) - MAIN FRAME, MTA TWO BOTTOM, 14 AND 16 INCH

1

T24310

BEAM - No. 1 (YR. 62-)

1шт.

2

T24311

BEAM - No. 2 (YR. 62-)

1шт.

3

T24315

BRACE - rear beam (14") (YR. 62-)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

(14") Hex, 5/8"-11 x 3 1/4", G5

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

8шт.

4

T24328

BRACE - rear beam (16") (YR. 62-)

1шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex. (16")

8шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

8шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

8шт.

5

T24319

BAR - tie (14") (YR. 62-)

1шт.

12-1080

BOLT - 5/8" x 5" N.C. hex. (14")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (14") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(14") 5/8"-11, G5

2шт.

6

T24329

BAR - tie (16") (YR. 62-)

1шт.

13-1080

BOLT,Hex, 5/8" - 11 x 5", Gr 5

- 5/8" x 5" N.C. hex. (16")

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, (16") 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

(16") 5/8"-11, G5

2шт.
