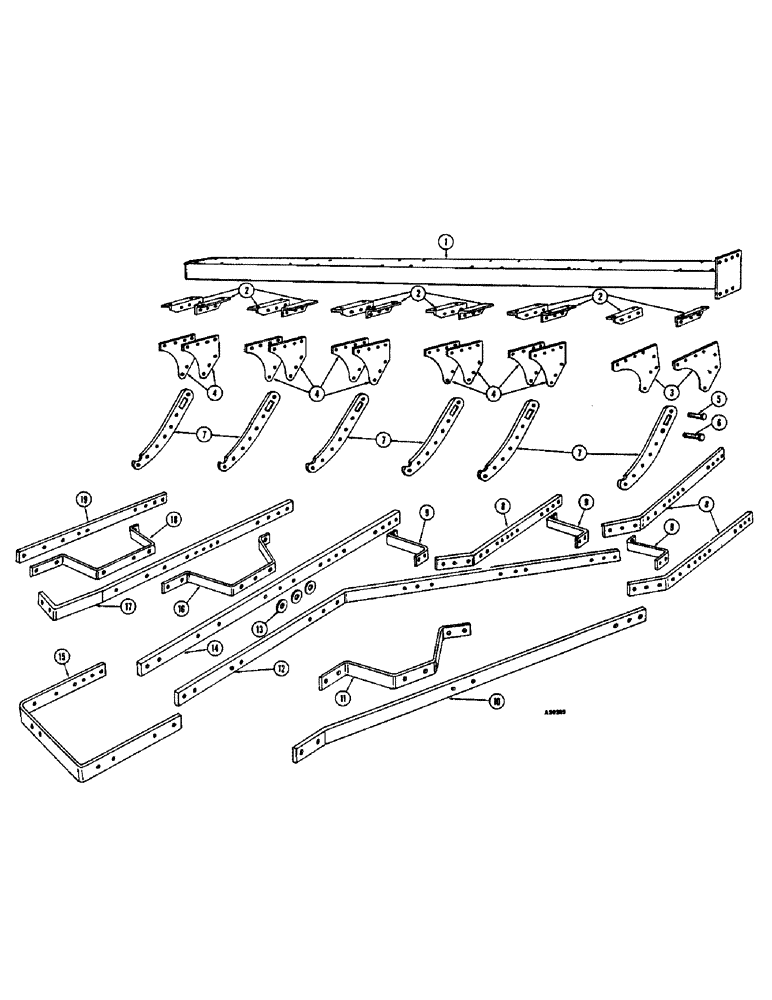

Запчасти Case IH JTA-SERIES (16) - FRAME, SIX BOTTOM JRA

1

T33897

BRACE - rear beam (YR. - 66-68)

1шт.

1

T37277

TEE

BRACE - rear beam (YR. - 68-)

1шт.

113-630

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- 5/8" x 6" N.C. hex., Z.P.

19шт.

2

T28097

ANGLE - rear beam brace (YR. - 66-)

12шт.

3

T28156

PLATE - beam, rear (YR. - 66-)

2шт.

4

T28155

PLATE - beam (YR. - 66-)

10шт.

5

T24254

BOLT

- shear (YR. - 66-)

6шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

6шт.

6

T14248

BOLT - 3/4" x 3-1/4" N.C. hex.

6шт.

25-1012

NUT,3/4"-10, G5

6шт.

7

T24256

STANDARD (YR. - 66-)

6шт.

8

T28074

BEAM - #4, #5 and #6 (YR. - 66-)

3шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

12шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex., Z.P.

12шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex., Z.P.

3шт.

9

T28078

BRACE - #3, #4, #5 and #6 (YR. - 66-)

3шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

6шт.

10

T28201

BRACE - front diagonal (YR. - 66-)

1шт.

113-626

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

2шт.

11

T28202

BRACE - diagonal tie (YR. - 66-)

1шт.

12

T28196

SUPPORT - beam, front (YR. - 66-)

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex., Z.P.

3шт.

113-601

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex., Z.P.

2шт.

113-714

BOLT,Hex, 3/4" - 10 x 5", Gr 5

3шт.

113-728

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

2шт.

113-727

BOLT,Hex, 3/4" - 10 x 4-3/4", Gr 5

- 3/4" x 4-3/4" N.C. hex., Z.P.

1шт.

113-718

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

1шт.

13

195-2180

WASHER - 2-1/2" x 13/16" x 11/32" thick (YR. - 66-)

9шт.

14

T28073

BEAM - #3 (YR. - 66-)

1шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex., Z.P.

2шт.

15

T28070

BRACE - front cross (YR. - 66-)

1шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

16

T28076

BRACE - #2 and #3 beam (YR. - 66-)

1шт.

17

T28072

BEAM - #2 (YR. - 66-)

1шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex., Z.P.

2шт.

18

T28075

BRACE - #1 and #2 beam (YR. - 66-)

1шт.

19

T28071

BEAM - #1 (YR. - 66-)

1шт.

113-726

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4" x 3-3/4" N.C. hex., Z.P.

2шт.

113-629

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex., Z.P.

2шт.

113-643

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

2шт.

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

113-618

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex., Z.P.

1шт.

113-627

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.
