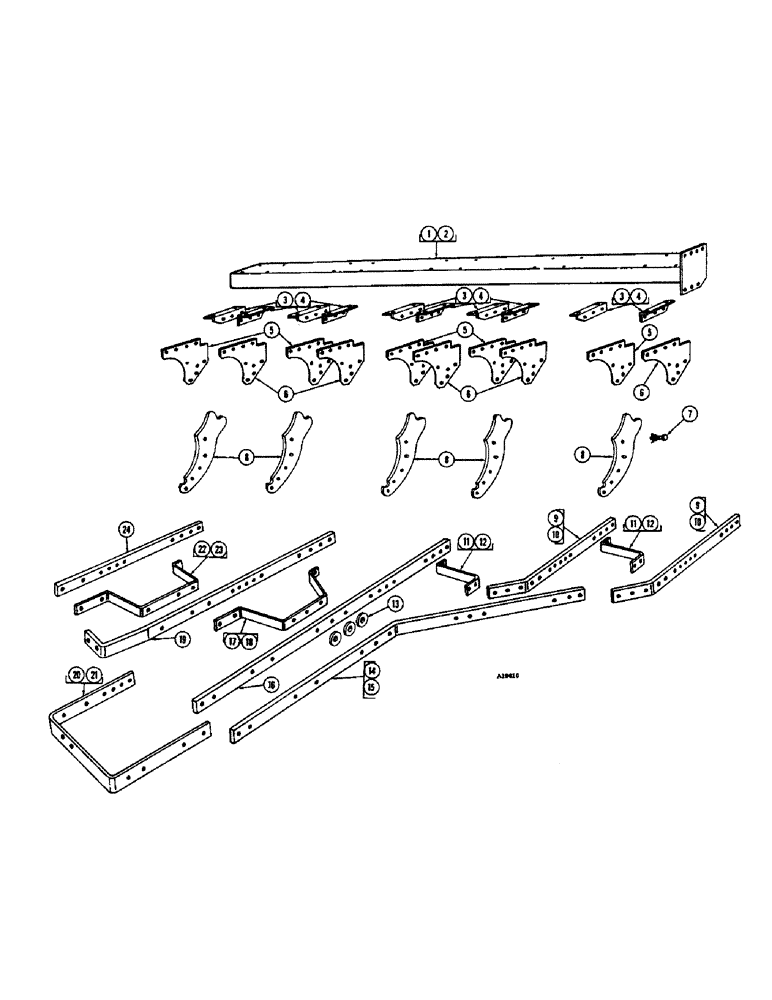

Запчасти Case IH JTA-SERIES (14) - FRAME, FIVE BOTTOM JTA, 14 INCH, 16 INCH
№
Артикул
Название
Примечание
Количество
1
T37274
BRACE - rear beam (14") (YR. - 68-)
1шт.
13-1084
BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5
- 5/8" x 5-1/4" N.C. hex. (14")
15шт.
2
T37276
BRACE - rear beam (16") (YR. - 68-)
1шт.
13-1084
BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5
- 5/8" x 5-1/4" N.C. hex. (16")
15шт.
3
T28148
ANGLE - rear beam brace (14") (YR. - 68-)
10шт.
4
T28097
ANGLE - rear beam brace (16") (YR. - 68-)
10шт.
5
T28098
PLATE
- beam, R.H. (YR. - 68-)
5шт.
6
T28099
PLATE
- beam, L.H. (YR. - 68-)
5шт.
7
T62182
BOLT & NUT ASSEM. - (Consists of 1 each T28252, 25-1316 nut & 132-97 cotter) (YR. - 68-)
5шт.
8
T26289
STANDARD (YR. - 68-)
5шт.
9
T28141
BEAM - #4 and #5 (14") (YR. - 68-)
2шт.
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.C. hex. (14")
8шт.
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8" x 3-3/4" N.C. hex. (14")
8шт.
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8" x 4" N.C. hex. (14")
2шт.
10
T28074
BEAM - #4 and #5 (16") (YR. - 68-)
2шт.
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.C. hex. (16")
8шт.
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8" x 3-3/4" N.C. hex. (16")
8шт.
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8" x 4" N.C. hex. (16")
2шт.
11
T28144
BRACE - #3, #4 and #5 (14") (YR. - 68-)
2шт.
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.C. hex. (14")
4шт.
12
T28078
BRACE - #3, #4 and #5 (16") (YR. - 68-)
2шт.
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.C. hex. (16") (YR. - 68-)
4шт.
13
195-2180
WASHER - 2-1/2" x 13/16" x 11/32" thick (YR. - 68-)
9шт.
14
T28150
SUPPORT - beam, front (14") (YR. - 68-)
1шт.
13-1048
BOLT,Hex, 5/8" - 11 x 3", Gr 5
(14") Hex, 5/8"-11 x 3", G5
6шт.
13-1264
BOLT,Hex, 3/4" - 10 x 4", Gr 5
(14") Hex, 3/4"-10 x 4", G5
2шт.
13-1280
BOLT,Hex, 3/4" - 10 x 5", Gr 5
(14") Hex, 3/4"-10 x 5", G5
1шт.
13-1288
BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5
- 3/4" x 5-1/2" N.C. hex. (14")
2шт.
15
T28079
SUPPORT - beam, front (Hardware for 16" same as ref. no. 14) (16") (YR. - 68-)
1шт.
16
T28073
BEAM - #3 (YR. - 68-)
1шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
1шт.
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8" x 3-3/4" N.C. hex.
2шт.
17
T28143
BRACE - #2 and #3 beam (14") (YR. - 68-)
1шт.
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8" x 4" N.C. hex. (14")
1шт.
18
T28076
BRACE - #2 and #3 beam (16") (YR. - 68-)
1шт.
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8" x 4" N.C. hex. (16")
1шт.
19
T28072
BEAM - #2 (YR. - 68-)
1шт.
13-1044
BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5
- 5/8" x 2-3/4" N.C. hex.
1шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
1шт.
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8" x 3-3/4" N.C. hex.
2шт.
20
T28070
BRACE - cross, front (16") (YR. - 68-)
1шт.
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
(16") Hex, 3/4"-10 x 3", G5
2шт.
21
T28140
BRACE - cross, front (14") (YR. - 68-)
1шт.
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
(14") Hex, 3/4"-10 x 3", G5
2шт.
22
T28142
BRACE - #1 and #2 beam (14") (YR. - 68-)
1шт.
23
T28075
BRACE - #1 and #2 beam (16") (YR. - 68-)
1шт.
24
T28071
BEAM - #1 (YR. - 68-)
1шт.
13-1260
BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5
- 3/4" x 3-3/4" N.C. hex.
2шт.
13-1060
BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5
- 5/8" x 3-3/4" N.C. hex.
4шт.
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
13-1064
BOLT,Hex, 5/8" - 11 x 4", Gr 5
- 5/8" x 4" N.C. hex.
1шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
1шт.
