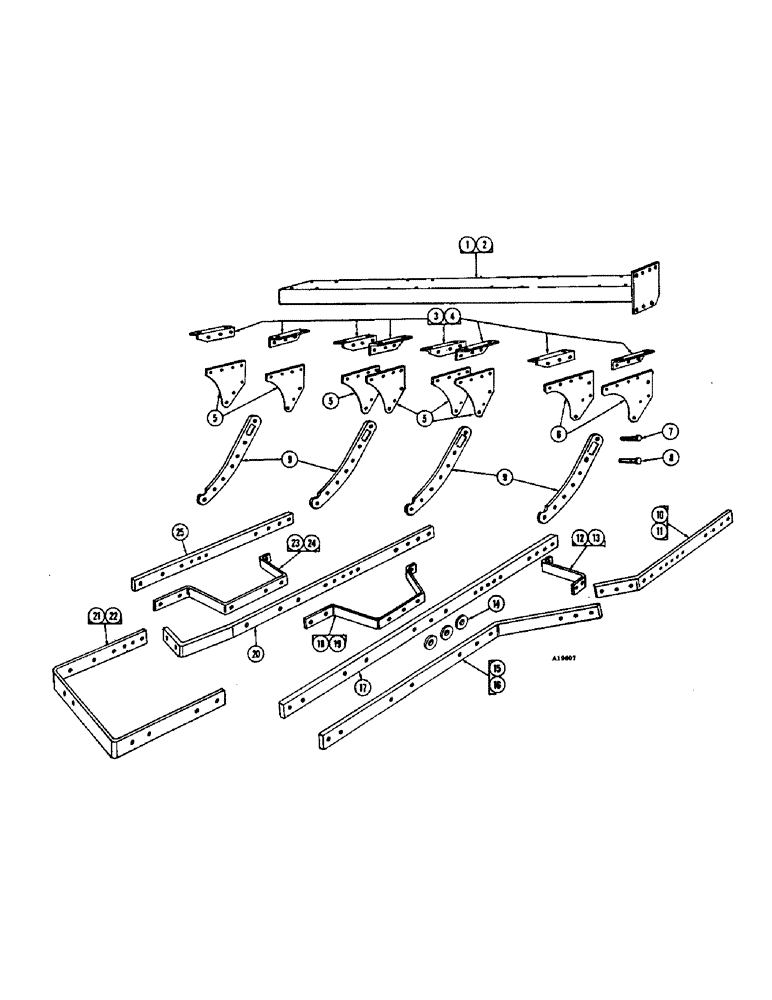

Запчасти Case IH JTA-SERIES (08) - FRAME, FOUR BOTTOM JRA, 14 INCH, 16 INCH

1

T37275

BRACE - rear beam (16") (YR. - 68-)

1шт.

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- 5/8" x 5-1/4" N.C. hex. (16")

11шт.

2

T37273

BRACE - rear beam (14") (YR. - 68-)

1шт.

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- 5/8" x 5-1/4" N.C. hex. (14")

11шт.

3

T28148

ANGLE - rear beam brace (14") (YR. - 68-)

8шт.

4

T28097

ANGLE - rear beam brace (16") (YR. - 68-)

8шт.

5

T28155

PLATE - beam (YR. - 68-)

6шт.

6

T28156

PLATE - beam, rear (YR. - 68-)

2шт.

7

T24254

BOLT

- shear (YR. - 68-)

4шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

8

T14248

BOLT - 3/4" x 3-1/4" N.C. hex. (YR. - 68-)

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

9

T24256

STANDARD (YR. - 68-)

4шт.

10

T28141

BEAM #4 (14") (YR. - 68-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (14")

2шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex. (14")

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (14")

1шт.

11

T28074

BEAM #4 (Hardware for 16" same as ref. no. 10) (16") (YR. - 68-)

1шт.

12

T28144

BRACE - #3 and #4 beam (14") (YR. - 68-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (14")

1шт.

13

T28078

BRACE - #3 and #4 beam (16") (YR. - 68-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex. (16")

1шт.

14

195-2180

WASHER - 2-1/2" x 13/16" x 11/32" thick (YR. - 68-)

9шт.

15

T28145

SUPPORT - beam front (14") (YR. - 68)

1шт.

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

(14") Hex, 5/8"-11 x 3", G5

3шт.

13-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

(14") Hex, 3/4"-10 x 4", G5

2шт.

13-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 5

(14") Hex, 3/4"-10 x 5", G5

1шт.

13-1288

BOLT,Hex, 3/4" - 10 x 5-1/2", Gr 5

- 3/4" x 5-1/2" N.C. hex. (14")

2шт.

16

T28132

SUPPORT - beam, front (Hardware for 16" same as ref. #15.) (16") (YR. - 68-)

1шт.

17

T28073

BEAM #3 (YR. - 68-)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

2шт.

18

T28143

BRACE - #2 and #3 beam (14") (YR. - 68-)

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex. (14")

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (14")

1шт.

19

T28076

BRACE - #2 and #3 beam (16") (YR. - 68-)

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex. (16")

2шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex. (16")

1шт.

20

T28072

BEAM - #2 (YR. - 68-)

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex.

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

2шт.

21

T28070

BRACE - cross, front (16") (YR. - 68-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(16") Hex, 3/4"-10 x 3", G5

2шт.

22

T28140

BRACE - cross, front (14") (YR. - 68-)

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

(14") Hex, 3/4"-10 x 3", G5

2шт.

23

T28142

BRACE - #1 and #2 beam (14") (YR. - 68-)

1шт.

24

T28075

BRACE - #1 and #2 beam (16") (YR. - 68-)

1шт.

25

T28071

BEAM - #1 (YR. - 68-)

1шт.

13-1260

BOLT,Hex, 3/4" - 10 x 3-3/4", Gr 5

- 3/4" x 3-3/4" N.C. hex.

2шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

4шт.

13-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

- 5/8" x 5-1/2" N.C. hex.

2шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.
