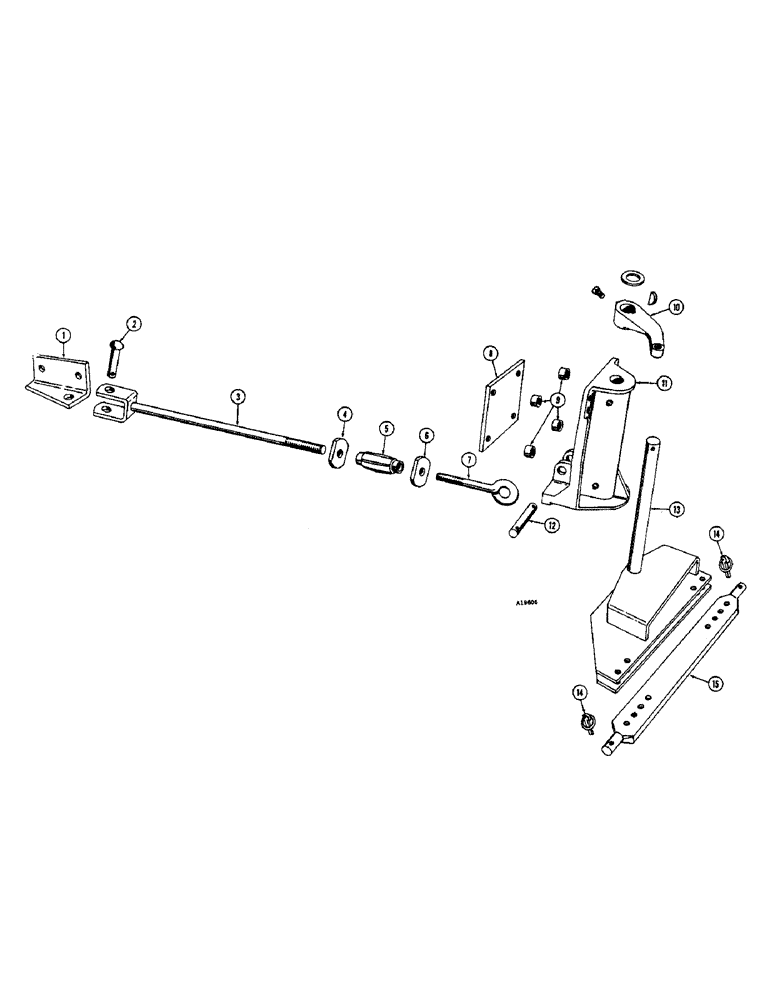

Запчасти Case IH JTA-SERIES (04) - HITCH AND TIE BAR, JRA AND JTA, FOUR BOTTOM

1

T28077

BRACKET - turnbuckle (YR. - 68-)

1шт.

2

10316K

RIVET - drilled, 1" x 3-1/2" rd. hd (YR. - 68-)

1шт.

132-152

PIN

- cotter, 1/4" x 1-3/4"

1шт.

3

T28093

CLEVIS AND TIE BAR (YR. - 68-)

1шт.

4

T28090

STRAP - lock, L.H. (YR. - 68-)

1шт.

5

W2660

TURNBUCKLE (YR. - 68-)

1шт.

6

T28089

STRAP - lock, R.H. (YR. - 68-)

1шт.

7

T28088

EYEBOLT - tie bar (YR. - 68-)

1шт.

8

T28039

PLATE - hitch bracket (YR. - 68-)

1шт.

9

T28040

SPACER - hitch plate (YR. - 68-)

4шт.

10

T2137

ARM - steering (YR. - 68-)

1шт.

85-1020

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

- 5/8" x 1-1/4"

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- 5/8" jam

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - Woodruff

1шт.

11

T1875

BRACKET - pivot (YR. - 68-)

1шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

2шт.

12

T28042

PIN - adjusting tie bar (YR. - 68-)

1шт.

132-154

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

2шт.

13

T28048

PIVOT - draw bar (YR. - 68-71)

1шт.

13

T34157

PIVOT - draw bar (Repl. T28048 inter.) (YR. - 71-)

1шт.

13-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 5

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

195-2155

WASHER,2 1/16" x 3" x .109"

- 3" x 2-1/16" x #12 ga

2шт.

132-204

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/8" x 3"

1шт.

14

A33509

PIN,11.18mm OD

- keeper (YR. - 68-)

2шт.

15

T28041

BAR - hitch (YR. - 68-)

1шт.
