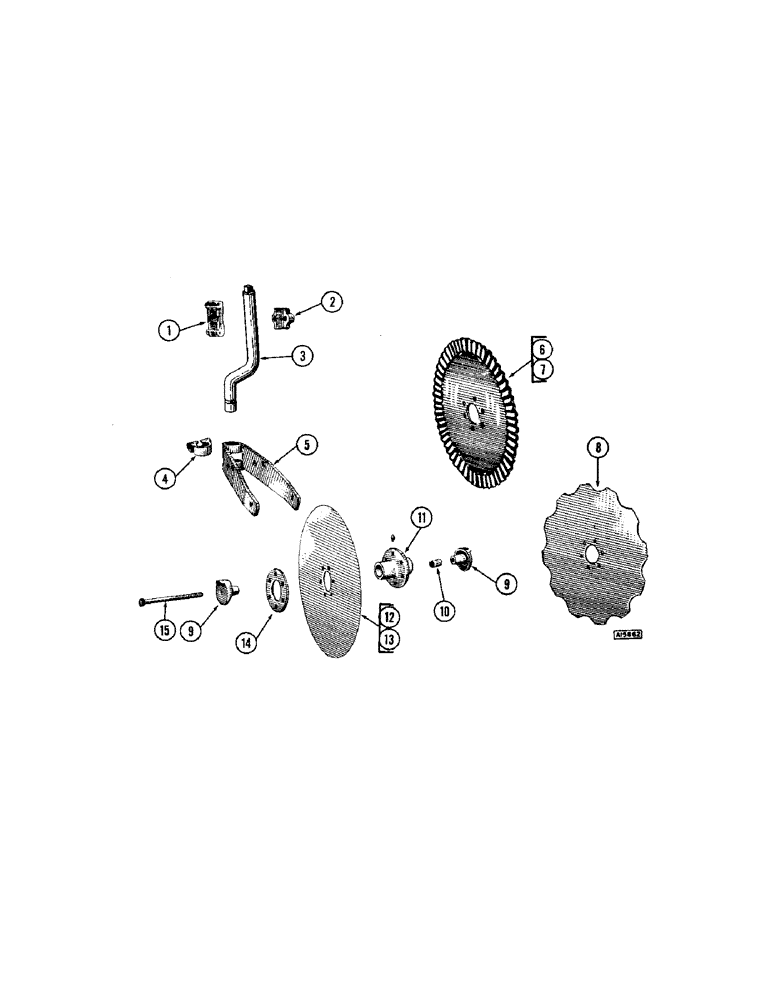

Запчасти Case IH JTA-SERIES (44) - ROLLING COULTER

1

T50250

CLAMP

- beam (YR. - 68-)

1шт.

13-1072

BOLT,Hex, 5/8" - 11 x 4-1/2", Gr 5

- 5/8" x 4-1/2" N.C. hex.

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

2

T17137

CAP

- beam clamp (YR. - 68-)

1шт.

3

T28052

STANDARD (YR. - 68-)

1шт.

4

W2774

CLAMP

- pivot (YR. - 68-)

1шт.

13-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

5

T28051

YOKE (YR. - 68-)

1шт.

6

T27035

BLADE

- 17" fluted (YR. - 68-)

1шт.

7

T32696

BLADE

- 20" fluted (.187 thick) (YR. - 68-)

1шт.

8

T13054

BLADE

- 18" notched (YR. - 68-)

1шт.

9

T1892

CONE

- bearing (YR. - 68-)

2шт.

10

T12711

SEAL

- bushing (YR. - 68-)

1шт.

11

T1814

HUB

(YR. - 68-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

1шт.

14-620

BOLT,Hex, 3/8" - 24 x 1-1/4", Gr 5

- 3/8" x 1-1/4" N.F. hex.

6шт.

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8"

6шт.

92-6

LOCK WASHER,3/8"

6шт.

12

T13053

PLOW DISC

BLADE - 18" plain (YR. - 68-)

1шт.

13

T31371

BLADE - 20" plain (YR. - 68-)

1шт.

14

T12707

WASHER

- hub (YR. - 68-)

1шт.

15

16-8116

LARGE PIN

BOLT - 1/2" x 7-1/4" N.F. hex. (YR. - 68-)

1шт.

131-9

LOCK NUT,Prev Torque, Hex, 1/2" - 20, Gr B

NUT - ESNA, 1/2" N.F. hex.

1шт.
