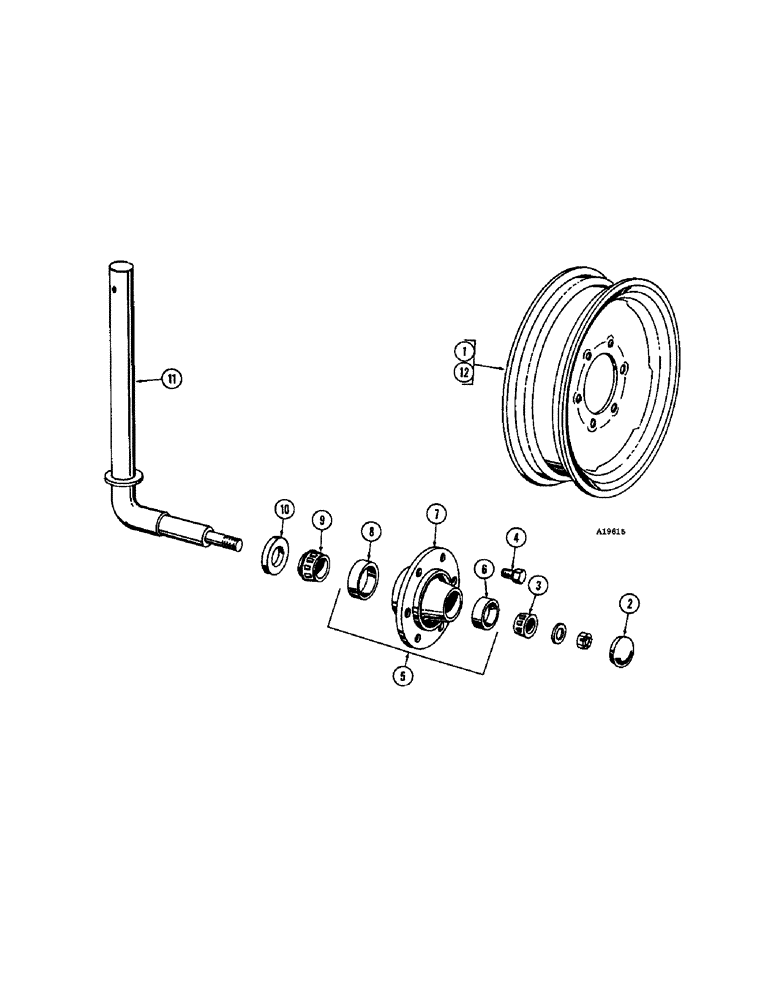

Запчасти Case IH JTA-SERIES (42) - REAR WHEEL AND AXLE

1

T25842

RIM

WHEEL - 14" (YR. - 68-)

1шт.

2

G47038

CAP

- hub (YR. - 68-)

1шт.

3

A30611

ROLLER BEARING

CONE - outer (YR. - 68-)

1шт.

4

A30064

BOLT

- wheel (YR. - 68-)

6шт.

5

T28066

HUB

- wheel (YR. - 68-)

1шт.

6

A30318

BEARING, CUP

CUP - outer (YR. - 68-)

1шт.

7

NSS

NOT SOLD SEPARAT

HUB (YR. - 68-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

1шт.

8

A29977

BEARING CUP

CUP - inner (YR. - 68-)

1шт.

9

T12256

TAPERED BEARING,1.375" ID x 2.717" OD x 1.0623"

CONE - inner (YR. - 68-)

1шт.

10

MTA2043S

OIL SEAL

SEAL - grease (YR. - 68-)

1шт.

11

T28065

AXLE

- rear (YR. - 68-72)

1шт.

11

T52969

AXLE, REAR

AXLE - rear (Repl. T28065 inter.) (YR. - 72-)

1шт.

132-71

COTTER PIN,5/32" x 1 1/4"

PIN - cotter, 1/8" x 1-1/4"

1шт.

195-2153

WASHER,1 13/16" x 3 1/2" x .134"

- 3-1/2" x 1-13/16" x 11 ga.

1шт.

195-45

WASHER,3/4"

1шт.

25-1312

SLOTTED NUT,3/4"-16, G5

NUT - hex slotted, 3/4"

1шт.

12

V13989

GEAR

WHEEL - 15" (YR. - 68-)

1шт.
