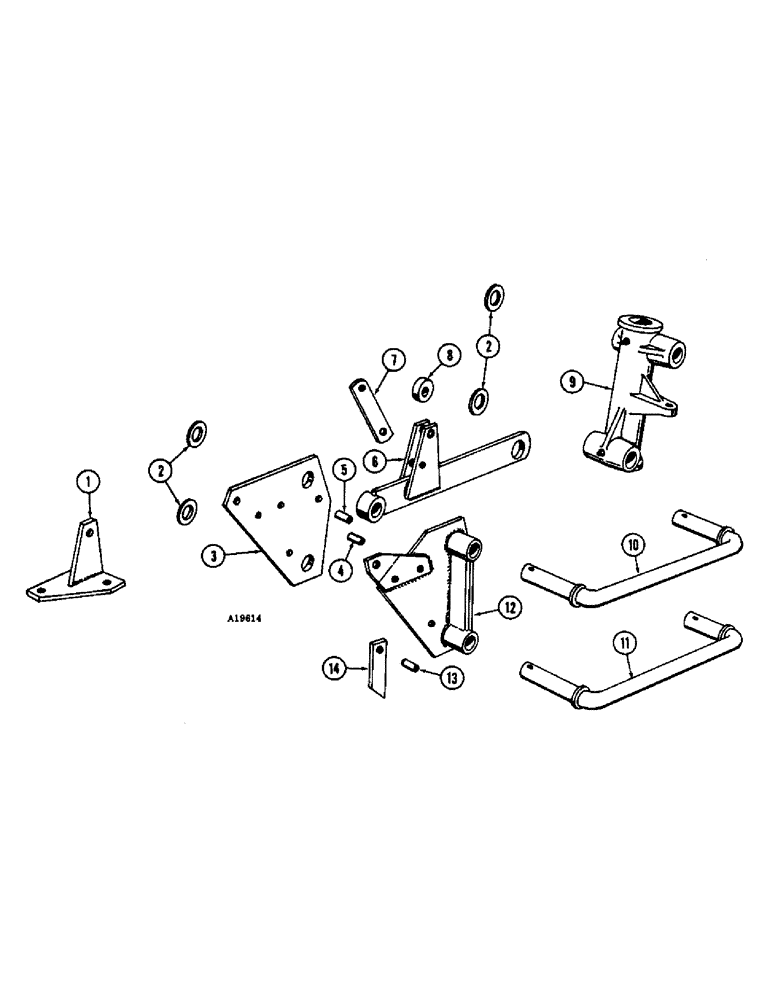

Запчасти Case IH JTA-SERIES (40) - REAR AXLE BRACKET, RIGID, TRIP

1

T28149

ANCHOR - ram, 14" (YR. - 68-)

1шт.

1

T28120

ANCHOR - ram, 16" (YR. - 68-)

1шт.

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8" x 5-3/4" N.C. hex.

3шт.

2

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x #12 ga. (Lift bar) (YR. - 68-)

4шт.

3

T28100

PLATE - rear wheel, R.H. (YR. - 68-)

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

2шт.

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8" x 4-1/4" N.C. hex.

1шт.

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Rigid) Hex, 1/2"-13 x 4", G5

1шт.

13-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

(Trip) Hex, 1/2"-13 x 4", G5

2шт.

25-1010

NUT,5/8"-11, G5

3шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Rigid)

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex. (Trip)

2шт.

4

O440N

SPACER - plate (Rigid) (YR. - 68-)

1шт.

5

Y301

SPACER - plate (YR. - 68-)

1шт.

6

T28056

ARM - rear lift (YR. - 68-)

1шт.

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

7

T28058

LINK - lift, cylinder (YR. - 68-)

1шт.

195-2085

WASHER

- 1-1/2" x 13/16" x 16 ga.

4шт.

8

T28057

STOP

- lift link (YR. - 1968)

1шт.

8

T38405

STOP

- lift link (Repl. T28057 inter) (YR. - 69-)

1шт.

9

T1877

BRACKET - pivot, rear axle (YR. - 68)

1шт.

85-1648

SET SCREW - 1" x 3"

1шт.

25-1416

NUT,Jam, 1"-8, G5

- jam, 1" N.C. hex.

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

2шт.

10

T28063

BAR

- lift, upper (YR. - 1968)

1шт.

10

T38364

BAR

- lift, upper (Repl. T28063 inter) (YR. - 69-)

1шт.

195-2181

WASHER,1 13/16" x 2 1/2" x .238"

- 2-1/2" x 1-13/16" x 1/4"

2шт.

132-204

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/8" x 3"

2шт.

11

T38366

BAR - lift, lower (YR. - 68-)

1шт.

195-2181

WASHER,1 13/16" x 2 1/2" x .238"

- 2-1/2" x 1-13/16" x 1/4"

2шт.

132-204

SPLIT PIN/SAFETY PIN

PIN - cotter, 3/8" x 3"

2шт.

12

T28105

PLATE

- rear wheel, L.H. (YR. - 1968)

1шт.

12

T38363

PLATE

- rear wheel, L.H. (Repl. 28105 inter.) (YR. - 69-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease

2шт.

13

T28185

SPACER - plate (Rigid) (YR. - 68-)

1шт.

14

T28159

BLOCK - stop, rear bottom (Rigid) (YR. - 68-)

1шт.
