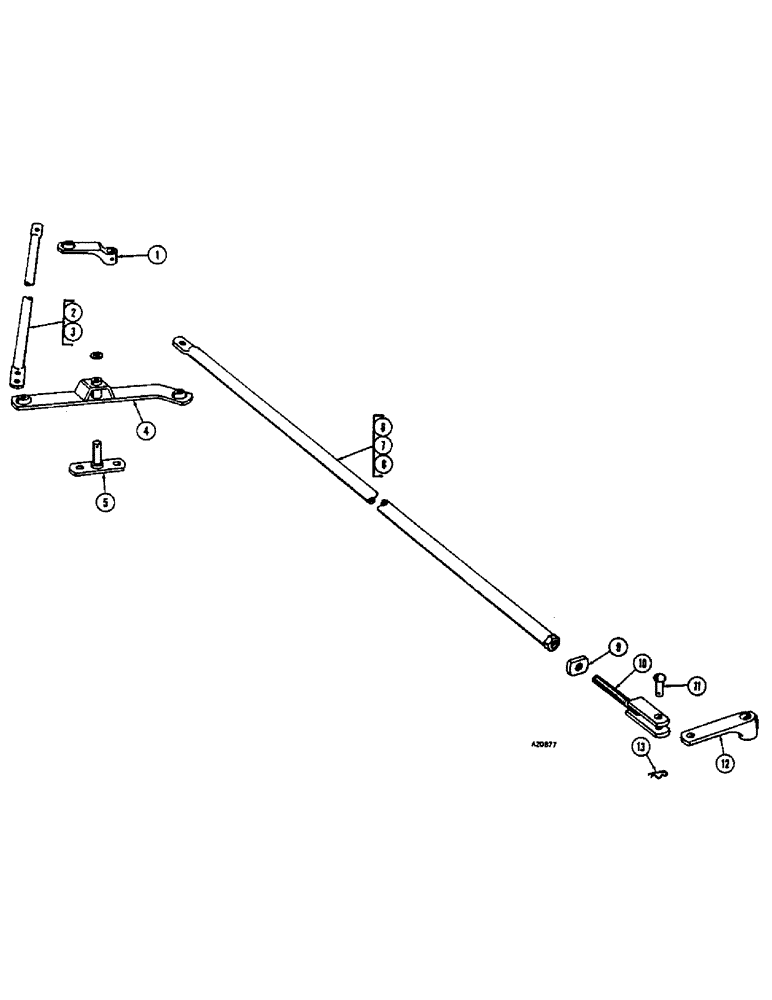

Запчасти Case IH JTA-SERIES (38) - STEERING PIPE, IN THE FURROW HITCH

1

T37230

ARM - steering, rear (YR. - 68-)

1шт.

135-403

PIN - groove

1шт.

85-1024

SET SCREW - 5/8" x 1-1/2"

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8"

1шт.

2

T37633

PIPE - steering, rear (4, 5 and 6 bottom) (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. Z.P.

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

3

T37634

PIPE - steering, rear (7 bottom) (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. Z.P.

2шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

129-108

NUT,3/4"-10, G5

2шт.

4

T37218

ARM - pivot, center (YR. - 68-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

5

T37216

PIVOT - center (YR. - 68-)

1шт.

195-2142

WASHER,1 17/32" x 2 1/16" x .109"

- 2-1/16" x 1-17/32" x 12 ga.

1шт.

195-2073

WASHER,0.69" ID x 1.25" OD x 0.07" Thk

- 1-1/4" x 11/16" x #10 ga.

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

1шт.

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8" x 5-3/4" N.C. hex.

2шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

25-1010

NUT,5/8"-11, G5

2шт.

6

T37225

PIPE - steering, front (4 bottom) (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

7

T37227

PIPE - steering, front (5 bottom) (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

8

T37220

PIPE - steering, front (6 and 7 bottom) (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

9

T28089

STRAP - lock (YR. - 68-)

1шт.

10

T37223

ROD - adjusting (YR. - 68-)

1шт.

11

T28115

RIVET

- drilled, 1" x 3" rd. hd. (YR. - 68-)

1шт.

12

T2137

ARM - steering, front (YR. - 68-)

1шт.

85-1020

SET SCREW,Sq Hd, 5/8"-11 x 1 1/4"

- 5/8" x 1-1/4"

1шт.

126-48

WOODRUFF KEY,#29, 3/8" x 2 1/8"

KEY - Woodruff

1шт.

13

T25682

SPLIT PIN

COTTER - hairpin (YR. - 68-)

1шт.
