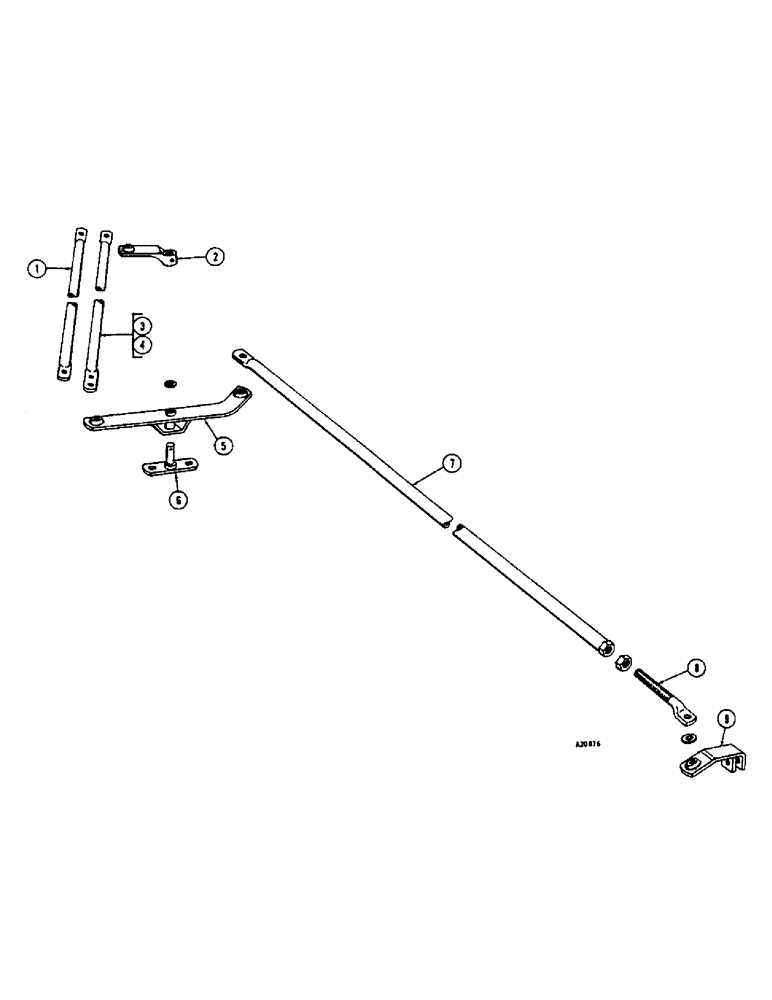

Запчасти Case IH JTA-SERIES (36) - STEERING PIPE, ON LAND HITCH
№
Артикул
Название
Примечание
Количество
1
T37632
PIPE - steering, rear (5 bottom) (YR. - 68-)
1шт.
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4" x 2-3/4" N.C. Z.P.
1шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
129-108
NUT,3/4"-10, G5
1шт.
2
T37230
ARM - steering, rear (YR. - 68-)
1шт.
135-403
PIN - groove
1шт.
85-1024
SET SCREW - 5/8" x 1-1/2"
1шт.
425-1410
JAM NUT,Jam, 5/8"-11, G5
- jam, 5/8"
1шт.
3
T37633
PIPE - steering, rear (6 bottom) (YR. - 68-)
1шт.
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4" x 2-3/4" N.C. Z.P.
1шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
129-108
NUT,3/4"-10, G5
1шт.
4
T37634
PIPE - steering, rear (7 bottom) (YR. - 68-)
1шт.
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4" x 2-3/4" N.C. Z.P.
2шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
2шт.
129-108
NUT,3/4"-10, G5
2шт.
5
T37218
ARM - pivot, center (YR. - 68-)
1шт.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, 1/4"-28 NPT x .54" lg
1шт.
6
T37216
PIVOT - center (YR. - 68-)
1шт.
195-2142
WASHER,1 17/32" x 2 1/16" x .109"
- 2-1/16" x 1-17/32" x #12 ga.
1шт.
195-2073
WASHER,0.69" ID x 1.25" OD x 0.07" Thk
- 1-1/4" x 11/16" x #10 ga.
2шт.
132-201
PIN
- cotter, 3/8" x 2-1/4"
1шт.
13-1092
BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5
- 5/8" x 5-3/4" N.C. hex.
2шт.
25-1010
NUT,5/8"-11, G5
2шт.
7
T37460
PIPE - steering, front (5, 6 and 7 bottom) (YR. - 68-)
1шт.
113-730
BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5
- 3/4" x 2-3/4" N.C. Z.P.
1шт.
192-27
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
129-108
NUT,3/4"-10, G5
1шт.
8
T36699
ROD - adjusting (YR. - 68-)
1шт.
25-1418
NUT,Jam, 1 1/8"-7, G5
- jam, 1-1/8"
1шт.
195-2190
WASHER - 2" x 13/16" x 1/4"
1шт.
13-1248
BOLT,Hex, 3/4" - 10 x 3", Gr 5
1шт.
92-12
LOCK WASHER,3/4"
WASHER, LOCK, 3/4"
1шт.
25-1012
NUT,3/4"-10, G5
1шт.
9
T36755
ARM - steering, front (YR. - 68-)
1шт.
13-1052
BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5
1шт.
25-1010
NUT,5/8"-11, G5
1шт.
Выбрано товаров: 39
