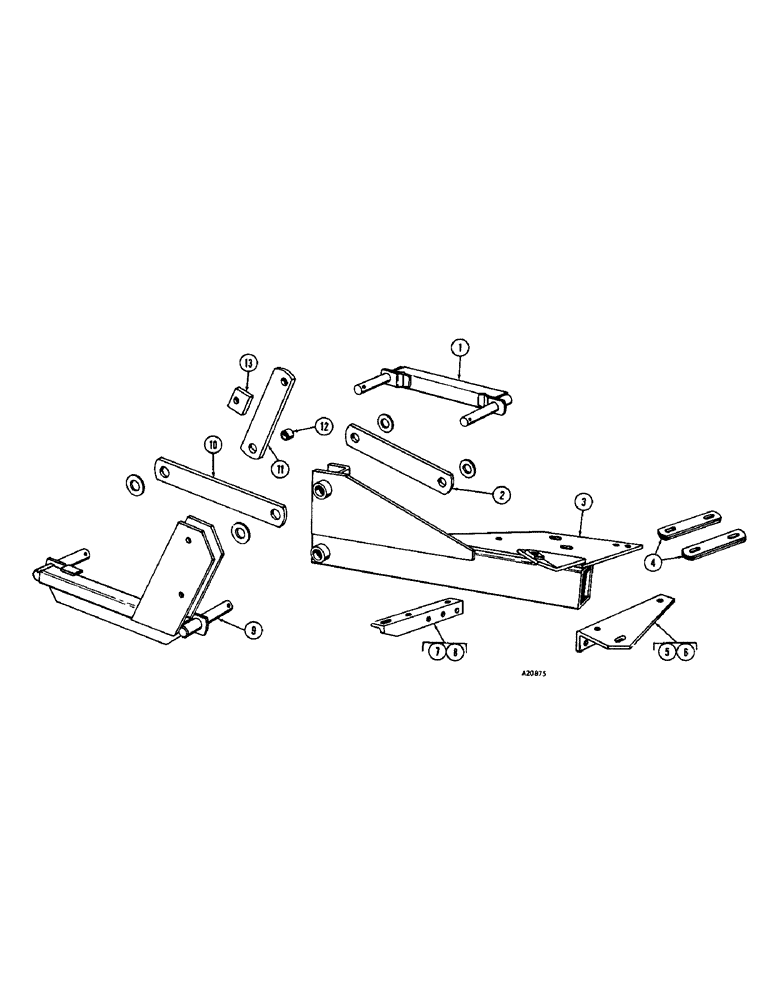

Запчасти Case IH JTA-SERIES (34) - FRONT WHEEL LINKAGE, ON LAND HITCH

1

T36801

ARM

- pivot, top (YR. - 68-69)

1шт.

1

T51373

ARM

- pivot, top (Repl. T36801) (YR. - 70-)

1шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x #12 ga.

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.

2

T37481

STRAP - bottom link (YR. - 68-69)

1шт.

2

T51315

STRAP - bottom link (Repl. T37481) (YR. - 70-)

1шт.

3

T37448

BRACKET - hitch (On land) (YR. - 68-)

1шт.

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

195-45

WASHER,3/4"

1шт.

13-10108

BOLT,Hex, 5/8" - 11 x 6-3/4", Gr 5

- 5/8" x 6-3/4" N.C. hex.

4шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

95-10

WASHER,5/8"

- 1-3/4" x 11/16" x #10 ga.

3шт.

4

T37476

SPACER - (Not required on JRA & JTA - 6 btm.) (YR. - 68-)

2шт.

5

T37475

ANGLE - rear support, 14" (YR. - 68-)

1шт.

6

T37458

ANGLE - lower rear brace mounting, 16" (YR. - 68-)

1шт.

7

T37474

ANGLE - front support, 14" (YR. - 68-)

1шт.

8

T37457

ANGLE - lower front brace mounting, 16" (YR. - 68-)

1шт.

9

T36804

ARM

- pivot, bottom (YR. - 68-69)

1шт.

9

T51374

ARM

- pivot, bottom (Repl. T36804) (YR. - 70-)

1шт.

195-2156

WASHER,1 13/16" x 2 3/4" x .109"

- 2-3/4" x 1-13/16" x #12 ga.

2шт.

132-201

PIN

- cotter, 3/8" x 2-1/4"

2шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

10

T36853

STRAP

- upper link (YR. - 68-69)

1шт.

10

T51314

STRAP

- upper link (Repl. T36853) (YR. - 70-)

1шт.

11

T36751

ANCHOR - ram (YR. - 68-)

1шт.

12

T36752

SPACER - ram anchor (YR. - 68-)

1шт.

13

T36704

BLOCK - anchor (YR. - 68-)

1шт.
