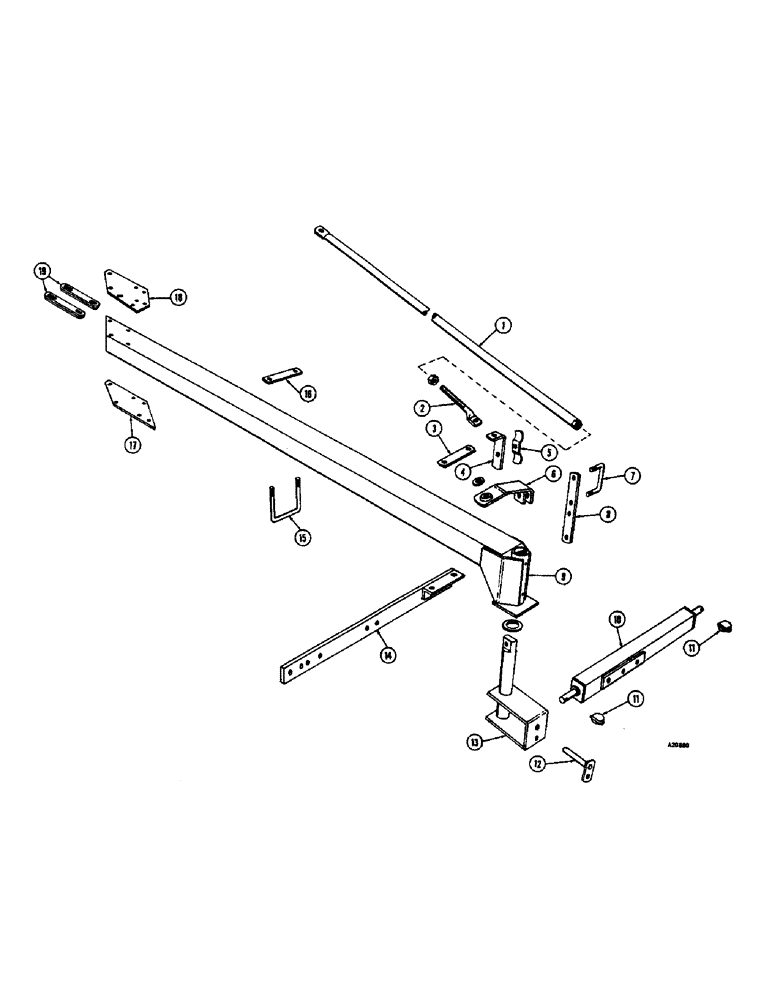

Запчасти Case IH JTA-SERIES (30) - TONGUE SUPPORT AND FRONT STEERING, ON LAND HITCH

1

T37460

PIPE - front steering (YR. - 68-)

1шт.

113-730

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

- 3/4" x 2-3/4" N.C. hex., Z.P.

1шт.

192-27

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

129-108

NUT,3/4"-10, G5

1шт.

2

T36699

ROD - adjusting (YR. - 68-)

1шт.

25-1418

NUT,Jam, 1 1/8"-7, G5

- jam, 1-1/8"

1шт.

195-2190

WASHER - 2" x 13/16" x 1/4"

1шт.

13-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

3

T37467

STRAP (YR. - 68-)

1шт.

4

T37482

BRACKET - hose (YR. - 68-)

1шт.

5

T18079

CLAMP - hose (YR. - 68-)

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" wing, Z.P.

1шт.

6

T36755

ARM - steering (YR. - 68-)

1шт.

13-1052

BOLT,Hex, 5/8" - 11 x 3-1/4", Gr 5

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

7

T32870

HOLDER - hose (YR. - 68-)

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8"

4шт.

8

T36747

STRAP (YR. - 68-)

1шт.

13-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5, Full Thd

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

25-1010

NUT,5/8"-11, G5

1шт.

9

T37453

TONGUE (YR. - 68-)

1шт.

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8"

2шт.

10

T36818

DRAWBAR (YR. - 68-)

1шт.

11

A33509

PIN,11.18mm OD

- keeper (YR. - 68-)

2шт.

12

T36735

PIN - pivot (YR. - 68-)

1шт.

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

- 1/2" x 3/4" N.C. hex.

1шт.

92-8

LOCK WASHER,1/2"

1шт.

13

T36828

PIVOT - hitch (YR. - 68-)

1шт.

14

T37468

SUPPORT - hitch (YR. - 68-)

1шт.

13-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- 3/4" x 7-1/2" N.C. hex.

2шт.

13-1268

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- 3/4" x 4-1/4" N.C. hex.

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

25-1012

NUT,3/4"-10, G5

4шт.

15

T37479

"U" BOLT (YR. - 68-)

1шт.

195-45

WASHER,3/4"

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

16

T32847

STRAP (YR. - 68-)

1шт.

17

T37451

PLATE - bottom (YR. - 68-)

1шт.

18

T37473

PLATE - top (YR. - 68-)

1шт.

13-10104

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

- 5/8" x 6-1/2" N.C. hex.

6шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

25-1010

NUT,5/8"-11, G5

6шт.

13-12112

BOLT,Hex, 3/4" - 10 x 7", Gr 5

2шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

95-10

WASHER,5/8"

- plain 5/8"

1шт.

25-1012

NUT,3/4"-10, G5

2шт.

19

T37476

SPACER - (Not required on JRA & JTA 6 bottom) (YR. - 68-)

2шт.
