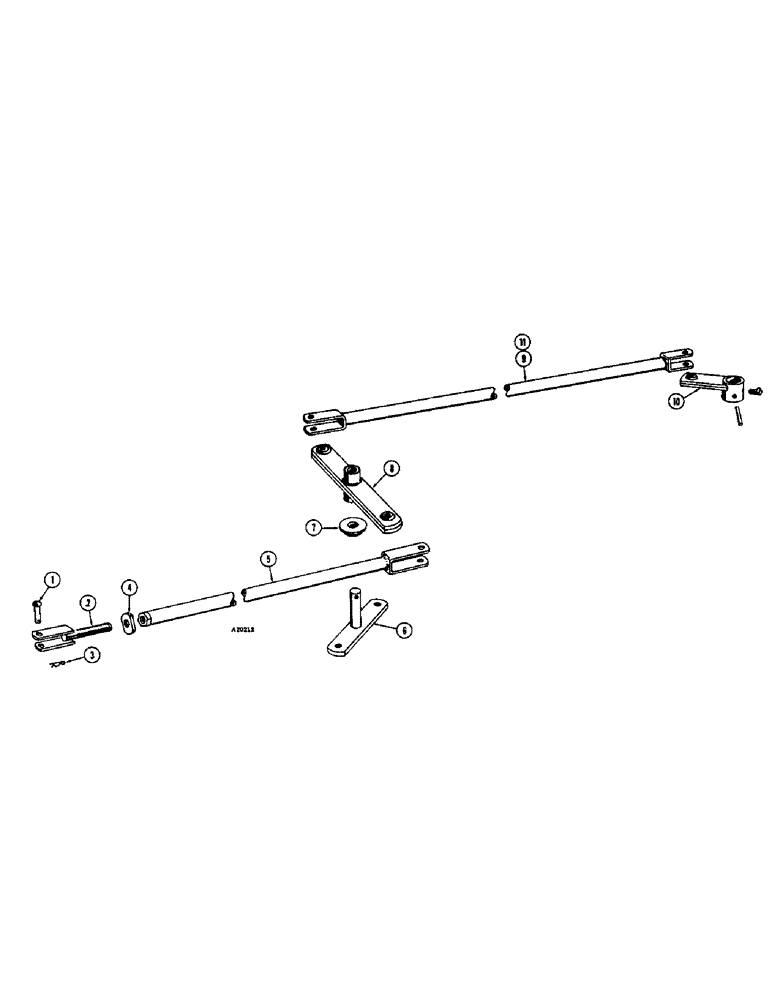

Запчасти Case IH JTA-SERIES (28) - STEERING PIPE, JRA AND JTA, 6 BOTTOM, TO CONVERT 6 BOTTOM TO 7 BOTTOM

1

T28115

RIVET

- drilled, 1" x 3" rd. hd. (YR. - 66-67)

1шт.

2

T28111

ROD - adjusting (YR. - 66-67)

1шт.

3

T25682

SPLIT PIN

HAIRPIN - cotter (YR. - 66-67)

1шт.

4

T28089

STRAP - lock, R.H. (YR. - 66-67)

1шт.

5

T34706

PIPE - steering, front - 6 bottom only (YR. - 66-67)

1шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

1шт.

129-107

NUT,5/8"-11, G5

1шт.

6

T28154

PIVOT - center, 14" bottoms (YR. - 66-67)

1шт.

6

T28124

PIVOT - center, 16" bottoms (YR. - 66-67)

1шт.

113-650

BOLT,Hex, 5/8" - 11 x 6-1/2", Gr 5

2шт.

129-107

NUT,5/8"-11, G5

2шт.

132-182

PIN

- cotter, 5/16" x 2"

1шт.

7

T28126

SPACER - pivot arm (YR. - 66-67)

1шт.

8

T34419

ARM - pivot, center (YR. - 66-67)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

9

T34727

PIPE - steering, rear (YR. - 66-67)

1шт.

113-621

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

2шт.

129-107

NUT,5/8"-11, G5

2шт.

10

T33901

ARM - steering (YR. - 66-67)

1шт.

85-1048

SET SCREW,Sq Hd, 5/8"-11 x 3"

- 5/8" x 3"

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8"

1шт.

135-403

PIN - groove

1шт.

11

T36629

PIPE - steering, rear - 7 bottom only (YR. - 66-67)

1шт.

This part required to convert JRA and JTA 6 bottom to 7 bottom.

1шт.
