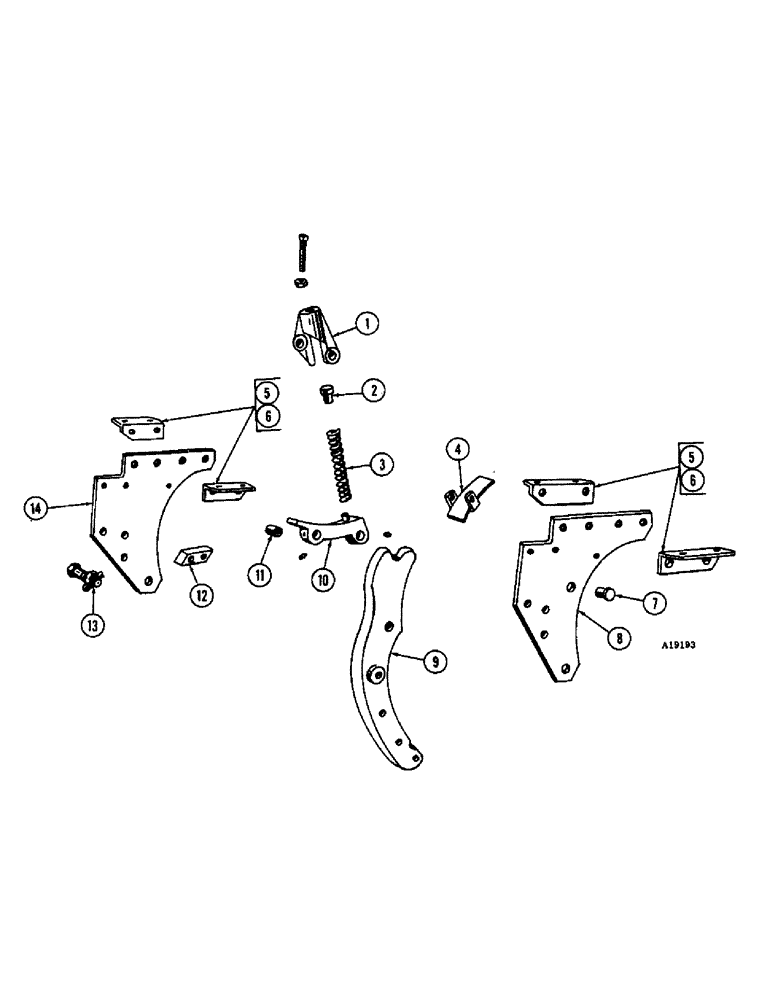

Запчасти Case IH JTA-SERIES (26) - TRIP STANDARD AND BRACKETS, 14 INCH, 16 INCH

1

T1503

RETAINER

- spring (YR. - 66-)

1шт.

2

T1501

SEAT

- adjusting screw (YR. - 66-69)

1шт.

2

T50253

SEAT

- adjusting screw (YR. - 70-)

1шт.

181-803

SET SCREW,Sq Hd, 5/8"-11 x 2 1/2"

- 5/8" x 2-1/4" N.C. sq. hd.

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

- jam, 5/8" N.C.

1шт.

3

T24019

VALVE SPRING

SPRING - beam latch (YR. - 66-)

1шт.

4

T28108

BRACKET - shield (YR. - 66-)

1шт.

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- 3/8" x 3" N.C. hex.

1шт.

195-2031

WASHER

- 7/8" x 13/32" x #20 ga.

1шт.

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

5

T28148

ANGLE - beam brace (14") (YR. - 66-)

2шт.

6

T28097

ANGLE - beam brace (16") (YR. - 66-)

2шт.

7

353-20

PLUG

CAPLUG (YR. - 66-)

1шт.

8

T28098

PLATE

- beam, R.H. (YR. - 66-)

1шт.

9

T26289

STANDARD (YR. - 66-)

1шт.

10

T17982

LATCH

- spring (YR. - 66-)

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

219-43

LUBE NIPPLE,65 Degree Elbow, 1/4" - 28 NPTF

FITTING - 1/4" x 67 degrees (Rear latch only)

1шт.

11

T17981

BUSHING - beam latch (YR. - 66-)

1шт.

12

T28106

BLOCK - stop (YR. - 66-)

1шт.

13

T62182

BLOCK AND NUT ASSEM. - (Consists of (1) T28252 bolt, (1) 25-1316 nut and (1) 132-97 cotter) (YR. - 66-)

1шт.

14

T28099

PLATE

- beam, L.H. (YR. - 66-)

1шт.
