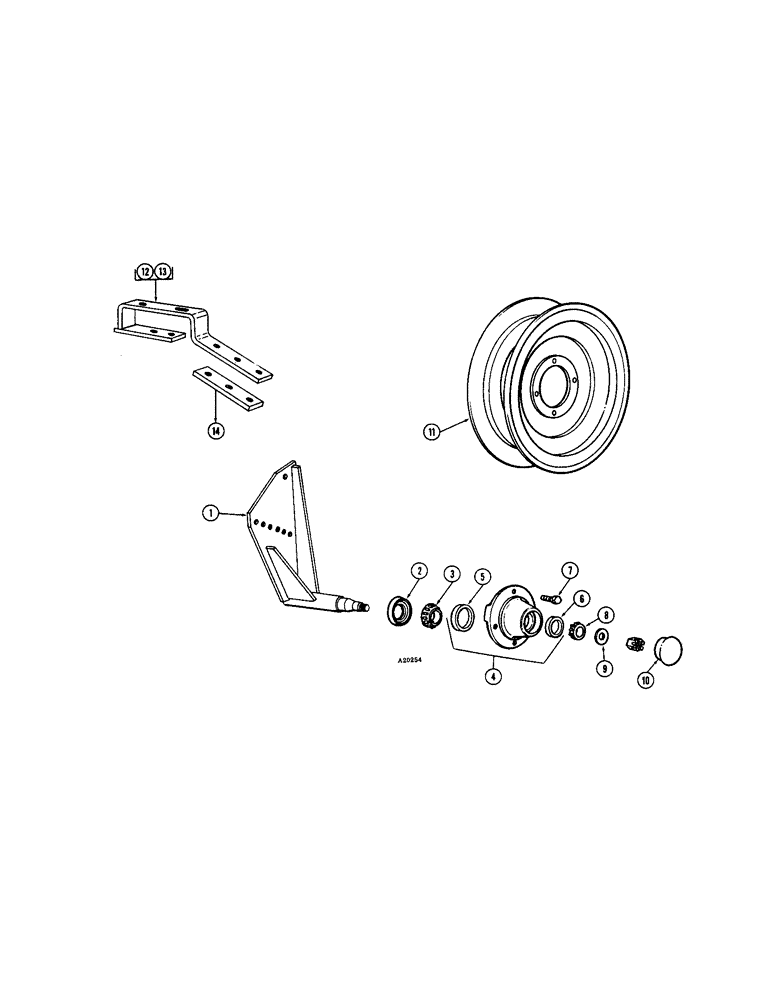

Запчасти Case IH JTA-SERIES (24) - GAUGE WHEEL AND AXLE

1

T32914

AXLE - gauge wheel (YR. - 68-)

1шт.

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - 5/8" N.F. hex.

1шт.

132-48

COTTER PIN,1/8" x 1"

Pin, Split (Cotter), 1/8" x 1"

1шт.

2

B13281

SEAL,38.1mm ID x 59.23mm OD x 10.31mm Thk

(YR. - 68-)

1шт.

3

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - inner (YR. - 68-)

1шт.

4

T34308

HUB ASSY.

HUB - w/cups (YR. - 68-)

1шт.

5

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - bearing, inner (YR. - 68-)

1шт.

6

B12410

BEARING, CUP,1.782" OD

CUP - bearing, outer (YR. - 68-)

1шт.

7

A30064

BOLT

- hub (YR. - 68-)

4шт.

8

B12411

ROLLER BEARING,0.75" ID x 0.655"

CONE - bearing, outer (YR. - 68-)

1шт.

9

195-41

WASHER,5/8"

- 1-5/16" x 21/32" x 13 ga. (YR. - 68-)

1шт.

10

MT2560S

CAP

- hub (YR. - 68-)

1шт.

11

F60951

WHEEL

- gauge, 6:70 X 15 (YR. - 68-)

1шт.

11

T25852

RIM

WHEEL - gauge, 14" (YR. - 68-)

1шт.

12

T34286

BRACKET - ga. wheel (14" JRA & JTA - 4 & 5 btm.) (YR. - 68-)

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

2шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

3шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga.

3шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

95-12

WASHER,3/4"

- 2" x 13/16" x #9 ga.

1шт.

13

T34284

BRACKET - ga. wheel (16" JRA & JTA - 4, 5, 6 btm.) (YR. - 68-)

1шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

2шт.

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8" x 4-3/4" N.C. hex.

3шт.

195-2075

WASHER,11/16" x 1 1/2" x 109"

- 1-1/2" x 11/16" x 12 ga.

3шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

5шт.

25-1010

NUT,5/8"-11, G5

5шт.

13-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

13-1244

BOLT,Hex, 3/4" - 10 x 2-3/4", Gr 5

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

25-1012

NUT,3/4"-10, G5

2шт.

95-12

WASHER,3/4"

- 2" x 13/16" x #9 ga.

1шт.

14

T34289

SPACER - 16" JRA & JTA - 4, 5 & 6 bottom (YR. - 68-)

1шт.
