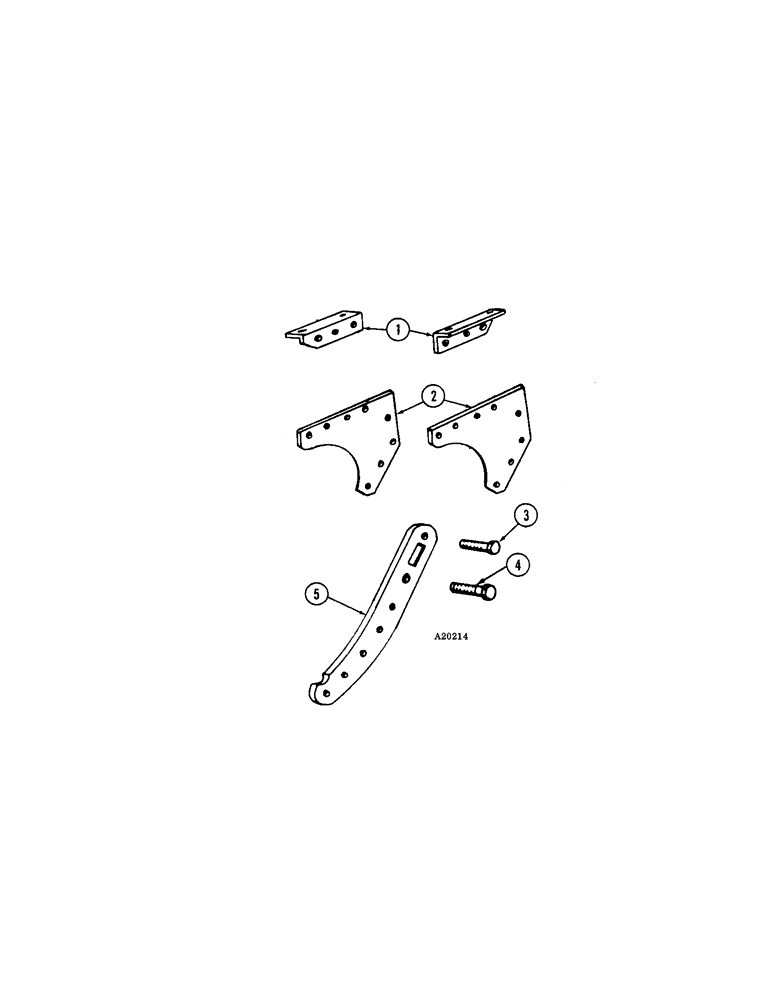

Запчасти Case IH JTA-SERIES (24[1]) - SHEAR BOLT, STANDARD AND BRACKET, PARTS TO CONVERT JRA 6 BOTTOM TO 7 BOTTOM

1

T28097

ANGLE - rear beam brace (YR. - 66-)

2шт.

2

T28155

PLATE - beam, rear (YR. - 66-)

2шт.

13-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

- 5/8" x 3-1/2" N.C. hex.

1шт.

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8" x 3-3/4" N.C. hex.

2шт.

13-1068

BOLT,Hex, 5/8" - 11 x 4-1/4", Gr 5

- 5/8" x 4-1/4" N.C. hex.

1шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25-1010

NUT,5/8"-11, G5

4шт.

3

T24254

BOLT

- shear (YR. - 66-)

1шт.

92-8

LOCK WASHER,1/2"

1шт.

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

1шт.

4

T14248

BOLT - 3/4" x 3-1/4" N.C. hex. (YR. - 66-)

1шт.

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

25-1012

NUT,3/4"-10, G5

1шт.

5

T24256

STANDARD (YR. - 66-)

1шт.
