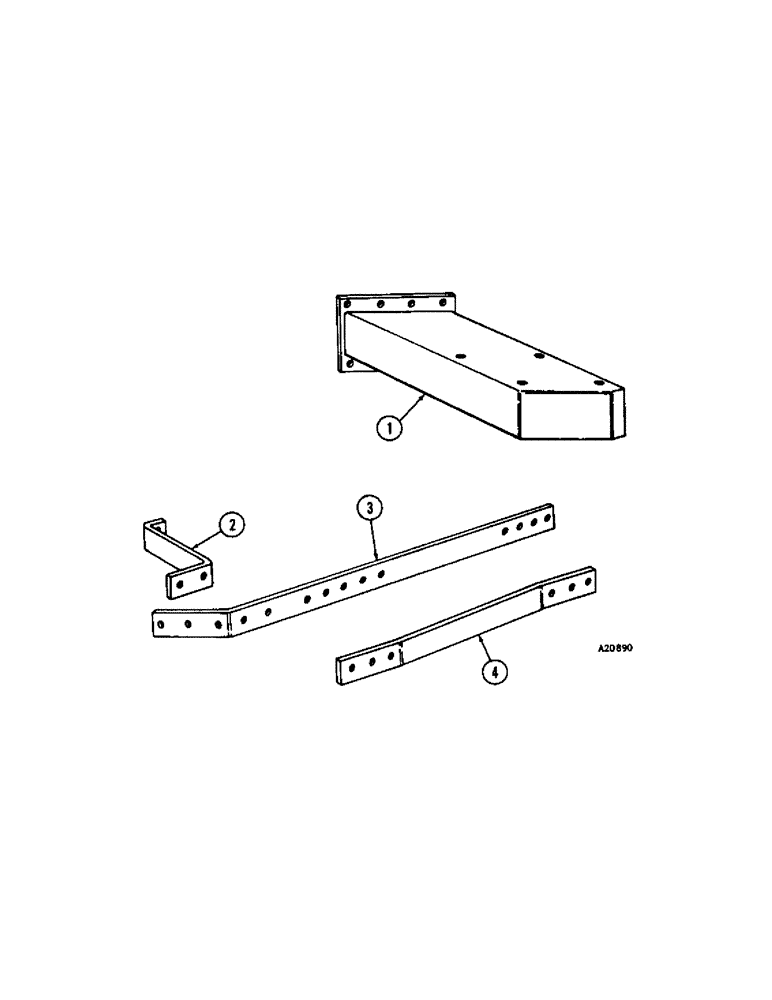

Запчасти Case IH JTA-SERIES (20[1]) - FRAME EXTENSION AND BEAMS, TO CONVERT 4 BTM. TO 5 BTM. AND 5 BTM. TO 6 BTM., 16 INCHES

1

T37269

EXTENSION - rear beam brace (YR. - 68-)

1шт.

13-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

8шт.

13-1084

BOLT,Hex, 5/8" - 11 x 5-1/4", Gr 5

- 5/8" x 5-1/4" N.C. hex.

4шт.

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

25-1010

NUT,5/8"-11, G5

12шт.

2

T28078

BRACE - #4 and #5 beam (YR. - 68-)

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

1шт.

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8" x 2-3/4" N.C. hex.

2шт.

25-1010

NUT,5/8"-11, G5

3шт.

3

T28074

BEAM - #4 and #5 (YR. - 68-)

1шт.

4

T35660

BRACE - offset (YR. - 68-)

1шт.

13-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

- 5/8" x 4" N.C. hex.

3шт.

25-1010

NUT,5/8"-11, G5

3шт.
