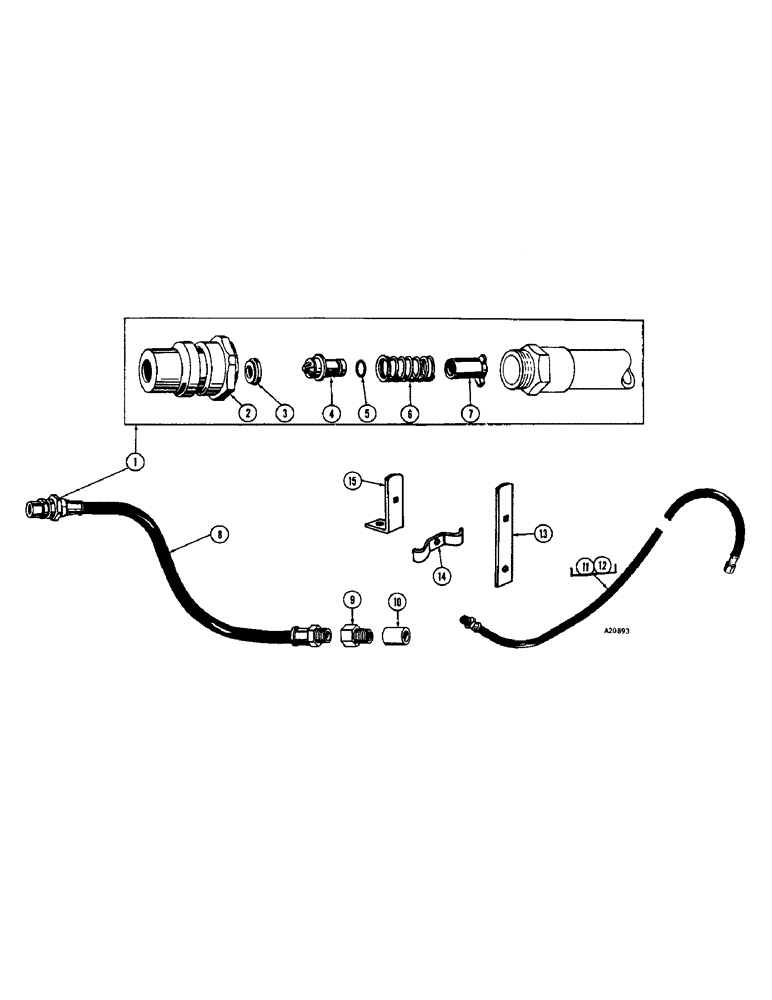

Запчасти Case IH JRA-SERIES (48[1]) - HYDRAULIC HOSES AND BREAK-AWAY COUPLINGS

4

A27508

PISTON

- coupling plug (YR. - 68-)

1шт.

5

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

"O" RING - piston sleeve (YR. - 68-)

1шт.

6

A27351

SPRING

- piston (YR. - 68-)

1шт.

7

51200858

SLEEVE

- coupling plug piston (YR. - 68-)

1шт.

8

A20817

HOSE

- hydraulic, w/fittings to convert 106" & 118" to 224" & 236" (6 bottom in furrow hitch and 5 bottom on land hitch) (YR. - 68-69)

1шт.

8

T50249

WELDABLE LUG

HOSE - hydraulic, w/fittings to convert 106" & 118" to 224" & 236" (6 bottom in furrow hitch and 5 bottom land hitch) (YR. - 70-)

1шт.

8

O8588AB

HOSE - hydraulic, w/fittings to convert 106" & 118" to 174" & 186" (4 btm. in furrow hitch) (YR. - 68-69)

1шт.

8

T50247

HOSE - hydraulic, w/fittings to convert 106" & 118" to 174" & 186" (4 btm. in furrow hitch) (YR. - 70-)

1шт.

8

A20816

HOSE

- hydraulic, w/fittings to convert 106" & 118" to 198" & 210" (5 btm. in furrow hitch) (YR. - 68-69)

1шт.

8

T50248

HOSE - hydraulic, w/fittings to convert 106" & 118" to 198" & 210" (5 btm. in furrow hitch) (YR. - 70-)

1шт.

9

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

PLUG - adapter (7/8" - 18 female thrd. & 1/2" std. pipe thrd.) (YR. - 68-69)

1шт.

10

221-1338

COUPLING,Pipe, 1/2" NPT

- 1/2" pipe (YR. - 68-69)

1шт.

11

T21544

HOSE - hydraulic (1/2" x 32" w/1/2" pipe thrds.) (YR. - 68-)

1шт.

12

T21545

HOSE ASSY.

HOSE - hydraulic (1/2" x 26" w/1/2" pipe thrds.) (YR. - 68-)

1шт.

13

T28130

BRACKET - hose (YR. - 68-)

1шт.

14

T18079

CLAMP - hose (YR. - 68-)

1шт.

129-410

WING NUT,3/8"-16

NUT - 3/8" wing, Z.P.

1шт.

111-317

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1", G2

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

15

T28121

BRACKET - hose (YR. - 68-)

1шт.
