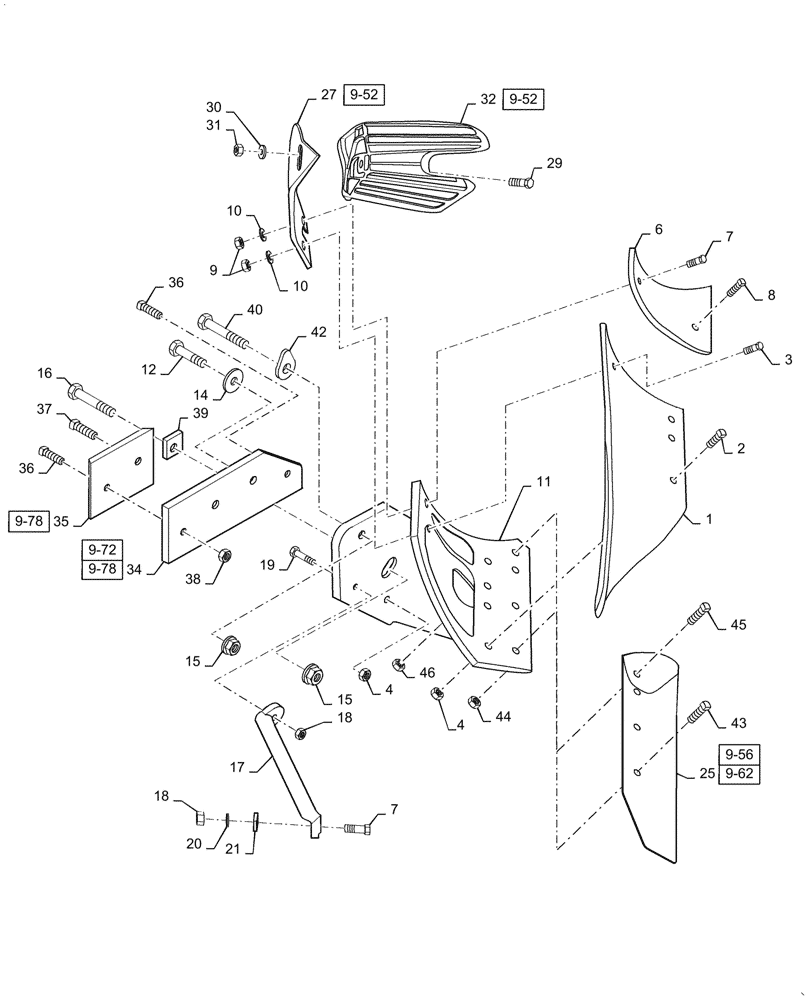

Запчасти Case IH HSCXT (9-02) - BOTTOM ASSEMBLY, MOLDBOARD (HSCXK, HSCXT) HSCXK AND HSCXT, SUPER CHIEF HIGH SPEED

1

96000C2

MOLDBOARD

high speed, solid steel, right hand (HSCXT)

1шт.

1

95999C1

MOLDBOARD

high speed, solid steel, left hand (HSCXT), not illustrated

1шт.

1

1284100C1

MOLDBOARD

high speed, hardened solid steel, left hand (HSCXK), not illustrated

1шт.

1

132000C2

MOLDBOARD

high speed, hardened solid steel, right hand (HSCXK)

1шт.

2

131972C2

BOLT,Spcl Hd, 7/16" - 14 x 15mm Thd RH

BOLT special, 7/16 x 1-3/16

3шт.

3

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT special, 7/16 x 1-3/32

2шт.

4

429-107

NUT,7/16"-14, G8

RH

5шт.

6

132001C1

SHIN

hardened solid steel, right hand

1шт.

6

1284101C1

LANDSIDE

SHIN, hardened solid steel, left hand, not illustrated

1шт.

7

131972C2

BOLT,Spcl Hd, 7/16" - 14 x 15mm Thd RH

BOLT special, 7/16 x 1-3/16

3шт.

8

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT special, 7/16 x 1-3/32

1шт.

9

429-107

NUT,7/16"-14, G8

2шт.

10

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

15/32 x 1 x 3/64

2шт.

11

224130C2

FROG, SADDLE FROG

FROG, moldboard, right hand

1шт.

11

1284103C2

SUPPORT

FROG, moldboard, left hand, not illustrated

1шт.

12

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

2шт.

14

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

1шт.

15

1256884C1

NUT

flange, special, 5/8, 8

4шт.

16

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

2шт.

17

132002C1

BRACE

moldboard, right hand frog

1шт.

17

1284102C1

SUPPORT

BRACE, moldboard, left hand frog, not illustrated

1шт.

18

429-107

NUT,7/16"-14, G8

1шт.

19

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2, 8

1шт.

20

495-81009

WASHER,.469" x 1" x .120"

15/32 x 1 x 1/8

1шт.

21

490663R1

SQ HOLE WASHER,12.7mm ID x 31.75mm OD x 9.65mm Thk

Serrated HSCU Only

1шт.

25

REF

INSTRUCTION

SHARE, moldboard, see Fig. 9-56, 9-62

1шт.

27

REF

INSTRUCTION

BRACKET, trash plate, see page 9-52

1шт.

29

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, plow, 3/8 x 1-1/2 Round Head

2шт.

30

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

13/32 x 1 x 7/64"

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

32

REF

INSTRUCTION

PLATE, trash, right hand, see page 9-52

1шт.

34

REF

INSTRUCTION

LANDSIDE, standard, right hand, see Fig. 9-72, 9-78

1шт.

35

REF

INSTRUCTION

PAD, wear, landside, see page 9-78

2шт.

36

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT, special, 7/16 x 1-3/32

2шт.

37

59056C3

PLOW BOLT

BOLT, special, 7/16 x 2

1шт.

38

429-107

NUT,7/16"-14, G8

3шт.

39

58994C1

PLATE,SMALL SQUARE

BLOCK, landside stop

1шт.

40

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

42

1256864C2

WASHER

1шт.

43

463988R41

PLOW BOLT

LH Threads, 7/16 x 1-3/16

3шт.

44

125-10006

NUT,7/16"-14, G5, LH

Incl In 43

3шт.

45

463989R41

BOLT

LH Threads, 1/2 x 1-17/64

1шт.

46

470916R1

SPECIAL NUT

Incl In 45

1шт.
