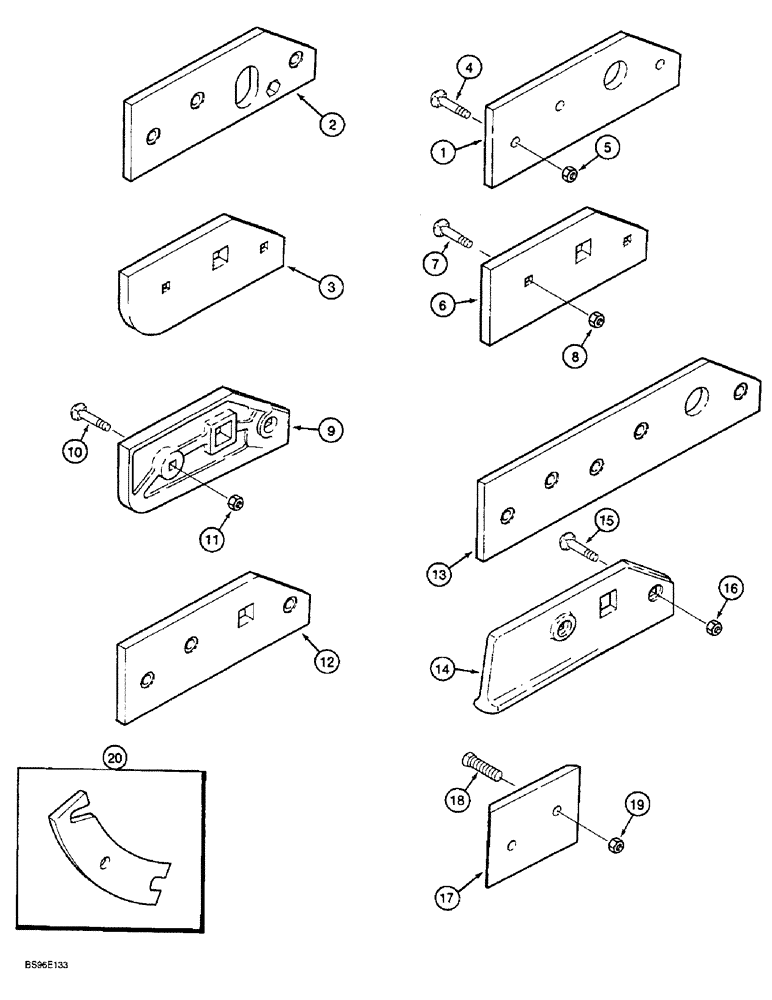

Запчасти Case IH HSCXN (9-78) - LANDSIDES, SUPER CHIEF AND TERRA FLOW

1

1980672C2

LARGE PLATE

LANDSIDE, standard, right hand, front, see note

1шт.

1

1980671C2

LARGE PLATE

LANDSIDE, standard, left hand, front, not illustrated, see note

1шт.

2

1980514C1

LARGE PLATE

LANDSIDE, special, right hand, used with John Deere and Massey Fergusson conversion bottom assemblies, see note

1шт.

2

1980515C2

LARGE PLATE

LANDSIDE, special, left hand, used with John Deere and Massey Fergusson conversion bottom assemblies, not illustrated, see not

1шт.

3

522342R2

LANDSIDE

cast, right hand, front, order 1980672C2 (ref 1)

1шт.

3

464592R1

LANDSIDE

special, left hand, front, not illustrated, order 1980671C2 (ref 1)

1шт.

4

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT, plow, 7/16 x 1-1/2

2шт.

5

429-107

NUT,7/16"-14, G8

2шт.

6

489465R1

LANDSIDE

steel, right hand, front, order 1980672C2 (ref 1)

1шт.

6

542417R1

LANDSIDE

steel, left hand, front, not illustrated, order 1980671C2 (ref 1)

1шт.

7

62178C1

PLOW BOLT

BOLT, plow, 7/16 x 1-3/4, 8

1шт.

7

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT, plow, 7/16 x 1-1/2

1шт.

8

429-107

NUT,7/16"-14, G8

1шт.

9

484912R2

LARGE PLATE

LANDSIDE, thick cast, right hand, front, order 1980672C2 (ref 1), 59058C2 (ref 17)

1шт.

10

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8

1шт.

10

62178C1

PLOW BOLT

BOLT, plow, 7/16 x 1-3/4, 8

1шт.

11

429-107

NUT,7/16"-14, G8

1шт.

12

59057C1

LANDSIDE

standard padded, front, two-piece, for left hand replacement order 1980671C2 and 1980947C2 pad, for right hand replacement order 1980672C2 and 59058C2 pad, see note

1шт.

13

526777R3

LANDSIDE

dual pads, right hand, rear, see note

1шт.

NOTE- LANDSIDES REF#13 ARE 516.3MM LONG.

1шт.

13

464594R2

LANDSIDE

dual pads, left hand, rear, not illustrated, see note

1шт.

14

522343R2

LANDSIDE

cast rib, right hand, rear

1шт.

15

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT, plow, 7/16 x 1-1/2

2шт.

16

429-107

NUT,7/16"-14, G8

2шт.

17

59058C2

PAD

wear, right hand

1шт.

17

1980947C2

PAD

wear, left hand, not illustrated

1шт.

18

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT, special, 7/16 x 1-3/32

1шт.

18

59056C3

PLOW BOLT

BOLT, special, 7/16 x 2

1шт.

19

429-107

NUT,7/16"-14, G8

1шт.

20

491899R1

SHIM

use when severe overcutting is encountered, beam

1шт.
