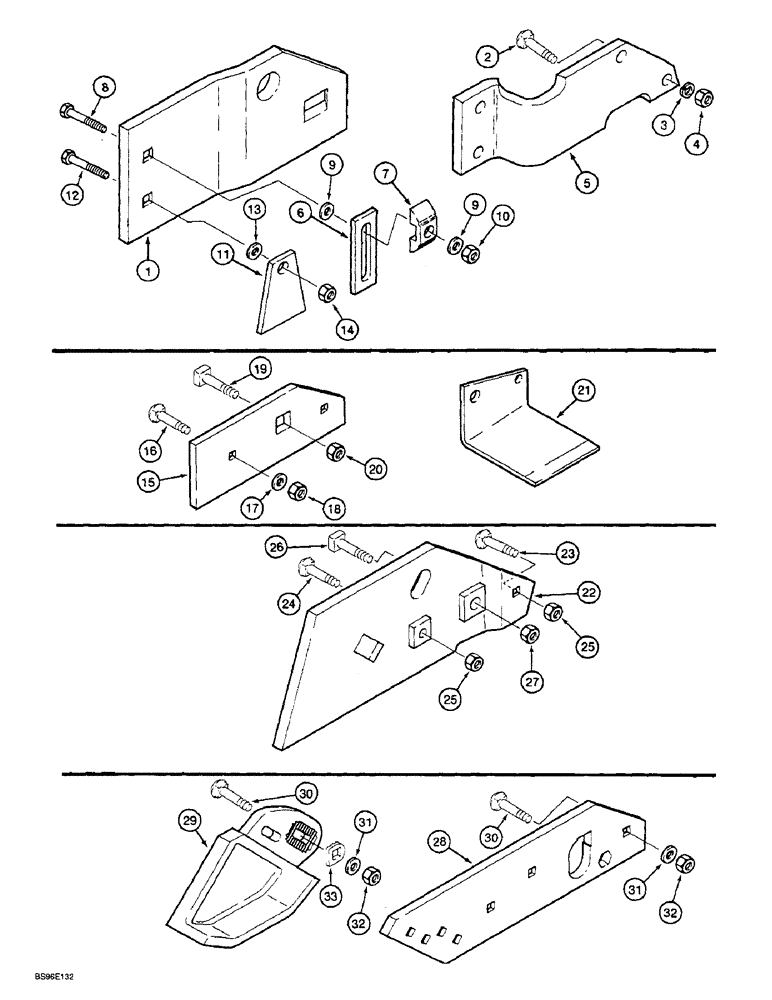

Запчасти Case IH HSCXN (9-72) - LANDSIDES, SUPER CHIEF, SPECIAL LANDSIDES, ADJUSTABLE WIDE LANDSIDES

1

543693R1

LANDSIDE

right hand, front, wide, heavy duty adjustable, large, 15.1" long, 7" tall

1шт.

1

543321R1

LANDSIDE

left hand, rear, wide, heavy duty adjustable, large, 23.2" long, 7" tall, not illustrated

1шт.

1

543322R1

LANDSIDE

right hand, rear, wide, heavy duty adjustable, large, 23.2" long, 7" tall, not illustrated

1шт.

1

543692R1

LANDSIDE

left hand, front, wide, heavy duty adjustable, large, 15.1" long, 7" tall, not illustrated

1шт.

2

419-21048

PLOW BOLT,#3, 5/8" - 11 x 3", Gr 5

BOLT, plow, 5/8 x 3

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

425-1010

NUT,5/8"-11, G5

2шт.

5

543325R1

SUPPORT

BRACE, landside, right hand

1шт.

5

543324R1

SUPPORT

BRACE, landside, left hand, not illustrated

1шт.

6

490435R1

GUIDE

CLIP

3шт.

7

543323R1

RETAINER

BLOCK

1шт.

8

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

1шт.

8

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3", 8

1шт.

9

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

2шт.

10

429-1110

NUT,5/8"-18, G8

1шт.

11

131925C1

STIFFENER

GUSSET

1шт.

12

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

1шт.

12

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3", 8

1шт.

13

524443R1

WASHER,0.66" ID x 1.25" OD x 0.19" Thk

21/32 x 1-1/4 x 3/16

1шт.

14

429-1110

NUT,5/8"-18, G8

1шт.

15

492353R1

LANDSIDE

special, bottom stabilizer

1шт.

16

62178C1

PLOW BOLT

BOLT, plow, 7/16 x 1-3/4, 8, landslide bottom stabilizer

2шт.

17

495-71047

WASHER,7/16"

15/32 x 1-15/32 x 3/32, landslide bottom stabilizer

2шт.

18

429-107

NUT,7/16"-14, G8

Landslide bottom stabilizer 7/16"-14, G8

1шт.

19

541351R2

BOLT

BOLT, special, 5/8 NF x 3, not national fine thread, landslide bottom stabilizer

1шт.

20

429-1110

NUT,5/8"-18, G8

Landslide bottom stabilizer 5/8"-18, G8

1шт.

Is a national fine nut and won't work on the item #19 bolt-- order 429-1010 nut instead

1шт.

21

492354R1

STABILIZER

bottom, landslide

1шт.

22

490422R1

LANDSIDE

right hand rear, wide

1шт.

23

62178C1

PLOW BOLT

BOLT, plow, 7/16 x 1-3/4, 8, wide landslide

1шт.

24

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8, wide landslide

1шт.

25

429-107

NUT,7/16"-14, G8

Wide landslide 7/16"-14, G8

2шт.

26

541351R2

BOLT

BOLT, special, 5/8 NF x 3, wide landslide

1шт.

27

429-1110

NUT,5/8"-18, G8

Wide landslide 5/8"-18, G8

1шт.

28

523842R4

LANDSIDE

special, right hand rear, see note, wide

1шт.

28

464593R2

LANDSIDE

special, left hand rear, not illustrated, see note, wide

1шт.

29

519347R3

HEEL

adjustable, right hand, wide landslide

1шт.

29

519446R3

HEEL

adjustable, left hand, not illustrated, wide landslide

1шт.

30

420-3724

CARRIAGE BOLT,#3, 7/16" - 14 x 1 1/2", Gr 8

BOLT, plow, 7/16 x 1-1/2, wide landslide

1шт.

30

62178C1

PLOW BOLT

BOLT, plow, 7/16 x 1-3/4, 8, wide landslide

1шт.

30

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8, wide landslide

1шт.

31

495-81013

WASHER,.469" x 1 3/4" x .120"

Wide landslide .469" x 1 3/4" x .120"

1шт.

31

495-81009

WASHER,.469" x 1" x .120"

15/32 x 1 x 1/8, wide landslide

1шт.

32

429-107

NUT,7/16"-14, G8

Wide landslide 7/16"-14, G8

4шт.

33

484BA

WASHER

WASHER, special, wide landslide

1шт.
