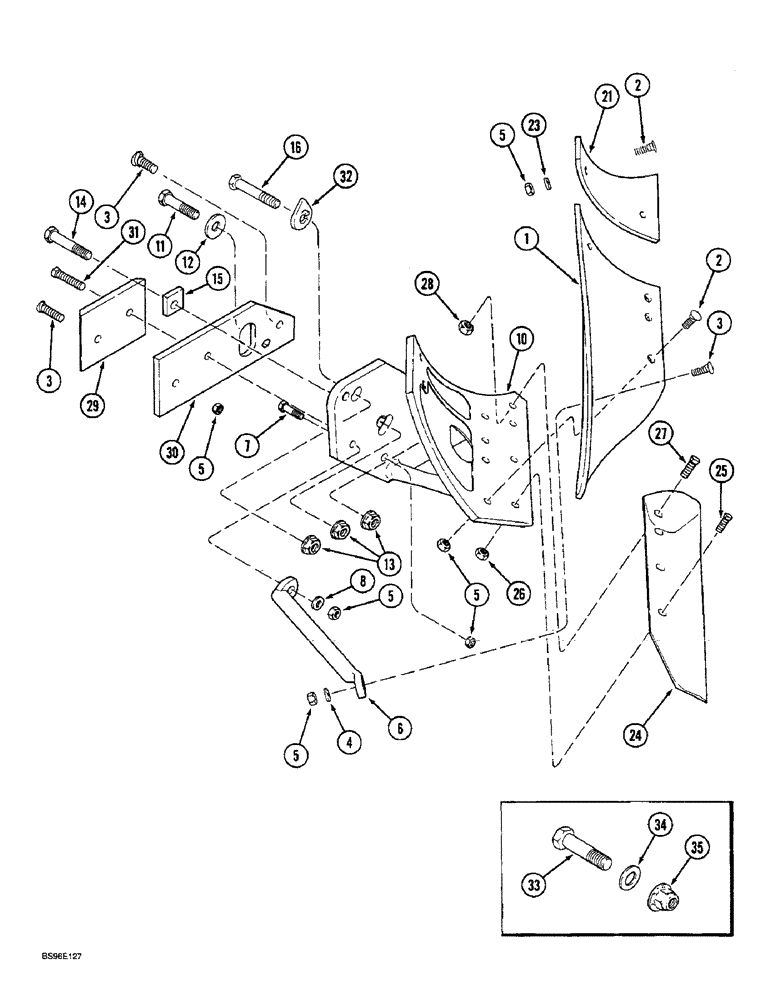

Запчасти Case IH HSCXN (9-44) - BOTTOM ASSEMBLY, MARKETING CONVERSION, MASSEY FERGUSON PLOWS

1986409C3

BOTTOM ASSY, moldboard, right hand, consists of 1 - 35, except left hand items, not available as an assembly, order component parts below, see note

1шт.

1986410C3

BOTTOM ASSY, moldboard, left hand, consists of 1 - 35, except right hand items, not available as an assembly, order component parts below, see note

1шт.

1

179314A1

MOLDBOARD

high speed, diamond finish, right hand, (HSCXN)

1шт.

1

179315A1

MOLDBOARD

high speed, diamond finish, left hand, (HSCXN), not illustrated

1шт.

2

179324A1

BOLT

BOLT, special, 7/16 x 32 mm

4шт.

3

179323A1

BOLT

BOLT, special, 7/16 x 44 mm

3шт.

4

495-81011

WASHER,0.47" ID x 1.25" OD x 0.12" Thk

15/32 x 1-1/4 x 1/8

1шт.

5

429-107

NUT,7/16"-14, G8

8шт.

6

132002C1

BRACE

moldboard, right hand frog

1шт.

6

1284102C1

SUPPORT

BRACE, moldboard, left hand frog, not illustrated

1шт.

7

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2, 8

1шт.

8

495-81009

WASHER,.469" x 1" x .120"

15/32 x 1 x 1/8

2шт.

10

1980945C2

FROG, SADDLE FROG

FROG, moldboard, right hand, allows the use of super chief bottom parts, on Massey Fergusson plows, with three hole beams

1шт.

10

1980946C1

FROG, SADDLE FROG

FROG, moldboard, left hand, allows the use of super chief bottom parts, on Massey Fergusson plows, with three hole beams, not illustrated

1шт.

11

426-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 8

5/8 x 3, 8

1шт.

12

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

3шт.

13

1256884C1

NUT

flange, special, 5/8, 8

3шт.

14

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

1шт.

15

58994C1

PLATE,SMALL SQUARE

BLOCK, landside stop

1шт.

16

426-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 8

5/8 x 3-3/4, 8

1шт.

21

179318A1

SHIN

diamond finish solid steel, right hand

1шт.

21

179319A1

SHIN

SHIN, diamond finish solid steel, left hand, not illustrated

1шт.

23

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

15/32 x 1 x 3/64

2шт.

24

463238R2

SHARE

right hand, full cut, 18 inch (457 mm) upset

1шт.

24

464583R2

SHARE

left hand, full cut, 18 inch (457 mm) upset, not illustrated

1шт.

25

463988R41

PLOW BOLT

BOLT ASSY, left hand threads, includes 26, 7/16 x 1-3/16

3шт.

26

125-10006

NUT,7/16"-14, G5, LH

1шт.

27

463989R41

BOLT

ASSY, left hand threads, includes 28, 1/2 x 1-17/64

1шт.

28

470916R1

SPECIAL NUT

1/2

1шт.

29

59058C2

PAD

wear, landside, right hand

1шт.

29

1980947C2

PAD

wear, landside, left hand, not illustrated

1шт.

30

1980514C1

LARGE PLATE

LANDSIDE, special, right hand

1шт.

30

1980515C2

LARGE PLATE

LANDSIDE, special, left hand, not illustrated

1шт.

31

59056C3

PLOW BOLT

BOLT, special, 7/16 x 2

1шт.

32

1256864C2

WASHER

1шт.

33

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

2шт.

34

496-21053

WASHER,17/32" x 1 1/16" x .134"

17/32 x 1-1/16 x 1/8

2шт.

35

186852C1

FLANGE NUT,Hex, 1/2"-13, Lock

LOCKNUT, 1/2, 8

2шт.
