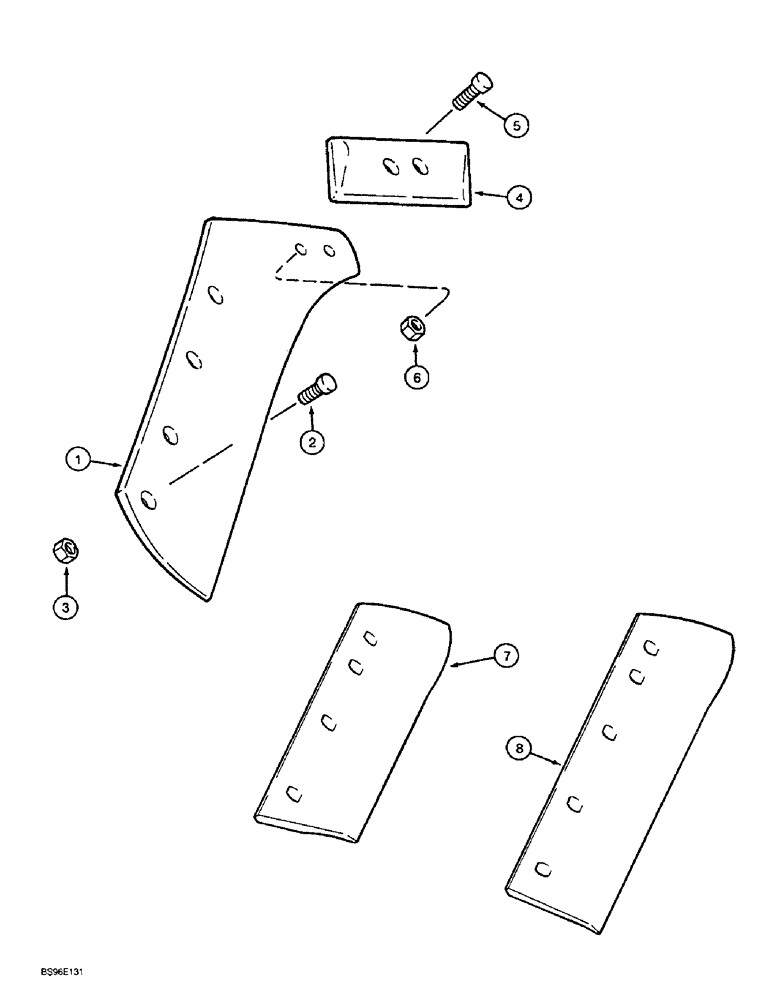

Запчасти Case IH HSCXK (9-68) - SHARES, MOLDBOARD PLOW, EUROPEAN STYLE, HSES HIGH SPEED EUROPEAN STYLE WITH REPLACEABLE POINT

1

1986180C1

PLOUGHSHARE

SHARE, right hand, 14 inch (356 mm) curved, 4 bolt

1шт.

1

1986181C1

PLOUGHSHARE

SHARE, right hand, 16 inch (406 mm) curved, 5 bolt

1шт.

1

1986318C1

PLOUGHSHARE

SHARE, right hand, 18 inch (457 mm) curved, 5 bolt

1шт.

1

112668A1

SHARE

right hand, 16 inch (406 mm) curved, 5 bolt, used for plowing over 9 inch depth

1шт.

2

1995838C1

PLOW BOLT

BOLT, special, M14 x 32

1шт.

3

829-1414

NUT,M14, Cl 10

M14, 10

1шт.

4

1986182C1

POINT

1шт.

5

1995842C1

BOLT

BOLT, special, M12 x 32

1шт.

6

829-1412

NUT,M12, Cl 10.9

1шт.

7

1337607C1

PLOUGHSHARE

SHARE, right hand, narrow cut, 14 inch (356 mm) upset, 4 bolt, replaces T57748, no longer available, order 179347A1 (ref 8)

1шт.

8

1337608C1

PLOUGHSHARE

SHARE, right hand, full cut, 14 inch (356 mm) overcut upset, 4 bolt, replaces T57560, T57754, T63191, T63193

1шт.

8

179347A1

PLOUGHSHARE

SHARE, right hand, full cut, 16 inch (406 mm) upset, 4 bolt, replaces T57561, T57755, T58108, T58111, T63194, T63197, 1337609C1

1шт.

8

179348A1

PLOUGHSHARE

SHARE, right hand, full cut, 18 inch (457 mm) upset, 5 bolt, illustrated, replaces T63097, T57562, T57563, T57756, T58109, T63202, T63133, T58112, T58110, 1337610C2

1шт.
