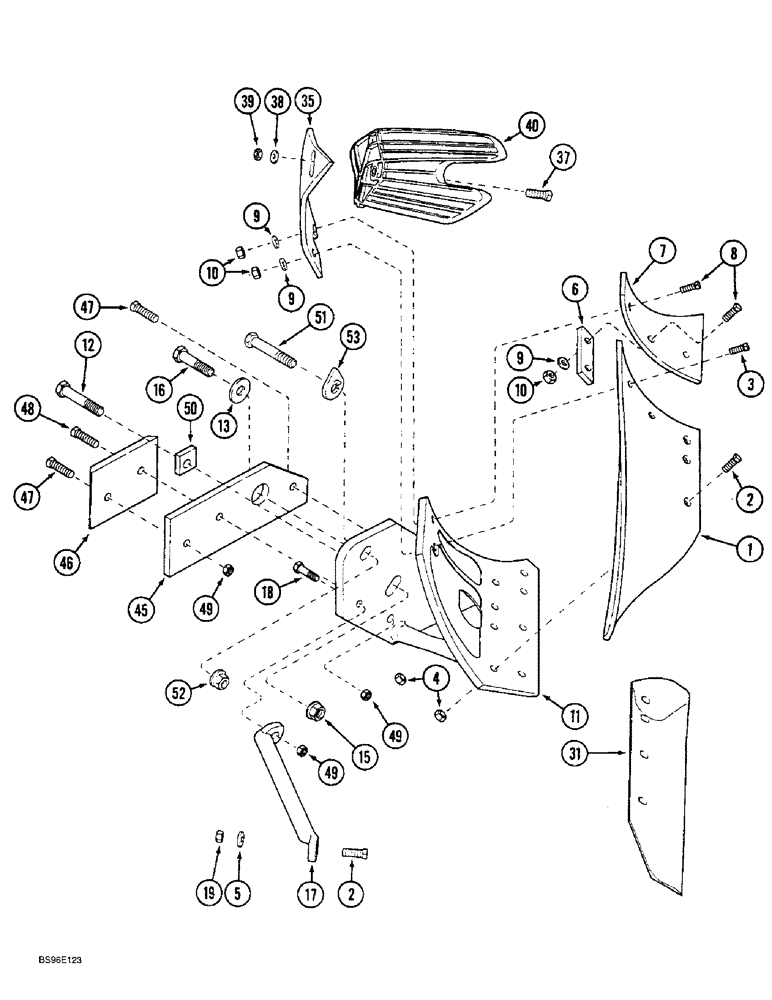

Запчасти Case IH HSCU (9-14) - BOTTOM ASSEMBLY, MOLDBOARD (HSCU), HSCU SUPER CHIEF HEAVY DUTY WITH DEEP TILLAGE, SUPER CHIEF HSCU

1

491634R1

MOLDBOARD

deep tillage, right hand

1шт.

1

491633R1

MOLDBOARD

deep tillage, left hand, not illustrated

1шт.

2

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

BOLT, plow, 7/16 x 1-1/4, 8

5шт.

3

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8

1шт.

4

429-107

NUT,7/16"-14, G8

6шт.

5

495-81012

WASHER,0.47" ID x 1.25" OD x 0.18" Thk

15/32 x 1-1/4 x 11/64

2шт.

6

491632R1

BAR

STRAP

1шт.

7

491631R1

EXTENSION

SHIN, right hand

1шт.

7

491630R1

EXTENSION

SHIN, left hand, not illustrated

1шт.

8

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

BOLT, plow, 7/16 x 1-1/4, 8

3шт.

9

495-81158

WASHER,0.47" ID x 1" OD x 0.06" Thk

15/32 x 1 x 3/64

3шт.

10

429-107

NUT,7/16"-14, G8

3шт.

11

224130C2

FROG, SADDLE FROG

FROG, moldboard, right hand

1шт.

11

1284103C2

SUPPORT

FROG, moldboard, left hand, not illustrated

1шт.

12

426-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8

2шт.

13

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

1шт.

15

1256884C1

NUT

flange, special, 5/8, 8

2шт.

16

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

1шт.

17

522318R2

SUPPORT

BRACE, moldboard, right hand frog

1шт.

17

464596R2

SUPPORT

BRACE, moldboard, left hand frog, not illustrated

1шт.

18

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2, 8

1шт.

19

429-107

NUT,7/16"-14, G8

1шт.

31

REF

INSTRUCTION

SHARE, moldboard, see pages 9-62 - 9-66

1шт.

35

REF

INSTRUCTION

BRACKET, trash plate, right hand, see page 9-52

1шт.

37

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, plow, 3/8 x 1-1/2

2шт.

38

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

13/32 x 1 x 7/64"

2шт.

39

425-106

NUT,3/8"-16, Cl 5

2шт.

40

REF

INSTRUCTION

PLATE, trash, see page 9-52

1шт.

45

REF

INSTRUCTION

LANDSIDE, standard, right hand, see pages 9-72 - 9-76

1шт.

46

REF

INSTRUCTION

PAD, wear, landside, see page 9-82

2шт.

47

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT, special, 7/16 x 1-3/32

2шт.

48

59056C3

PLOW BOLT

BOLT, special, 7/16 x 2

1шт.

49

429-107

NUT,7/16"-14, G8

3шт.

50

58994C1

PLATE,SMALL SQUARE

BLOCK, landside stop

1шт.

51

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

52

1256884C1

NUT

flange, special, 5/8, 8

1шт.

53

1256864C2

WASHER

1шт.

The part number for the serrated washer that goes on bolt number 2 is a 490663r1

1шт.

JDS CAM 12/19/97

1шт.
