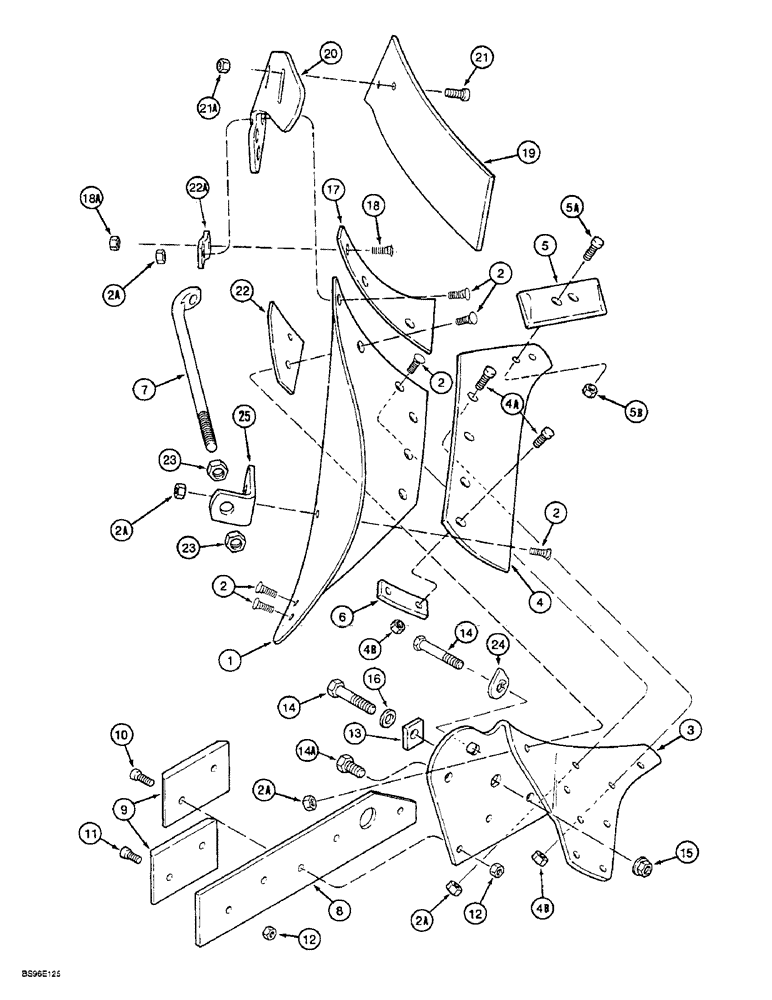

Запчасти Case IH HSCS (9-24) - BOTTOM ASSEMBLY, MOLDBOARD (HSES), HSES HIGH SPEED EUROPEAN
№
Артикул
Название
Примечание
Количество
1
1986183C1
MOLDBOARD
high speed european style, (HSES), 20 in (508 mm)
1шт.
2
1995840C1
PLOW BOLT
BOLT, special, M12 x 35
11шт.
2a
829-1412
NUT,M12, Cl 10.9
11шт.
3
1985932C2
FROG, SADDLE FROG
FROG, plow
1шт.
4
REF
INSTRUCTION
SHARE, right hand, curved, see pages 9-68, 9-70
1шт.
4a
1995838C1
PLOW BOLT
BOLT, special, M14 x 32
4шт.
4b
829-1414
NUT,M14, Cl 10
M14, 10
4шт.
5
REF
INSTRUCTION
POINT, share, reversible, see page 9-68
1шт.
5a
1995842C1
BOLT
BOLT, special, M12 x 32
2шт.
5b
829-1412
NUT,M12, Cl 10.9
2шт.
6
1995843C1
SUPPORT
BRACKET, share, not used with 14 inch (356 mm) share
1шт.
7
1986186C1
SUPPORT
BRACE
1шт.
8
REF
INSTRUCTION
LANDSIDE, long, right hand, see pages 9-72 - 9-76
1шт.
9
REF
INSTRUCTION
PAD, wear, landside, see page 9-82
2шт.
10
59055C3
PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm
BOLT, special, 7/16 x 1-3/32
3шт.
11
131972C2
BOLT,Spcl Hd, 7/16" - 14 x 15mm Thd RH
BOLT, special, 7/16 x 1-3/16
2шт.
12
429-107
NUT,7/16"-14, G8
5шт.
13
58994C1
PLATE,SMALL SQUARE
BLOCK, landside stop
1шт.
14a
426-1040
BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 8
1шт.
15
1256884C1
NUT
flange, special, 5/8, 8
3шт.
16
496-21066
WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk
21/32 x 1-5/16 x 5/32
3шт.
17
1986185C1
EXTENSION
SHIN, moldboard
1шт.
18
1995841C1
PLOW BOLT
BOLT, special, M12 x 32
3шт.
18a
829-1412
NUT,M12, Cl 10.9
3шт.
REF
INSTRUCTION
KIT, trash plate, consists of 19 - 21A, see pages 9-52, 9-54
1шт.
19
REF
INSTRUCTION
PLATE, trash, see pages 9-52, 9-54
1шт.
20
REF
INSTRUCTION
BRACKET, see pages 9-52, 9-54
1шт.
21
1995841C1
PLOW BOLT
BOLT, special, see pages 9-52, 9-54, M12 x 32
2шт.
21a
829-1412
NUT,M12, Cl 10.9
2шт.
22
234953A1
FASTENER
BRACKET, offset tie
1шт.
22a
234954A1
FASTENER
BRACKET, flat tie
1шт.
23
829-1420
NUT,M20, Cl 10
2шт.
24
1256864C2
WASHER
used with 1985932C2 frog
1шт.
25
126045A1
BRACKET
1шт.
Выбрано товаров: 35
