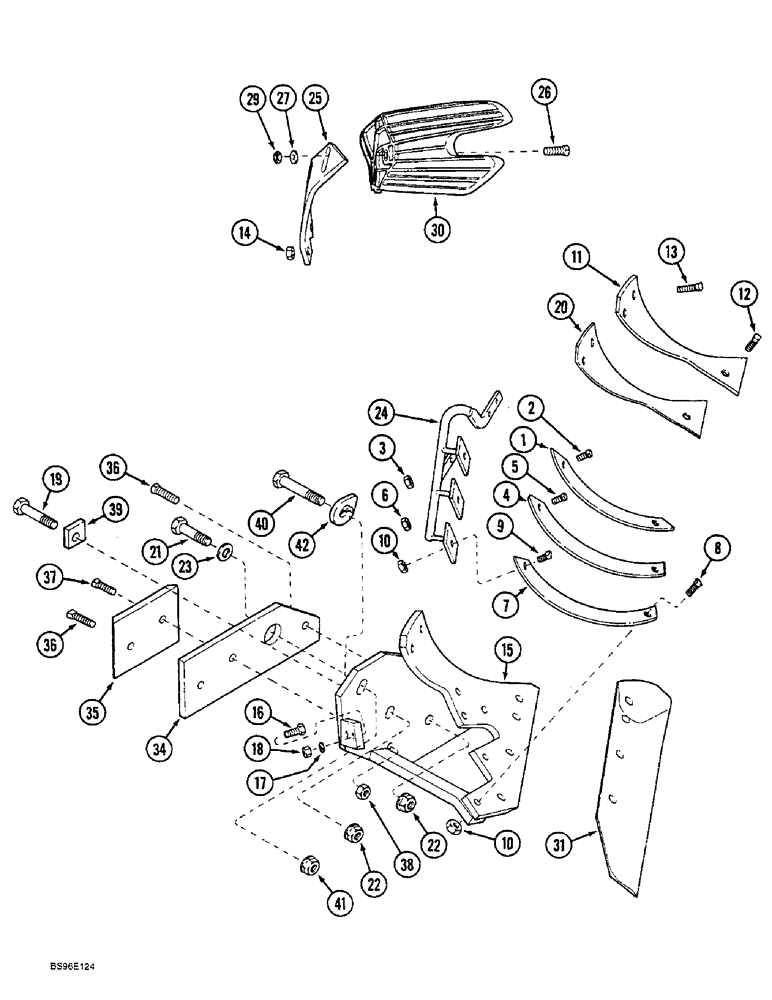

Запчасти Case IH HSCS (9-18) - BOTTOM ASSEMBLY, MOLDBOARD (HSCS), HSCS SUPER CHIEF HEAVY DUTY SLAT

1

488429R11

LARGE PLATE

SLAT ASSY, no. 1, right hand, includes 2, 3

1шт.

1

541897R11

SUPPORT

SLAT ASSY, no. 1, left hand, includes 2, 3, not illustrated

1шт.

2

4203720

BOLT, plow, 7/16 x 1-1/4, 8

2шт.

3

429-107

NUT,7/16"-14, G8

2шт.

4

488430R11

LARGE PLATE

SLAT ASSY, no. 2, right hand, includes 5, 6

1шт.

4

541898R11

SUPPORT

SLAT ASSY, no. 2, left hand, includes 5, 6, not illustrated

1шт.

5

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

BOLT, plow, 7/16 x 1-1/4, 8

2шт.

6

429-107

NUT,7/16"-14, G8

2шт.

7

488431R11

LARGE PLATE

SLAT ASSY, no. 3, right hand, includes 8 - 10

1шт.

7

541899R11

SUPPORT

SLAT ASSY, no. 3, left hand, includes 8 - 10, not illustrated

1шт.

8

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

BOLT, plow, 7/16 x 1-1/4, 8

1шт.

9

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8

1шт.

10

429-107

NUT,7/16"-14, G8

2шт.

11

488428R11

LARGE PLATE

SHIN ASSY, moldboard, right hand, includes 12 - 14

1шт.

11

541896R11

EXTENSION

SHIN ASSY, moldboard, left hand, includes 12 - 14, not illustrated

1шт.

12

420-3720

BOLT,#3, 7/16" - 14 x 1 1/4", Gr 8

BOLT, plow, 7/16 x 1-1/4, 8

1шт.

13

62179C1

PLOW BOLT

BOLT, plow, 7/16 x 2-1/8, 8

2шт.

14

429-107

NUT,7/16"-14, G8

3шт.

15

488424R1

FROG, SADDLE FROG

FROG ASSY, right hand, includes 16 - 19

1шт.

15

541906R1

FROG, SADDLE FROG

FROG ASSY, left hand, includes 16 - 19, not illustrated

1шт.

16

426-724

BOLT,Hex, 7/16" - 14 x 1-1/2", Gr 8

7/16 x 1-1/2, 8

2шт.

17

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

18

429-1110

NUT,5/8"-18, G8

3шт.

19

428-1048

BOLT,Hex, 5/8" - 18 x 3", Gr 8

5/8 NF x 3, 8

1шт.

20

491399R1

BLOCK

SHIM

1шт.

21

426-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 8

5/8 x 3-1/2, 8

1шт.

22

1256884C1

NUT

flange, special, 5/8, 8

3шт.

23

496-21066

WASHER,16.6mm ID x 33.5mm OD x 3.8mm Thk

21/32 x 1-5/16 x 5/32

2шт.

24

488432R1

SUPPORT

slat, right hand

1шт.

24

541909R1

SUPPORT

slat, left hand, not illustrated

1шт.

25

REF

INSTRUCTION

BRACKET, trash plate, see page 9-52

1шт.

26

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, plow, 3/8 x 1-1/2

2шт.

27

495-81136

WASHER,10.31mm ID x 25.4mm OD x 3.81mm Thk

13/32 x 1 x 7/64

2шт.

29

425-106

NUT,3/8"-16, Cl 5

2шт.

30

REF

INSTRUCTION

PLATE, trash, right hand, see page 9-52

1шт.

31

REF

INSTRUCTION

SHARE, moldboard, see pages 9-56 - 9-66

1шт.

34

REF

INSTRUCTION

LANDSIDE, standard, right hand, see pages 9-72 - 9-76

1шт.

35

REF

INSTRUCTION

PAD, wear, landside, see page 9-82

2шт.

36

59055C3

PLOW BOLT,Spcl Hd, 7/16" - 14 x 28mm

BOLT, special, 7/16 x 1-3/32

2шт.

37

59056C3

PLOW BOLT

BOLT, special, 7/16 x 2

1шт.

38

429-107

NUT,7/16"-14, G8

3шт.

39

58994C1

PLATE,SMALL SQUARE

BLOCK, landside stop

1шт.

40

426-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 8

1шт.

41

1256884C1

NUT

flange, special, 5/8, 8

1шт.

42

1256864C2

WASHER

1шт.
