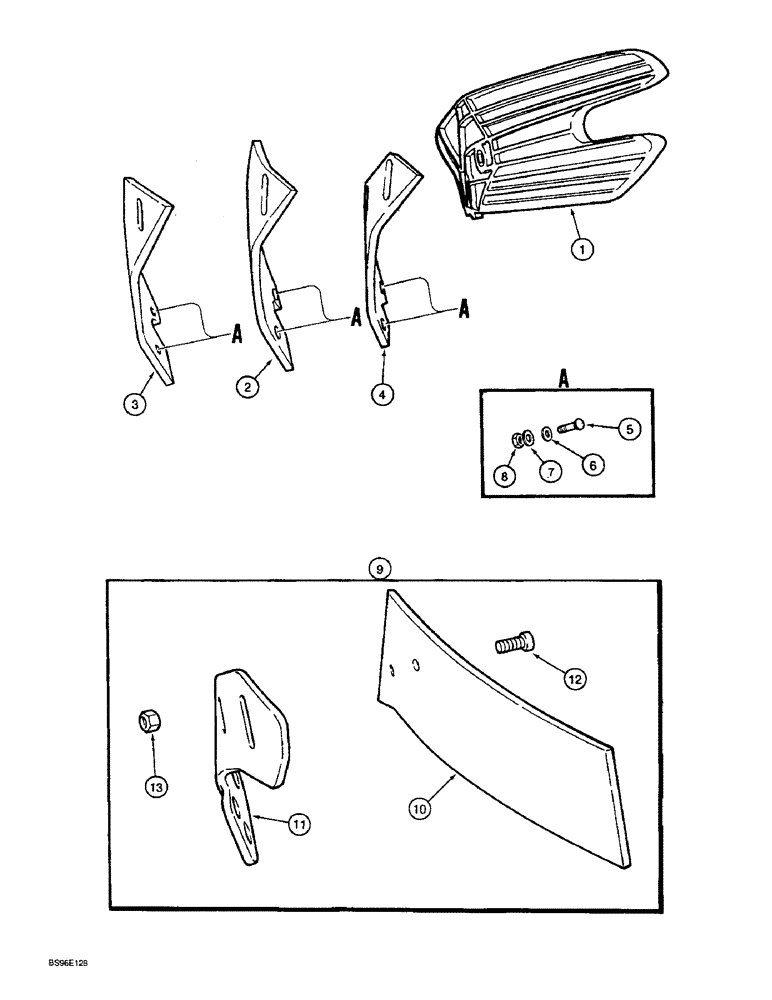

Запчасти Case IH HSCS (9-52) - TRASH PLATES AND BRACKETS

1

464719R2

LARGE PLATE

PLATE, steel, right hand

1шт.

1

476811R1

PLATE

plastic, right hand

1шт.

1

467817R2

LARGE PLATE

PLATE, steel, left hand, not illustrated

1шт.

1

483682R1

PLATE

plastic, left hand, not illustrated

1шт.

2

484688R1

BRACKET

right hand

1шт.

2

484687R1

SUPPORT ASSY.

BRACKET, left hand, not illustrated

1шт.

3

1985992C1

SUPPORT

BRACKET, special, right hand, see note

1шт.

3

1985991C1

SUPPORT

BRACKET, special, left hand, see note, not illustrated

1шт.

4

542147R1

SUPPORT

BRACKET, right hand, (HSCS slat bottoms)

1шт.

5

418-3624

CARRIAGE BOLT,#3, 3/8" - 16 x 1 1/2", Gr 2

BOLT, plow, 3/8 x 1-1/2

2шт.

6

495-81135

WASHER,10.31mm ID x 25.4mm OD x 3.4mm Thk

13/32 x 1 x 7/64"

2шт.

7

495-81009

WASHER,.469" x 1" x .120"

15/32 x 1 x 1/8

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

1986315C1

LARGE PLATE

KIT, trash plate, (HSES bottoms), consists of 10 - 13

1шт.

10

1986316C1

LARGE PLATE

PLATE

1шт.

11

1986317C1

SUPPORT

BRACKET

1шт.

12

1995841C1

PLOW BOLT

BOLT, special, M12 x 32

2шт.

13

829-1412

NUT,M12, Cl 10.9

2шт.
